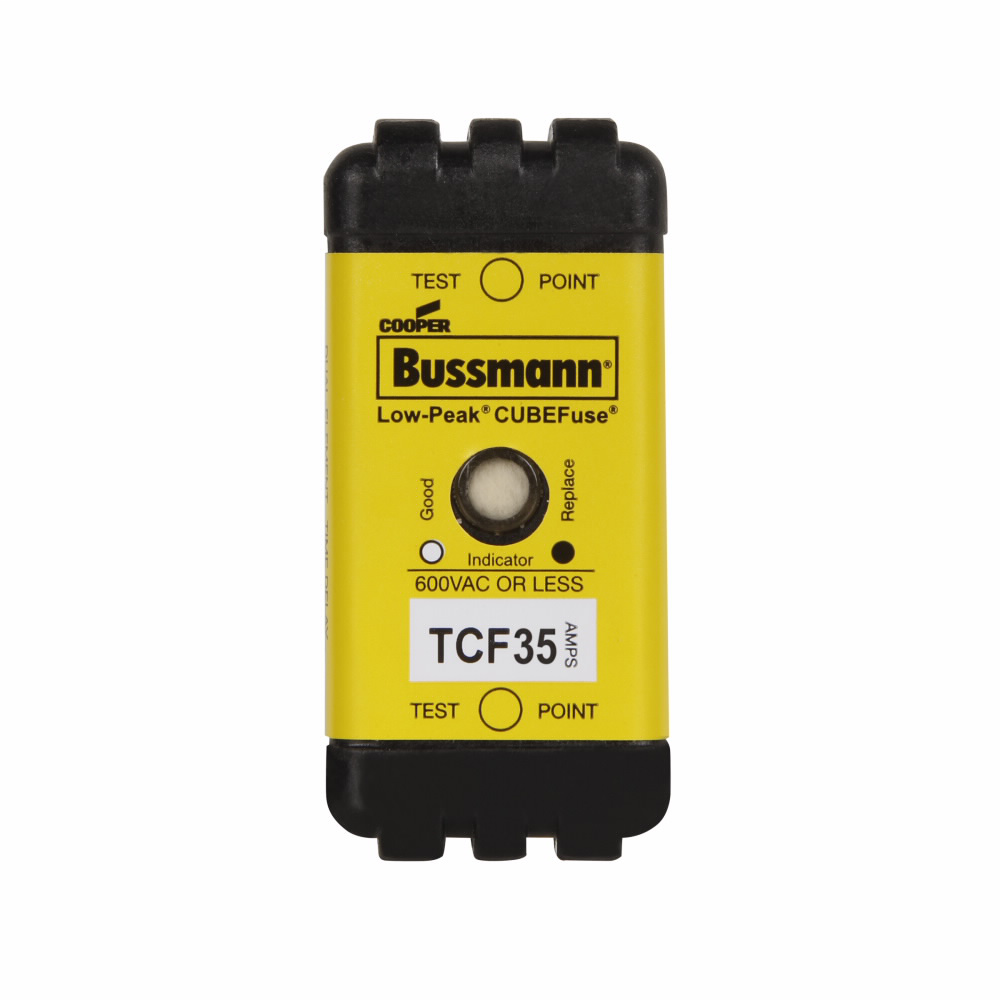

Bussmann Series TCF35 35 Amp Cube Fuse
$95.97/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper / Bussman
Mfg Catalog # TCF35
North Coast Part # 423411

Specifications

  • Fuse Indicator: With Indicator
  • Special Features: Finger safe
  • Interrupt Rating: 300 kAIC at 600 Vac, 100 kAIC at 300 Vdc
  • Number Of Elements: Dual
  • Color: Black body
  • Connection: Blade End
  • Response Time: 10 s at 500%
  • Material Type: Glass filled PES
  • Amperage Rating: 35A
  • Frequency Rating Maximum: 60 HZ
  • Mounting: 35 mm Din Rail, chassis
  • Fuse Type: Time-Delay, class CF
  • Type: Time-delay fuse
  • Used With: TCFH60N, CCP2-3-60CF
  • Amperage Rating Numeric: 35 A
  • Frequency Rating Minimum: 50 HZ
  • Class: Class CF
  • Voltage Rating: 600 Vac, 300 Vdc
  • Application: Electrical panelboards, industrial control, machinery disconnects, required finger safe systems
  • Voltage Rating Numeric: 600 V
  • Packaging Type: Standard

General

  • UPC: 051712615044
  • EAN: 5027590249751
  • Product Length/Depth: 2.13 IN
  • Product Height: 1.9 IN
  • Product Width: 1 IN
  • Product Weight: .17 LB
  • Warranty: Not Applicable
  • Compliances: CE Marked
  • Certifications: UL Listed

Overview

UPC 05171261504
GTiN 00051712615044
Type Fuse
Material Glass Filled PES
Applications Ind Facilities & Factories - Facility: Safety and Security SystemsDatacenters - Facilities: Power DistributionCommercial / Institutional Buildings / Structures - Critical PowerInd Facilities & Factories - Facility: Power Distribution and ControlStationary Machinery and Equipment Outside Factory - HVAC
Family Brand Name Bussmann Series
Response Time 10 S at 500%
Interrupt Rating 300 kAIC at 600 Vac, 100 kAIC at 300 Vdc
Sub Brand Bussmann Series
Length 2.13 in
Color Black
Voltage 600 Volt
Mounting Type 35 mm
Height 1.9 in
Weight .17 lb
Connection Type Blade End
Amperage 35 Amp
Class Class CF
TC Connection Blade End
Blade Dimensions 2.1300 IN X 1.0000 IN X 1.9000 IN
