Manufacturer Cooper / Bussman
Mfg Catalog # TCF60RN
North Coast Part # 818667


  • Fuse Indicator: Non Indicating
  • Special Features: Finger safe
  • Interrupt Rating: 300 kAIC at 600 Vac, 100 kAIC at 300 Vdc
  • Number Of Elements: Dual
  • Color: Black body
  • Connection: Blade End
  • Response Time: 10 s at 500%
  • Material Type: Glass filled PES
  • Amperage Rating: 60A
  • Frequency Rating Maximum: 60 HZ
  • Mounting: 35 mm Din Rail, chassis
  • Fuse Type: Time-Delay, class CF
  • Type: Time-delay fuse
  • Used With: TCFH60N, CCP2-3-60CF
  • Amperage Rating Numeric: 60 A
  • Frequency Rating Minimum: 50 HZ
  • Class: Class CF
  • Voltage Rating: 600 Vac, 300 Vdc
  • Application: Electrical panelboards, industrial control, machinery disconnects, required finger safe systems
  • Voltage Rating Numeric: 600 V
  • Packaging Type: Standard


  • UPC: 051712222556
  • Product Length/Depth: 2.13 IN
  • Product Height: 1.9 IN
  • Product Width: 1 IN
  • Product Weight: .17 LB
  • Warranty: Not Applicable
  • Compliances: CE Marked
  • Certifications: UL Listed


UPC 05171222255

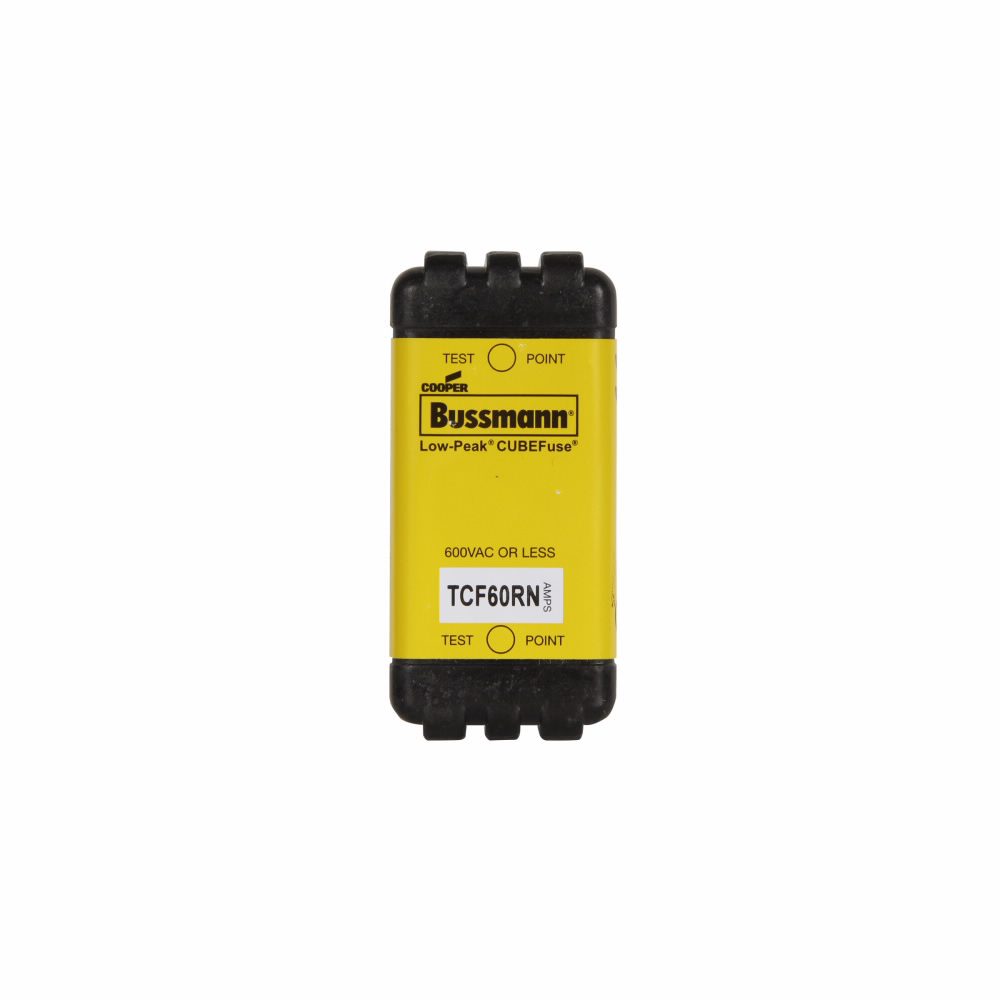

Item Long Description Eaton Bussmann series TCF fuse, Finger safe, 600 Vac/300 Vdc, 60A, 300 kAIC at 600 Vac, 100 kAIC at 300 Vdc, Non-Indicating, Time delay, inrush current withstand, Class CF, CUBEFuse, Glass filled PES
GTiN 00051712222556
Length 2.13 in
Width 1 in
Color Black
Voltage 300 Volt
Type Time-delay Fuse
Material Glass Filled PES
Applications Ind Facilities & Factories - Facility: Safety and Security SystemsDatacenters - Facilities: Power DistributionCommercial / Institutional Buildings / Structures - Critical PowerInd Facilities & Factories - Facility: Power Distribution and ControlStationary Machinery and Equipment Outside Factory - HVAC
Mounting Type 35 mm
Height 2 in
Weight .17 lb
Standard CE,CSA,UL
Connection Type Blade End
Family Brand Name Eaton
Class CF
Amperage 60 Amp
Response Time 10 S At 500%
Interrupt Rating 100 kA
Element Dual
Sub Brand Bussmann Series
TC Connection Blade End
Blade Dimensions 2.1300 IN X 1.0000 IN X 1.9000 IN
