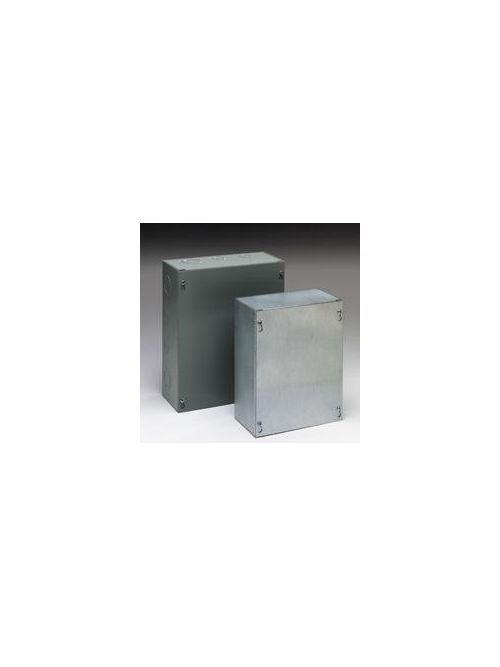

B-LINE 181210 SC SC ENC W/ KO 18X12
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$126.47/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper / Circle Alwalt
Mfg Catalog # 181210 SC
North Coast Part # 14263

Specifications

  • Special Features: Keyhole slots on cover, plated screws
  • Color: ANSI 61 gray
  • Finish Color: Painted
  • Wall Thickness: 16 gauge
  • Bottom knockouts: 5
  • Material: Carbon steel
  • Country Of Origin: US
  • Cover Type: Screw
  • Mounting: Surface
  • Mounting hole details: Thru holes
  • Top knockouts: 5
  • NEMA Rating: 1
  • Model: SC enclosure
  • Style: Medium single door
  • Side knockouts: 9

General

  • UPC: 782051227307
  • Product Length/Depth: 10 IN
  • Product Height: 18 IN
  • Product Width: 12 IN
  • Product Weight: 17.4 LB
  • Certifications: UL 50

Categories

Overview

UPC 78205122730
Family Brand Name B-Line Series
Item Long Description Eaton B-Line series Type 1 junction boxes, 18" height, 10" length, 12" width, NEMA 1, Screw cover, SC enclosure, Surface mounted, Medium single door, 9 side knockouts,5 top-bottom knockouts, Thru holes, Carbon steel
GTiN 00782051227307
Length 10 in
Size 12.00 In Width X 10.00 In Depth X 18.00 In Height
Color Gray
Type IP30,NEMA 1,Screw Cover
Material Carbon Steel
Applications COMMERCIAL ENCLOSURES,SC ENCL.-TYPE 1 SCH. A
Mounting Type Surface
Height 18 in
Weight 17.4 lb
Standard CSA C22.2,IEC 60529,UL 50
Cable Entry Knockouts
Sub Brand Electrical Enclosures
Finish GRAY
