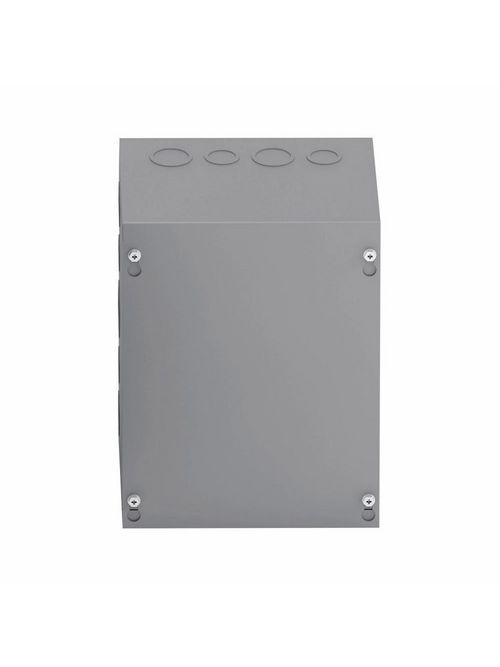

B-Line Series 886 SC 8 x 6 x 8 Inch 16 Gauge Painted Steel NEMA 1 Screw Cover Junction Box Enclosure with Knockout
$32.10/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper / Circle Alwalt
Mfg Catalog # 886 SC
North Coast Part # 219512

Specifications

  • Special Features: Keyhole slots on cover, plated screws
  • Color: ANSI 61 gray
  • Finish Color: Painted
  • Wall Thickness: 16 gauge
  • Bottom knockouts: 4
  • Material: Carbon steel
  • Country Of Origin: US
  • Cover Type: Screw
  • Mounting: Surface
  • Mounting hole details: Thru holes
  • Top knockouts: 4
  • NEMA Rating: 1
  • Model: SC enclosure
  • Style: Small single door
  • Side knockouts: 4

General

  • UPC: 782051222906
  • Product Length/Depth: 6 IN
  • Product Height: 8 IN
  • Product Width: 8 IN
  • Product Weight: 5.7 LB
  • Certifications: UL 50

Overview

UPC 78205122290
Family Brand Name B-Line Series
GTiN 00782051222906
Length 6 in
Size 8.00 In Width X 6.00 In Depth X 8.00 In Height
Color ANSI 61 Gray
Type NEMA 1, IP30, Screw Cover
Material Carbon Steel
Applications Wiring Boxes, Junction and Pull Boxes
Mounting Type Surface
Height 8 in
Weight 5.7 lb
Standard CSA C22.2,IEC 60529,UL 50
Cable Entry Knockouts
Sub Brand Electrical Enclosures
Finish GRAY
