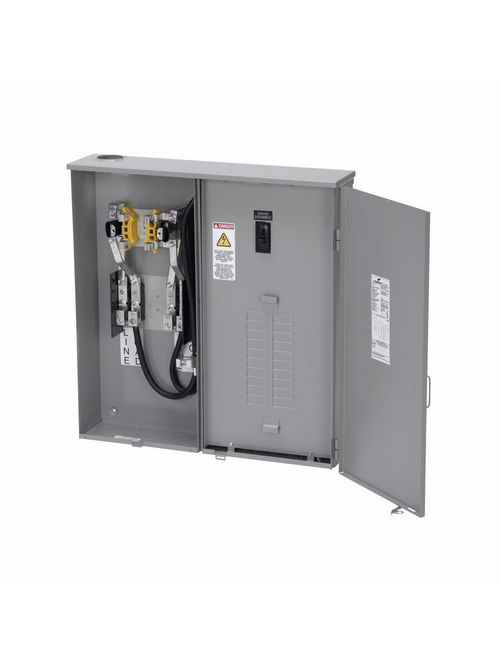

B-Line Series U224MTBL 240 Volt 200 Amp 2-Pole 1-Phase 3-Wire 4-Jaw Meter Main Load Center with Bypass
Product image thumbnail 0
Product image thumbnail 1
$4,260.80/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper / Circle Alwalt
Mfg Catalog # U224 MTBL
North Coast Part # 72883

Specifications

  • Special Features: Overhead and underground feed
  • Number of positions: 1
  • Interrupt rating: 10 kAIC
  • Number of jaws: 4
  • Material: Galvanized steel
  • Mounting method: Surface mount
  • Amperage rating: 200 A
  • Line lug size: #6-250 MCM
  • Bypass: Test block
  • Load lug size: MCB
  • Cover/Door type: Ring
  • Number of wires: 1Ø/3W
  • Finish: ANSI 61 gray paint
  • Degree of protection: 3R

General

  • UPC: 782051701388
  • Product Length/Depth: 6 IN
  • Product Height: 30 IN
  • Product Width: 27 IN
  • Product Weight: 70 LB
  • Compliances: EUSERC Approved
  • Certifications: UL

Categories

Overview

UPC 78205170138
Family Brand Name B-Line Series
GTiN 00782051701388
Length 6 in
Size 27 In Width X 6 In Depth X 30 In Height
Voltage 120/240 Volt
Type Ring,Self Contained,Test Block Bypass
Material Steel
Applications METER MAIN LOAD CENTER,TEST BLOCK BYPASS,Underground, Overhead, Watthour Meters
Mounting Type Surface
Height 30 in
Weight 70 lb
Standard UL 67
Number of Phases 1 Phase
Amperage 200 Amp
Number of Wires 3
Interrupt Rating 10 kA
Cable Entry Knockouts
Enclosure NEMA 3R
Sub Brand Metering
