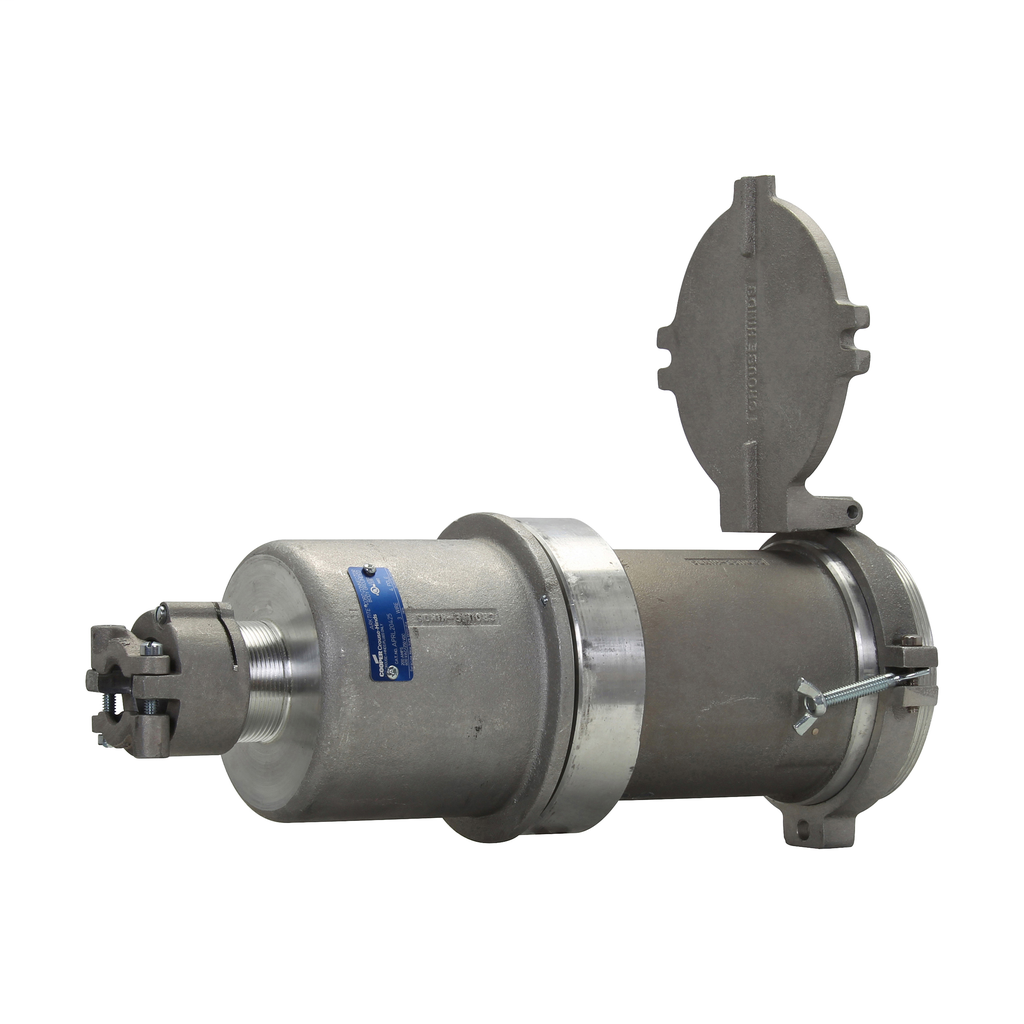

CRSH APRL20428 200A 3W4P ARKTE CONN
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$3,311.10/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper / Crouse-Hinds
Mfg Catalog # APRL20428
North Coast Part # 1351881

Specifications

  • Height: 6.75 IN
  • Length: 15.875 IN
  • Width: 6.75 IN
  • Weight: 1 LB
  • Amperage Rating: 200A
  • Voltage Rating: 600 Vac, 250 Vdc
  • Area Classification: Ordinary/Non-Hazardous Locations
  • Device Type: Connector
  • Cable Diameter: 1.875-2.500"
  • Configuration: Three-wire, four-pole
  • Frequency Rating: 50-400 Hz
  • Grounding Style: Style 2
  • Material: Copper-free aluminum
  • Termination Style: Mechanical lug
  • Wire Well Size: 0.687"

Overview

UPC 66227608691
Family Brand Name Crouse-Hinds Series
GTiN 00662276086913
Length 15.875 in
Width 6.75 in
Size 5-1/4 In Diameter X 15-7/8 In Length
Color Natural
Voltage 250 Volt
Type Pin And Sleeve
Material Copper-Free Aluminum
Applications Motor-Generator Set, Compressor, Heating and Cooling Unit, Welder, Conveyor, Lighting System, Indoor/Outdoor
Height 6.75 in
Weight 1 lb
Wire Size 1-000 AWG
Standard CSA C22.2,UL 1682,UL 1686
Frequency 50-400 Hz
Connection Type Pressure, Crimp/Solder
TC Connection Pressure, Crimp/Solder
Amperage 200 Amp
Number of Poles 4 Pole
Sub Brand Arktite
