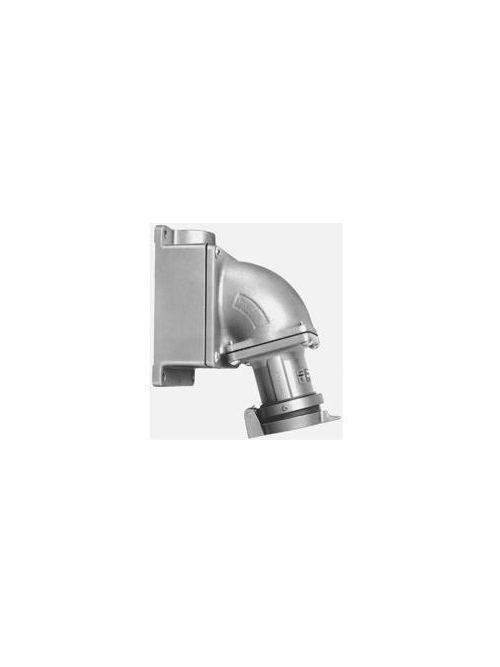

CRSH AREA10426 100A 3W4P ARKTE RCPT
$1,557.80/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper / Crouse-Hinds
Mfg Catalog # AREA10426
North Coast Part # 601064

Specifications

  • Grounding Style: Style 2
  • Trade Size: 2"
  • Configuration: Three-wire, four-pole
  • NEMA Rating: 4
  • Frequency Rating: 50-400 Hz
  • Area Classification: Ordinary/Non-Hazardous Locations
  • Material: Copper-free aluminum
  • Receptacle Style: Spring door
  • Voltage Rating: 600 Vac/250 Vdc
  • Standards Type: NEC/CEC
  • Amperage Rating: 100A

General

  • UPC: 782274041049
  • Product Length/Depth: 9.88 IN
  • Product Height: 10.5 IN
  • Product Width: 5.88 IN
  • Product Weight: 8.1 LB

Overview

UPC 78227404104
Family Brand Name Crouse-Hinds Series
GTiN 00782274041049
Length 9.88 in
Width 5.875 in
Size 5-7/8 In Width X 9-7/8 In Depth X 7 In Height
Color Ivory
Voltage 250 Volt
Type Pin and Sleeve
Material Copper-Free Aluminum
Applications Motor-Generator Set, Compressor, Heating and Cooling Unit, Welder, Conveyor, Lighting System, Indoor/Outdoor
Height 10.5 in
Weight 8.1 lb
Wire Size 4-1 AWG (Building), 4-2 AWG (Extra Flex)
Standard UL 1682,CSA C22.2,CE,UL 1686
Frequency 50-400 Hz
Connection Type Pressure, Crimp/Solder
TC Connection Pressure, Crimp/Solder
Amperage 100 Amp
Number of Poles 4 Pole
Sub Brand Arktite
