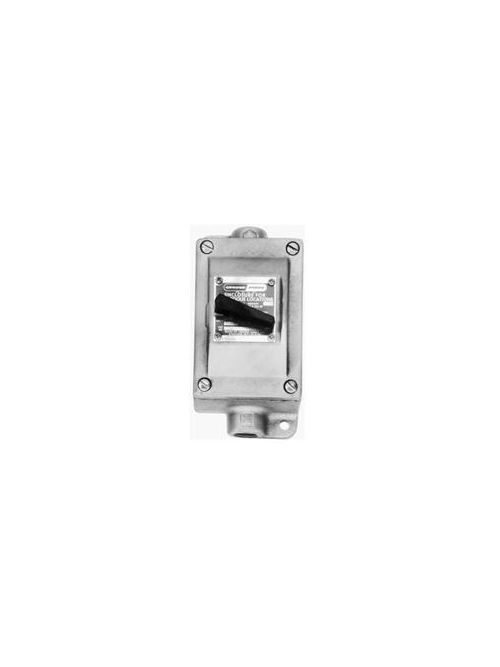

CRS-H EDSC2230 FS GEN USE SNAP SWTC
Product image thumbnail 0
Product image thumbnail 1
$1,402.56/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Eaton / Crouse-Hinds
Mfg Catalog # EDSC2230
North Coast Part # 674138

Specifications

  • Special Features: Factory sealed
  • NEC Hazardous Rating: Class I, Division 1
  • Enclosure Type: With switch
  • Hub Style: With two 3/4" hubs
  • Material: Feraloy iron alloy
  • Standards Type: NEC/CEC
  • Amperage Rating: 20A
  • Switch Function: 3-way
  • Number Of Gangs: Two-gang
  • Number Of Poles: Three-pole
  • Number Of Devices: 2
  • Trade Size: 3/4"
  • Primary Voltage Range: 120-277V
  • NEMA Rating: 3
  • Area Classification: Hazardous/Classified Locations
  • Style: Through feed
  • Voltage Rating: 120-277 Vac

General

  • UPC: 782274765730
  • Product Length/Depth: 5.06 IN
  • Product Height: 5.875 IN
  • Product Width: 7.19 IN
  • Product Weight: 16.25 LB

Categories

Overview

Family Brand Name Crouse-Hinds Series
Product UPC 78227476573
GTiN 00782274765730
Length 5.06 in
Size 5-3/32 In Length X 7-3/16 In Width X 3-1/16 In Height
Type Factory Sealed,Front Operated,Snap Switch,Through Feed
Material Iron
Applications Chemical Plants, Oil and Gas Refineries, Paint and Varnish Manufacturing Plants, Gasoline Bulk Loading, Terminals, Grain Elevators, Grain Processin
Height 5.875 in
Weight 16.25 lb
Amperage 20 Amp
Enclosure Class I Div 1 2 Group C D,Class II Div 1 Group E F G,Class II Div 2 Group F G,Class III,NEMA 3/7B/7C/7D/9E/9F/9G
Sub Brand FlexStation
Voltage 120/277 Volt
