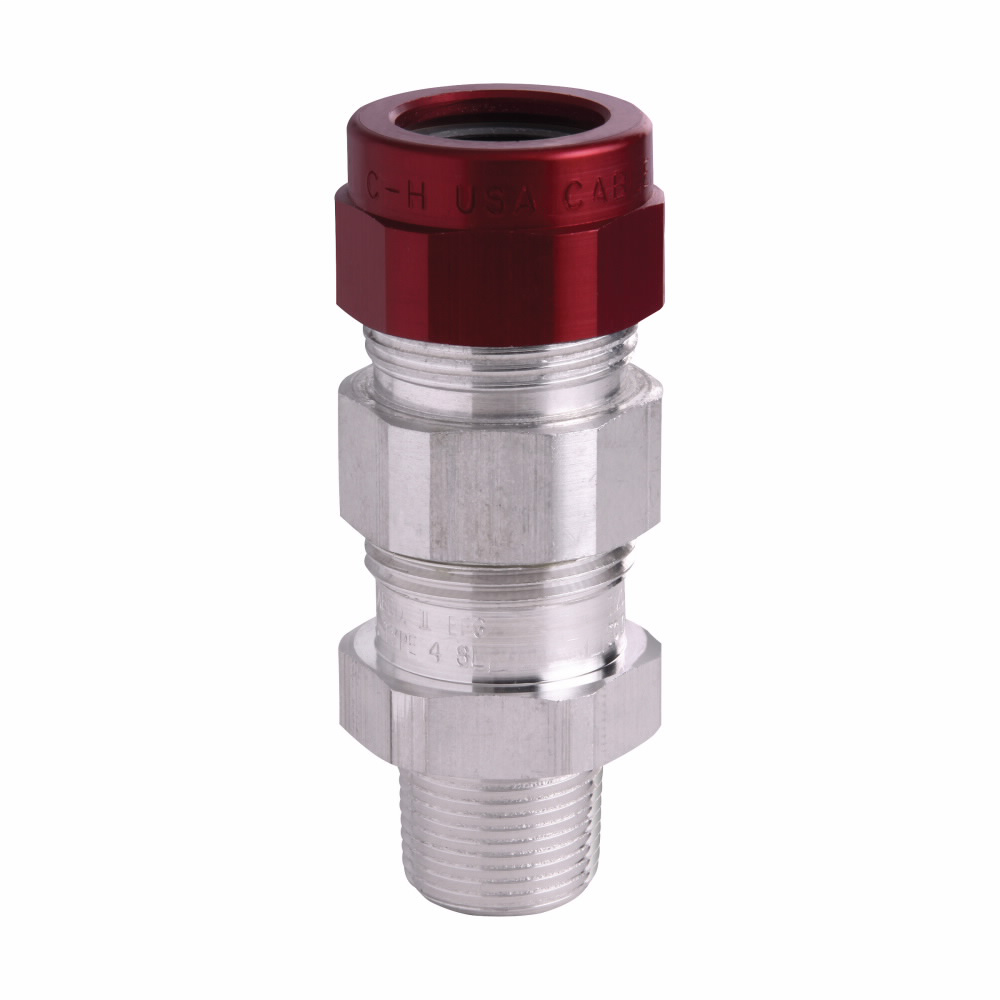

Crouse-Hinds Series TMCX6206 2 Inch 1.57 to 2.06 Inch Aluminum Explosionproof Armored Cable Gland
Product image thumbnail 0
Product image thumbnail 1
$744.64/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Eaton / Crouse-Hinds
Mfg Catalog # TMCX6206
North Coast Part # 68345

Specifications

  • Protection Type: Explosion-proof
  • Cable Type: Metal-clad with interlocked or continuously welded corrugated, TECK armoured and tray cable
  • Gland Type: Armoured Barrier and Non-armoured Barrier
  • Material: Aluminum
  • Armor Min/Max: 1.57-2.06"
  • Outer Sheath Min/Max: 1.63-2.31"
  • Thread Size: 2"
  • Thread Type: NPT

General

  • UPC: 782274414720
  • Product Length/Depth: 6.31 IN
  • Product Height: 3.5 IN
  • Product Width: 3.5 IN
  • Product Weight: 3.1 LB

Certifications And Compliances

  • Area Classification: Hazardous/Classified Locations
  • Standards Type: NEC/CEC
  • NEC Hazardous Rating: Class I, Division 1
  • NEMA Rating: 4

Categories

Overview

Family Brand Name Crouse-Hinds Series
Product UPC 78227441472
GTiN 00782274414720
Length 6.31 Inch
Width 3.5 in
Size 2 In
Type Straight
Material Aluminum
Applications Metal-Clad and Non-Armored Cable, Hazardous Area
Height 3.5 in
Weight 3.1 lb
Connection Type Male NPT
Temperature Rating -25 to 60 C
TC Connection Male NPT
Enclosure IP56, Class I Div 1 Group A B C D, Class II, Class III
