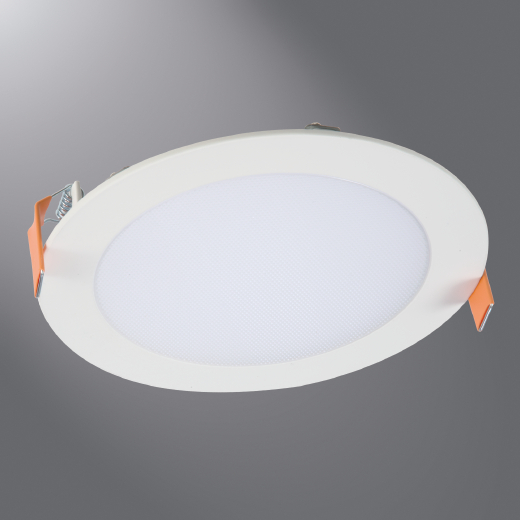

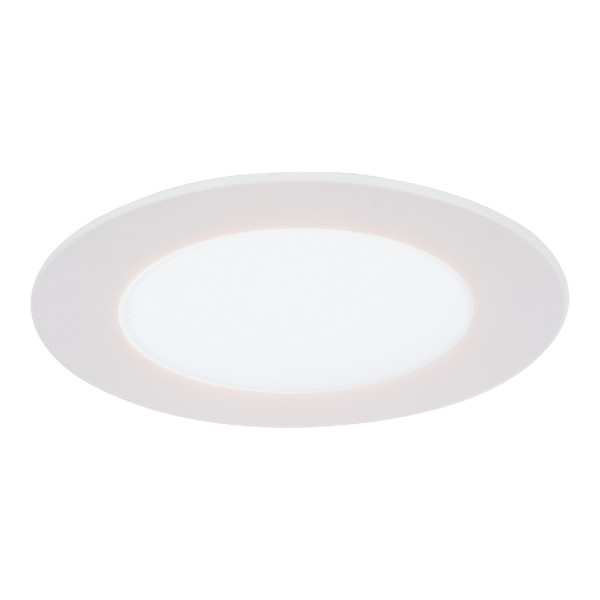

ETNCL HLB4069FS1EMWR 4" RD LENS, 60
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$33.41/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper Lighting / Halo
Mfg Catalog # HLB4069FS1EMWR
North Coast Part # 1610729

Features

  • Direct mount - does not require recessed housing or junctin box
  • Delivers up to 750 lumens
  • Achieves L70 at 50,000 hours in IC and non-IC applications
  • 2700, 3000, 3500, 4000 and 5000 K field selectable CCT
  • 90 CRI (min), R9 50 and color accuracy within 4 SDCM
  • Wet location listed for showers and protected ceilings
  • Dimmable with 120V dimmers
  • Five-year limited warranty

Housing

  • Die cast aluminum mounting frame with integral flange provides passive thermal cooling achieving L70 at 50,000 hours in IC and non-IC applications
  • High impact diffuse lens provides shielding to the light guide minimizing pixilation.

Gasket

  • Closed cell gasket achieves restrictive airflow and wet location listing without additional gaskets or caulking

Optics

  • Precision acrylic light guide organizes source flux into wide distribution with 1.28 spacing criteria, useful for general area illumination

LED Array

  • Plurality of mid power LED’s provides a uniform source with high efficiency and long life
  • Available in 90 CRI minimum, R9 greater than 50 and color accuracy within 4 SDCM providing color uniformity
  • Field selectable color temperature, select 2700, 3000, 3500, 4000 or 5000 K CCT
  • Meets ENERGY STAR® color angular uniformity requirements, deviation is less than 0.006 u’ v’

Remove Driver / Junction Box

  • Aluminum driver / junction box with captive hinged junction box cover
  • Listed for (6) #12 AWG 90˚ C splice conductors, 2-in, 2-out plus (2) ground
  • (2) 1/2” conduit pry-outs
  • (2) Slide-N-Side™ non-metallic (NM) wire traps allows wiring outside the box
  • Accepts 14-2, 14-3, 12-2, 12-3 U.S. and 14-2, 14-3, 12-2 Canadian NM cable
  • (3) 4-port push wire nuts with clear caps for quick and reliable mains voltage connections
  • Integral keyhole mounting slots facilitate direct mounting to building structure or new construction mounting frame

Driver

  • 120V 60 Hz constant current driver provides noise free operation
  • Continuous, flicker-free dimming from 100% to 5% with select leading or trailing edge 120V phase cut dimmers
  • Plenum rated inline electrical quick connect provides low voltage connection to fixture fitting

Installation

  • Can be installed in 1/2” to 1-1/4” thick ceilings
  • Cutout utilizes standard round hole saw sizes, cutout template provided
  • Heat treated springs hold fixture fitting securely in the ceiling eliminating light leaks
  • Housing is less than 1/2” thick and can span a 2” nominal framing member
  • Can be removed from below the ceiling for service or replacement

Optional Mounting Frame

  • Pre-galvanized steel mounting frame locates fixture fittings during electrical rough in and provides cutout guidance for drywall contractor
  • Provides tool-less attachment of remote driver / junction box

Compliance

  • cULus certified type IC suitable for direct contact with air permeable insulation
  • Not recommended for use in direct contact with spray foam insulation, reference NEMA LSD57-2013
  • Wet location listed
  • Airtight per ASTM-E283-04
  • Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements
  • EMI/RFI emissions per FCC 47CFR Part 15 consumer limits
  • Contains no mercury or lead and RoHS compliant
  • Photometric testing in accordance with IES LM-79-08
  • Lumen maintenance projections in accordance with IES LM-80-08 and TM-21-11
  • Can be used for State of California Title 24 high efficacy LED compliance under JA8, reference Modernized Appliance Efficiency Database System (MAEDBS) for 2016 JA8 High Efficacy Lighting
  • ENERGY STAR® certified, reference “Certified Light Fixtures” database

Warranty

  • Five year limited warranty, consult website for details. www.eaton.com/lighting/legal

Specifications

  • Lumens: 600 Series
  • Input Voltage: 120V
  • Input Current: 99 (mA)
  • Input Power: 12.0W
  • Efficiency: 60 LPW
  • Inrush (A): 2.0 A @ 15mS
  • THD: ≤ 20%
  • PF: ≥ 0.90
  • T Ambient: -30° - +40°C
  • Sound Rating: ≤ 20dba
  • Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K

Overview

UPC 08008384814
Family Brand Name Eaton
GTiN 00080083848140
Length 4.938 in
Finish White
Width 2.375 in
Voltage 120 Volt
Type HLB Ultra Thin Direct Mount
Applications Lighting
Height 6.688 in
Style (blank)
Wattage 12 Watt
Color Temperature 2700 K
Lumens 752 lm
Pkg Qty 864
Lamp Type LED
Number of Lamps 1
Ballast Type N/A
Color Rendering Index 90
Sub Brand HLB4 LED 4" MicroEdge Direct Mount Downlight
Input Voltage 120 V
Input Current 99 mA
Input Power 12.0 W
Maximum Thd ? 20%
Power Factor ? 0.90
Ambient Temperature -30 degrees
