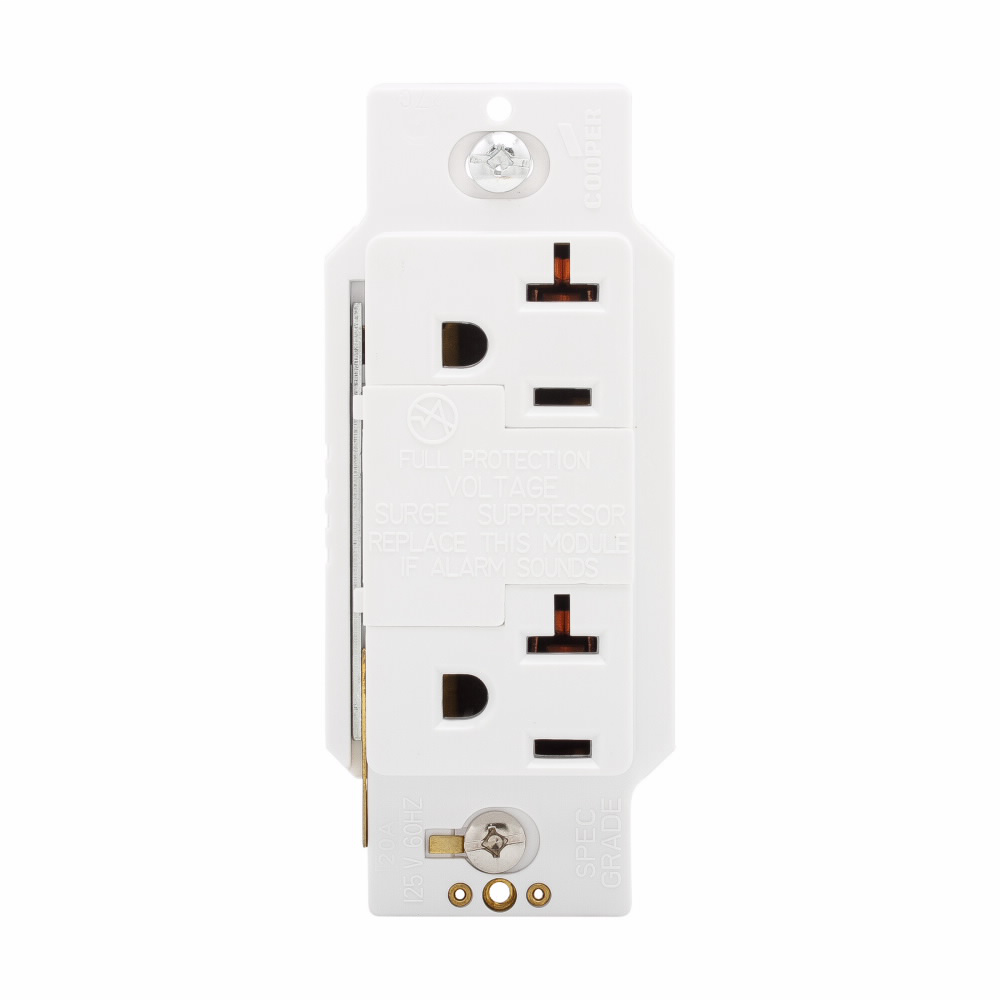

Eaton Wiring Devices 1210W 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R White Surge Protection Duplex Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$67.94/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper Wiring Devices
Mfg Catalog # 1210W
North Coast Part # 336515

Specifications

  • Special Features: Audible alarm, auto-ground
  • Number Of Receptacles: 2
  • Color: White
  • Device Type: Straight blade
  • Face/Body Material: Polycarbonate
  • Wiring Method: Wire leads
  • Material: Thermoplastic
  • Allowable Wire Size: Standard 6" #12 AWG leads
  • Amperage Rating: 20A
  • Number Of Poles: Two-pole
  • Contact Material: Brass
  • Type: SurgeBloc protection receptacle
  • Joules: 340J
  • Device Grade: Commercial
  • Nema Configuration: 5-20R
  • Style Type: Duplex
  • Operating Temperature: 0° to 40°C
  • Number Of Wires: Three-wire
  • Receptacle Type: Two-pole, three-wire, grounding
  • Voltage Rating: 125V
  • Application: Commercial

General

  • UPC: 032664570926
  • Product Length/Depth: 1.4 IN
  • Product Height: 3.81 IN
  • Product Width: 1.3 IN
  • Product Weight: .29 LB
  • Certifications: cULus Listed

Overview

UPC 03266457092
Length 1.4 in
Width 1.3 in
Color White
Operating Temperature 0 To 40 C
Voltage 125 Volt
Type SurgeBloc Protection Receptacle
Material Thermoplastic
Height 3.81 in
Weight .29 lb
Family Brand Name Eagle Electric
Amperage 20 Amp
Number of Poles 2 Pole
Number of Wires 3
GTiN 00032664570926
Applications SURGE SUPPRESSOR
Sub Brand Eaton Wiring Devices
Wire Size 12 AWG
Connection Type 6 In Wire Lead
NEMA 5-20R
