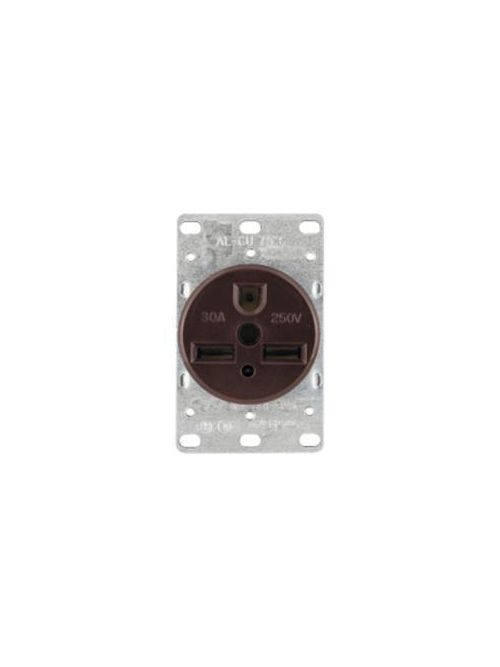

EWD 1234-BOX Recp Single Flush 30A
Product image thumbnail 0
Product image thumbnail 1
$16.93/ea
In Stock | 24 available at 2 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper Wiring Devices
Mfg Catalog # 1234-BOX
North Coast Part # 209641

Specifications

  • Mounting Type: Flush
  • Color: Black
  • Wiring Method: Back
  • Material: Glass-filled nylon
  • Allowable Wire Size: #12 - 4 AWG
  • Amperage Rating: 30A
  • Number Of Poles: Two-pole
  • Nema Configuration: 6-30R
  • Used With: S42
  • Design Type: Receptacle
  • Connection Type: Screw
  • Style: Power
  • Number Of Wires: Three-wire
  • Receptacle Type: Two-pole, three-wire, grounding
  • Voltage Rating: 250V

General

  • UPC: 032664306303
  • Product Length/Depth: 2.25 IN
  • Product Height: 3.88 IN
  • Product Width: 2.38 IN
  • Product Weight: .36 LB
  • Compliances: RoHS Compliant
  • Certifications: UL Listed

Categories

Overview

UPC 03266430630
Family Brand Name Eaton Wiring Devices
Item Long Description Commercial & Industrial Power Receptacles 30A, 250V NEMA 6-30 2-Pole/3-Wire. Heavy duty design and construction make Arrow Hart power devices ideal for any high amperage industrial or commercial power connectivity application.
GTiN 00032664306303
Length 2.25 in
Width 2.38 in
Color Black
Voltage 250 Volt
Type Single,Straight Blade
Insulation Type Impact Resistant Thermoplastic
Material High Strength Glass Reinforced Nylon, Impact Resistant Thermoplastic
Conductor Size 4 AWG
Applications NON-RESI RECEPTACLE
Mounting Type Flush
Height 3.88 in
Grade Commercial
Weight .36 lb
Style Power
Wire Size 4 AWG
Standard UL
Connection Type Screw
Wattage 3 Watt
Receptacle Type Grounding
NEMA 6-30R
Amperage 30 Amp
Dielectric Strength 250 VAC
Blade Dimensions 1.81 x 2.5 x 3.28 in
Wiring Method Back
Environmental Conditions Indoor Use Only
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Arrow Hart
