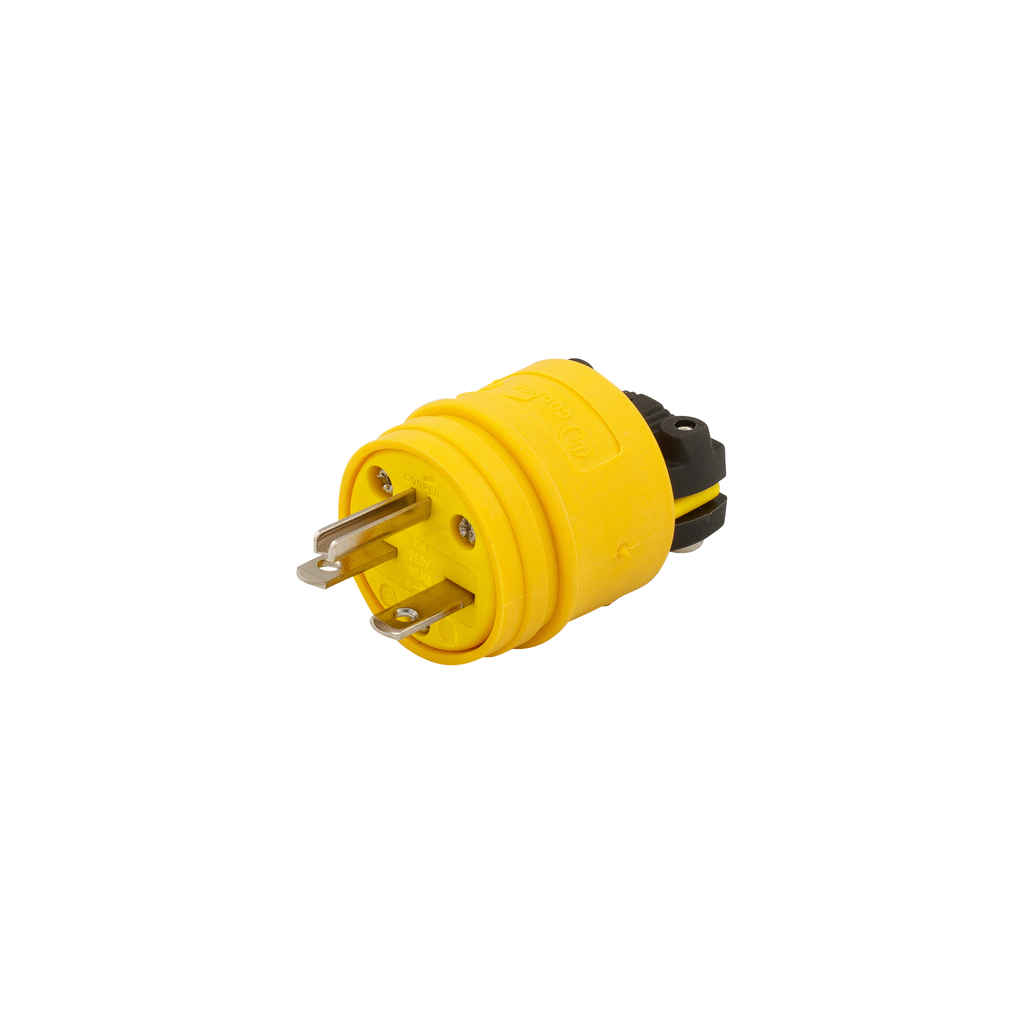

EWD 1449 Plug Ins 15A 250V 2P3W Str
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$22.50/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper Wiring Devices
Mfg Catalog # 1449
North Coast Part # 752630

Specifications

  • Special Features: Severe duty
  • Color: Yellow, black
  • Device Type: Plug
  • Face/Body Material: Santoprene thermoplastic elastomer
  • Wiring Method: Back wire
  • Material: Thermoplastic
  • Allowable Wire Size: #14-8 AWG
  • Amperage Rating: 15A
  • Number Of Poles: Two-pole
  • Contact Material: Nickel-plated brass
  • Type: Complex environment
  • Device Grade: Severe duty
  • Nema Configuration: 6-15P
  • Style Type: Straight body
  • Design Type: Straight blade
  • Environmental Resistance: Complex conditions
  • Connection Type: Screw
  • Number Of Wires: Three-wire
  • Cord Range: 0.38-1" in diameter
  • Voltage Rating: 250V
  • Application: Industrial

General

  • UPC: 040893630854
  • Product Length/Depth: 7.25 IN
  • Product Height: 1.75 IN
  • Product Width: 5 IN
  • Product Weight: .135 LB
  • Warranty: Refer to warranty document.
  • Certifications: cULus Listed

Overview

UPC 04089363085
Length 7.25 in
Width 5 in
Color Yellow,Black
Voltage 250 Volt
Material Thermoplastic
Height 1.75 in
Family Brand Name Eaton Corporation
Amperage 15 Amp
Number of Poles 2 Pole
Number of Wires 3
GTiN 00040893630854
Type Complex Environment
Applications ELASTOMERIC PRODUCTS
Weight .135 lb
Wire Size #14 to 8 AWG
Cord Range 0.38 - 1.00 in
Connection Type Screw
NEMA 6-15P
Sub Brand Eaton Wiring Devices
