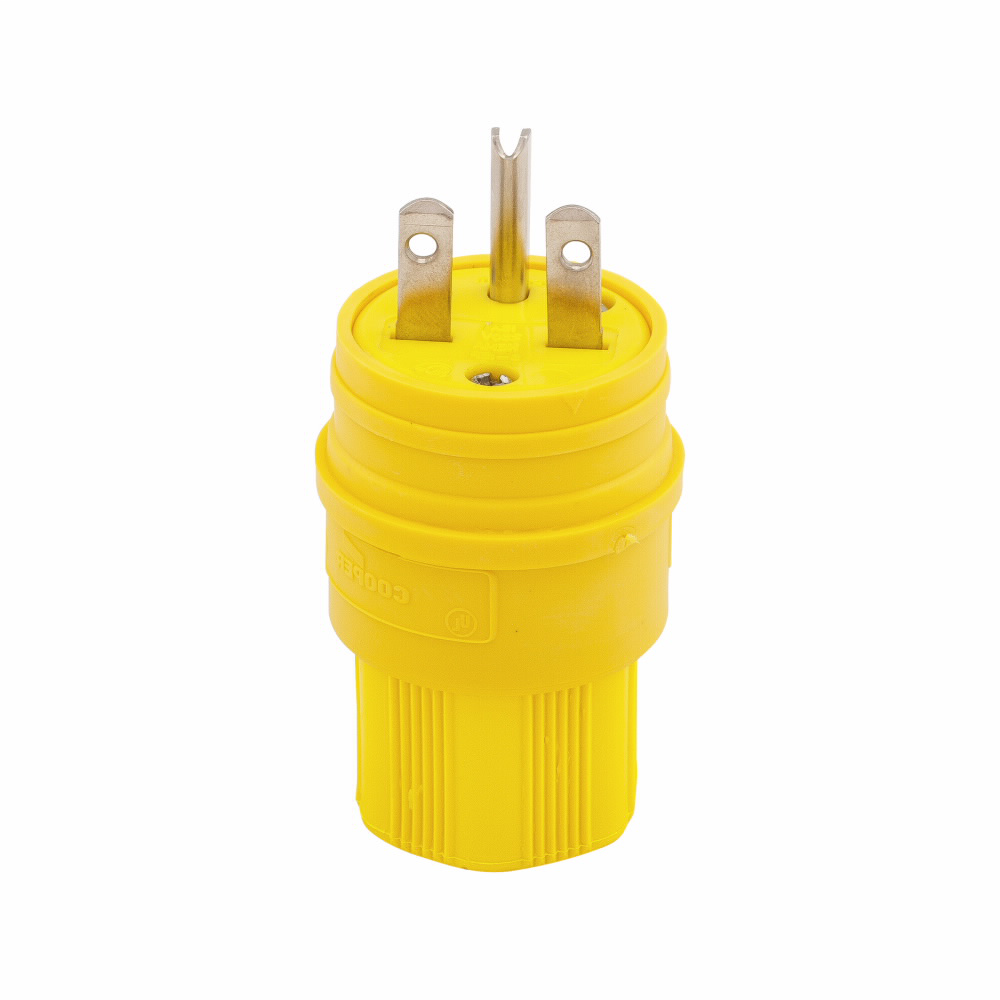

EWD 14W49 Plug WT 15A 250V 2P3W Str
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$37.32/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper Wiring Devices
Mfg Catalog # 14W49
North Coast Part # 752629

Specifications

  • Special Features: Watertight
  • Color: Yellow
  • Device Type: Plug
  • Face/Body Material: Santoprene thermoplastic elastomer
  • Wiring Method: Back wire
  • Material: Thermoplastic
  • Allowable Wire Size: #18-10 AWG
  • Amperage Rating: 15A
  • Number Of Poles: Two-pole
  • Contact Material: Nickel-plated brass
  • Type: Complex environment
  • Device Grade: Watertight special use
  • Nema Configuration: 6-15P
  • Style Type: Straight body
  • Design Type: Straight blade
  • Environmental Resistance: Wet
  • Connection Type: Screw
  • Number Of Wires: Three-wire
  • Receptacle Type: Two-pole, three-wire, grounding
  • Cord Range: 0.30-0.65" in diameter
  • Voltage Rating: 250V
  • Application: Industrial

General

  • UPC: 040893630991
  • Product Length/Depth: 1.59 IN
  • Product Height: 4 IN
  • Product Width: 1.59 IN
  • Product Weight: .24 LB
  • Warranty: Refer to warranty document.
  • Certifications: cULus Listed

Overview

UPC 04089363099
Family Brand Name EATON
GTiN 00040893630991
Length 1.59 in
Color Yellow
Voltage 250 Volt
Type Complex Environment
Material Thermoplastic
Applications ELASTOMERIC PRODUCTS
Weight .24 lb
Amperage 15 Amp
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Eaton Wiring Devices
Wire Size 18-10 AWG
Connection Type Screw
Temperature Rating -40 To 75 C
NEMA 6-15P
