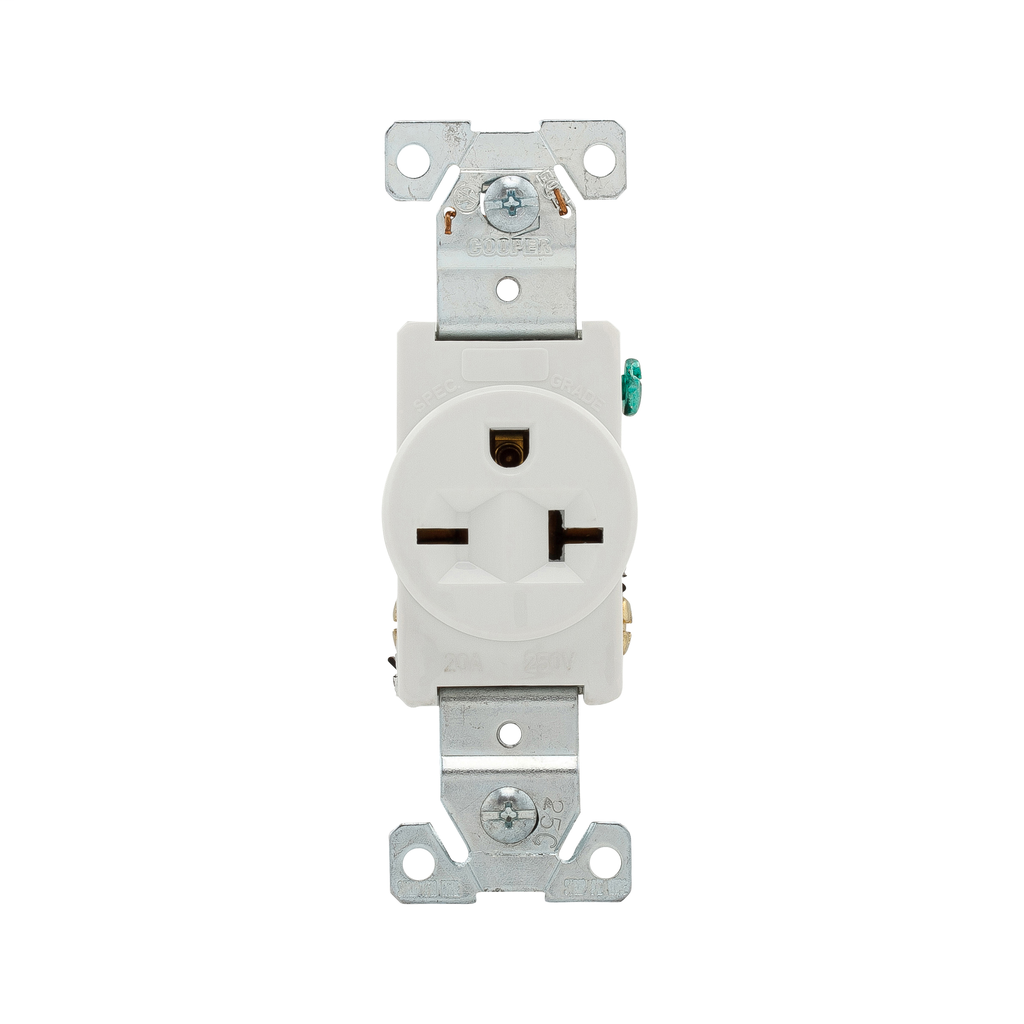

EWD 5461W Recp Sgl 20A250V 2P3W Bra
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$21.56/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper Wiring Devices
Mfg Catalog # 5461W
North Coast Part # 63677

Specifications

  • Height: 3.28 IN
  • Length: 1.32 IN
  • Width: .83 IN
  • Allowable Wire Size: #14 to 10 AWG
  • Amperage Rating: 20A
  • Mounting Type: Flush
  • Voltage Rating: 250V
  • Wiring Method: Back and side
  • Color: White
  • Contact Material: Brass
  • Design Type: Receptacle
  • Nema Configuration: 6-20R
  • Number Of Poles: Two-pole
  • Number Of Wires: Three-wire
  • Receptacle Type: Two-pole, three-wire, grounding
  • Style Type: Single
  • Connection Type: Screw
  • Material: Glass-filled nylon

Categories

Overview

UPC 03266438270
Length 1.32 in
Width .83 in
Color White
Voltage 250 Volt
Material Nylon
Height 3.28 in
Family Brand Name Eaton Wiring Devices
Amperage 20 Amp
Number of Poles 2 Pole
Number of Wires 3
GTiN 00032664382703
Type Straight Blade
Conductor Size 14-10 AWG
Applications For Industrial use
Mounting Type Flush
Grade Industrial
Connection Type Back and Side Wire
Wattage 3 Watt
Temperature Rating -40 to 70 C
Grounding Automatic
Contact Material Solid Brass
Dielectric Strength 2000 V
Blade Dimensions 1.23 in W x 0.83 in D x 3.28 in H
Environmental Conditions UL 94 Requirements, V2 Rated Flammability
Sub Brand Arrow Hart
