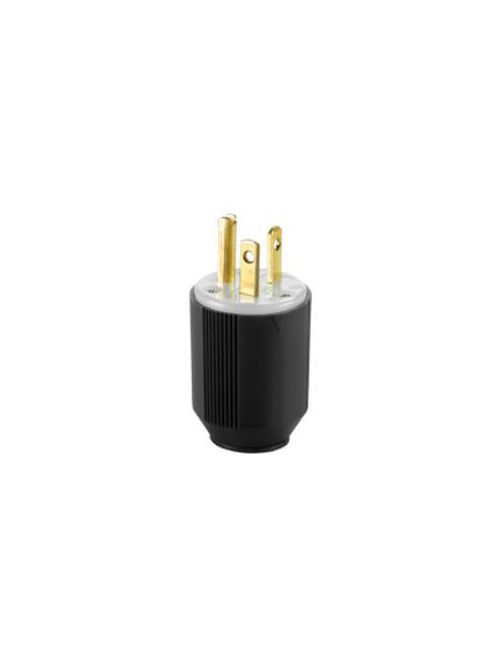

EWD 5466N Plug 20A 250V 2P3W Str Au
$26.48/ea
In Stock | 7 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper Wiring Devices
Mfg Catalog # 5466N
North Coast Part # 64032

Specifications

  • Special Features: AutoGrip
  • Color: Black and white
  • Device Type: Plug
  • Face/Body Material: Nylon
  • Wiring Method: Back wire
  • Material: Nylon
  • Allowable Wire Size: #18-12 AWG
  • Amperage Rating: 20A
  • Number Of Poles: Two-pole
  • Contact Material: Brass
  • Device Grade: Industrial specification
  • Nema Configuration: 6-20P
  • Style Type: Straight body
  • Design Type: Straight blade
  • Connection Type: Screw
  • Number Of Wires: Three-wire
  • Receptacle Type: Two-pole, three-wire, grounding
  • Voltage Rating: 250V
  • Application: Industrial

General

  • UPC: 040893019055
  • Product Length/Depth: 1.91 IN
  • Product Height: 4.13 IN
  • Product Width: 1.78 IN
  • Product Weight: .181 LB
  • Warranty: Refer to warranty document.
  • Compliances: RoHS Compliant
  • Certifications: UL

Overview

UPC 04089301905
Family Brand Name Eaton
GTiN 00040893019055
Length 1.91 in
Width 1.78 in
Color Black,White
Voltage 250 Volt
Type Industrial Grade, Auto Grip
Material Nylon
Applications STRGHT BLADE PLG&CONNEC
Height 4.13 in
Weight .181 lb
Wire Size 18-12 AWG
Cord Range 0.33 - 0.66 in
Connection Type Screw
NEMA 6-20P
Amperage 20 Amp
Environmental Conditions -40 To 75 C
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Arrow Hart
Conductor Size 18-12 AWG
Temperature Rating -40 to 75 C
Contact Material Brass
Blade Dimensions 1.91 in L x 1.78 in W x 4.13 in H
Cord Size 0.33 - 0.66 in
