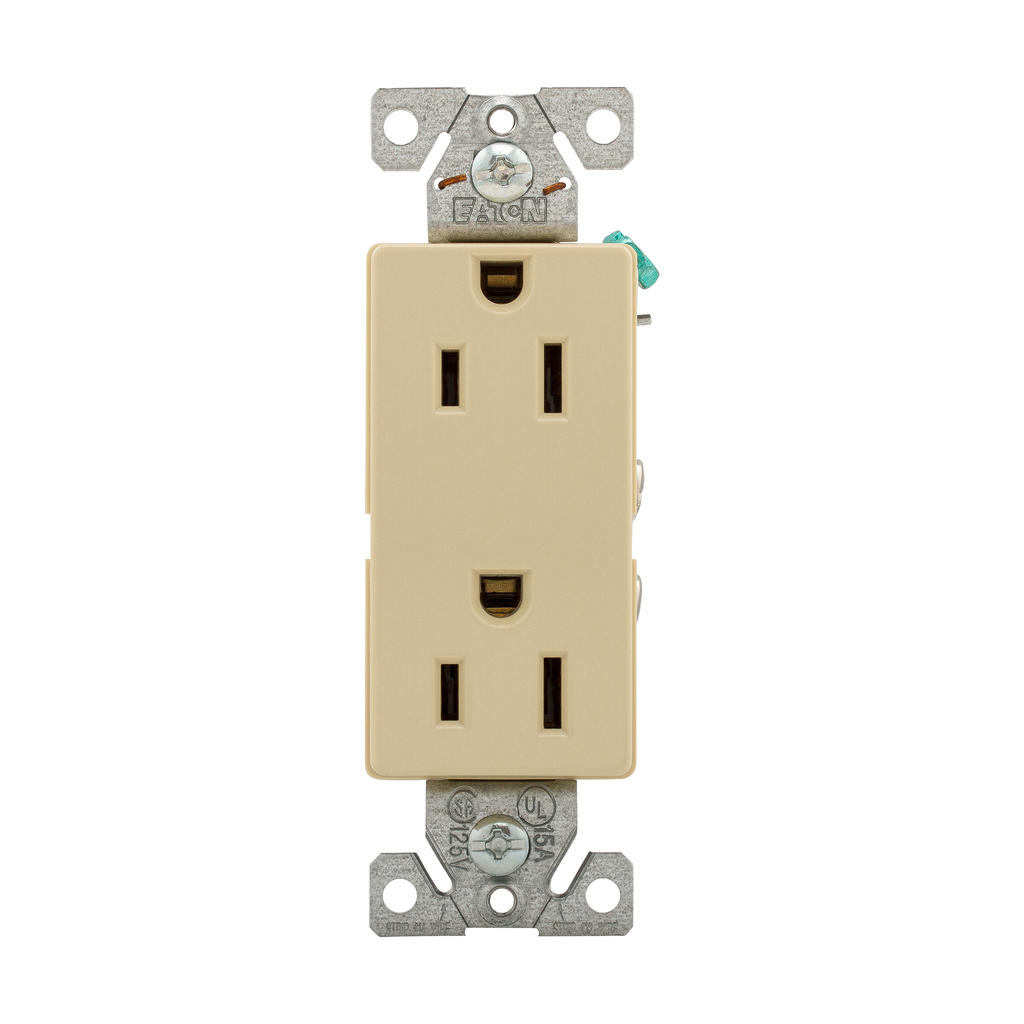

EWD 6252W-BU Recp Deco Dup 15A 125V
Product image thumbnail 0
Product image thumbnail 1
$4.80/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper Wiring Devices
Mfg Catalog # 6252W-BU
North Coast Part # 429624

Specifications

  • Height: 4.19 IN
  • Length: 1.32 IN
  • Width: .84 IN
  • Type: Duplex
  • Allowable Wire Size: #14 to 10 AWG
  • Amperage Rating: 15A
  • Mounting Type: Flush
  • Voltage Rating: 125V
  • Wiring Method: Back and side
  • Color: White
  • Contact Material: Brass
  • Design Type: Receptacle
  • Nema Configuration: 5-15R
  • Number Of Poles: Two-pole
  • Number Of Wires: Three-wire
  • Receptacle Type: Two-pole, three-wire, grounding
  • Style Type: Decorator
  • Connection Type: Screw
  • Material: PVC

Overview

UPC 03266458403
Length 1.32 in
Width .84 in
Color White
Voltage 125 Volt
Type Decorator
Material Nylon Face, PVC Base
Height 4.19 in
Family Brand Name Eaton Corporation
Amperage 15 Amp
Number of Poles 2 Pole
Number of Wires 3
Item Long Description Commercial Specification Grade Straight Blade Receptacles - Decorator 15A-125V, NEMA 5-15R. Engineered for safe, reliable performance, these UL 498 and Federal Specification WC-596 listed devices provide maximum durability in a wide variety of applications while providing installation efficiency to help finish the job on time.
GTiN 00032664584039
Insulation Type Nylon Face,PVC Base
Conductor Size 14-10 AWG
Applications NON-RESI RECEPTACLE
Mounting Type Flush
Grade Commercial
Weight .215 lb
Wire Size 14-10 AWG
Standard UL
Connection Type Back and Side Wire
Wattage 3 Watt
Temperature Rating -20 to 70 C
NEMA 5-15R
Dielectric Strength 2000 V
Blade Dimensions 0.82 x 1.32x 1.98 x 4.19 in
Sub Brand Arrow Hart
