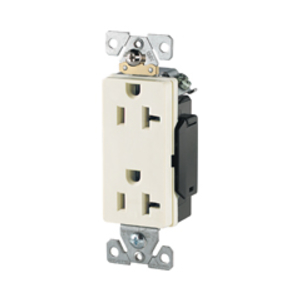

EWD 6342W Recp Deco Duplex 20A 125V
$7.66/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper Wiring Devices
Mfg Catalog # 6342W
North Coast Part # 551117

Specifications

  • Special Features: Terminal guards, auto-grounding
  • Mounting Type: Flush
  • Color: White
  • Device Type: Receptacle
  • Face/Body Material: Glass filled Nylon
  • Wiring Method: Side
  • Material: PVC
  • Allowable Wire Size: #14-10 AWG
  • Amperage Rating: 20A
  • Number Of Poles: Two-pole
  • Contact Material: Brass
  • Type: Duplex
  • Device Grade: Extra heavy duty industrial specification grade
  • Nema Configuration: 5-20R
  • Style Type: Decorator
  • Design Type: Straight blade
  • Connection Type: Screw
  • Number Of Wires: Three-wire
  • Receptacle Type: Duplex
  • Voltage Rating: 125V
  • Application: Industrial

General

  • UPC: 032664513770
  • Product Length/Depth: 1.3 IN
  • Product Height: 4.2 IN
  • Product Width: .88 IN
  • Product Weight: .242 LB
  • Warranty: Refer to warranty document.
  • Compliances: RoHS Compliant
  • Certifications: UL

Overview

Family Brand Name Eagle Electric
Product UPC 03266451377
GTiN 00032664513770
Length 1.3 in
Width .88 in
Color White
Voltage 125 Volt
Type Duplex
Material PVC
Applications INDUSTRIAL RECEPTACLES
Mounting Type Flush
Height 4.2 in
Weight .242 lb
Wire Size 14-10 AWG
Standard UL
Connection Type Screw
Base Material PVC
Face Material Nylon
Temperature Rating -20 To 70 C
Receptacle Type Grounding
NEMA 5-20R
Contact Material Brass
Amperage 20 Amp
Wiring Method Side
Environmental Conditions See Spec Sheet
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Eaton Wiring Devices
