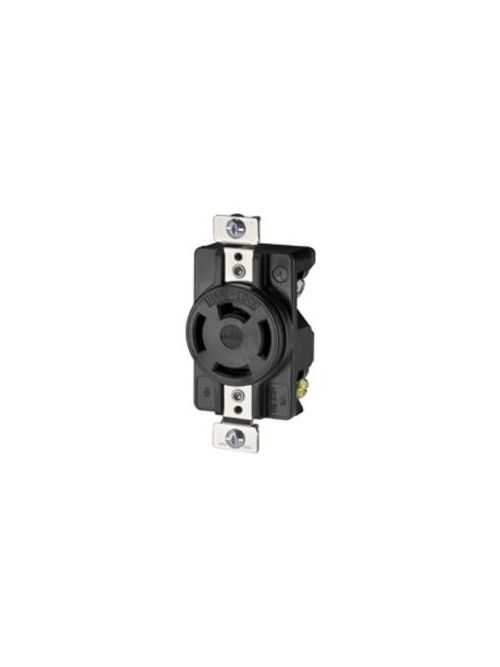

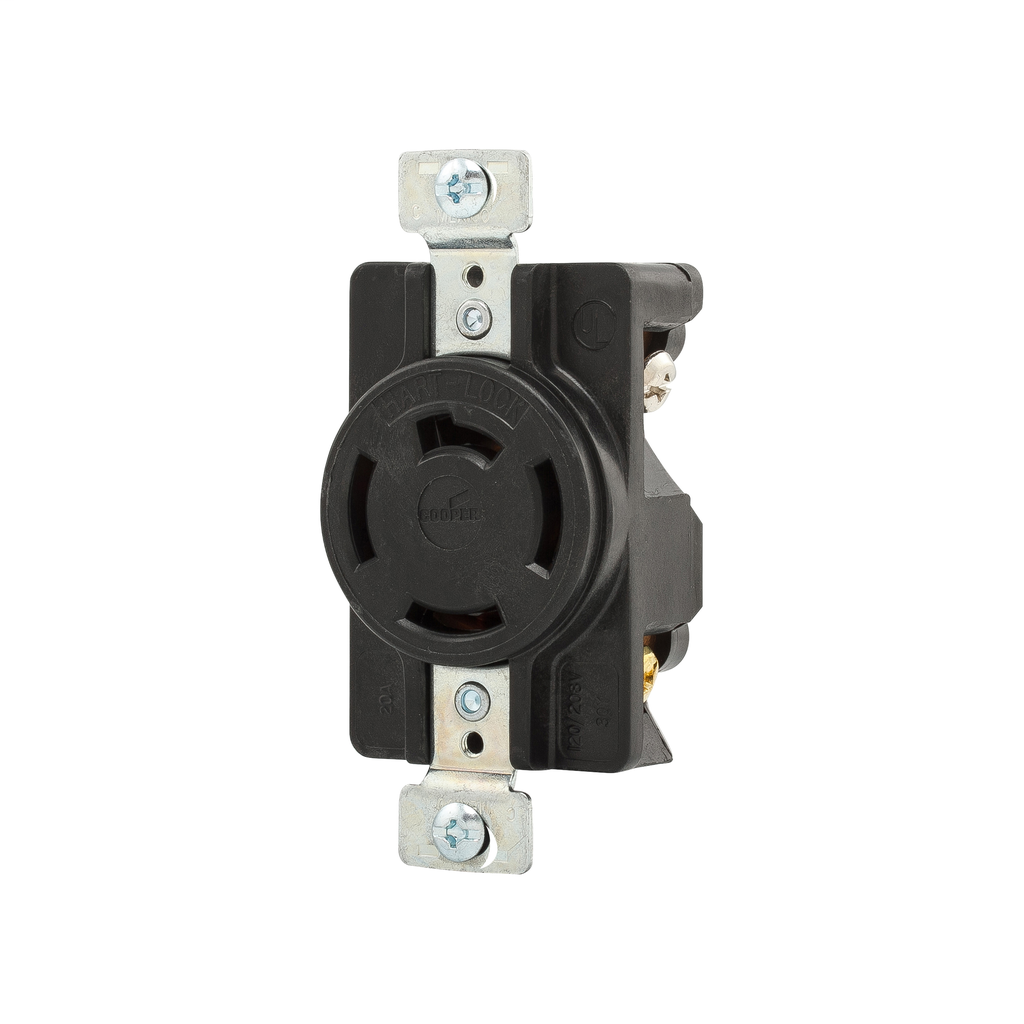

EWD 7410B Recp Single 20A 120/208V
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$72.66/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper Wiring Devices
Mfg Catalog # 7410B
North Coast Part # 546451

Specifications

  • Special Features: Safety grip locking flanged outlet
  • Color: Black
  • Face/Body Material: Glass filled Nylon
  • Wiring Method: Back and side
  • Material: Glass-filled nylon
  • Allowable Wire Size: #14-8 AWG
  • Amperage Rating: 20A
  • Number Of Poles: Four-pole
  • Contact Material: Brass
  • Type: Locking receptacle
  • Device Grade: Heavy duty specification grade
  • Nema Configuration: Non-NEMA
  • Design Type: Single receptacle
  • Number Of Wires: Four-wire, non-grounding
  • Receptacle Type: Single
  • Operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Voltage Rating: 3ØY 120/208 V
  • Application: Industrial

General

  • UPC: 040893681474
  • Product Length/Depth: 4.25 IN
  • Product Height: 2 IN
  • Product Width: 2 IN
  • Product Weight: .25 LB
  • Certifications: UL Listed

Categories

Overview

UPC 04089368147
Family Brand Name Eaton
Item Long Description Eaton safety grip locking receptacle, #14-8 AWG, 20A, Industrial, 120/208V, Back and side wiring, Black, Single, Non-NEMA, Four-pole, Four-wire, Glass-filled nylon
GTiN 00040893681474
Length 4.25 in
Width 2 in
Color Black
Operating Temperature -40 To 140 F
Voltage 120/208 Volt
Type Locking Receptacle
Material Glass-filled Nylon
Applications LOCKING DEVICES
Mounting Type Interchangeable Competitive Units,Mounting Holes
Height 2 in
Weight .25 lb
Wire Size 14-8 AWG
Connection Type Screw
NEMA Non-NEMA
Number of Phases 3 Phase
Amperage 20 Amp
Wiring Method Side,Back
Number of Poles 4 Pole
Number of Wires 4
Sub Brand Eaton Wiring Devices
