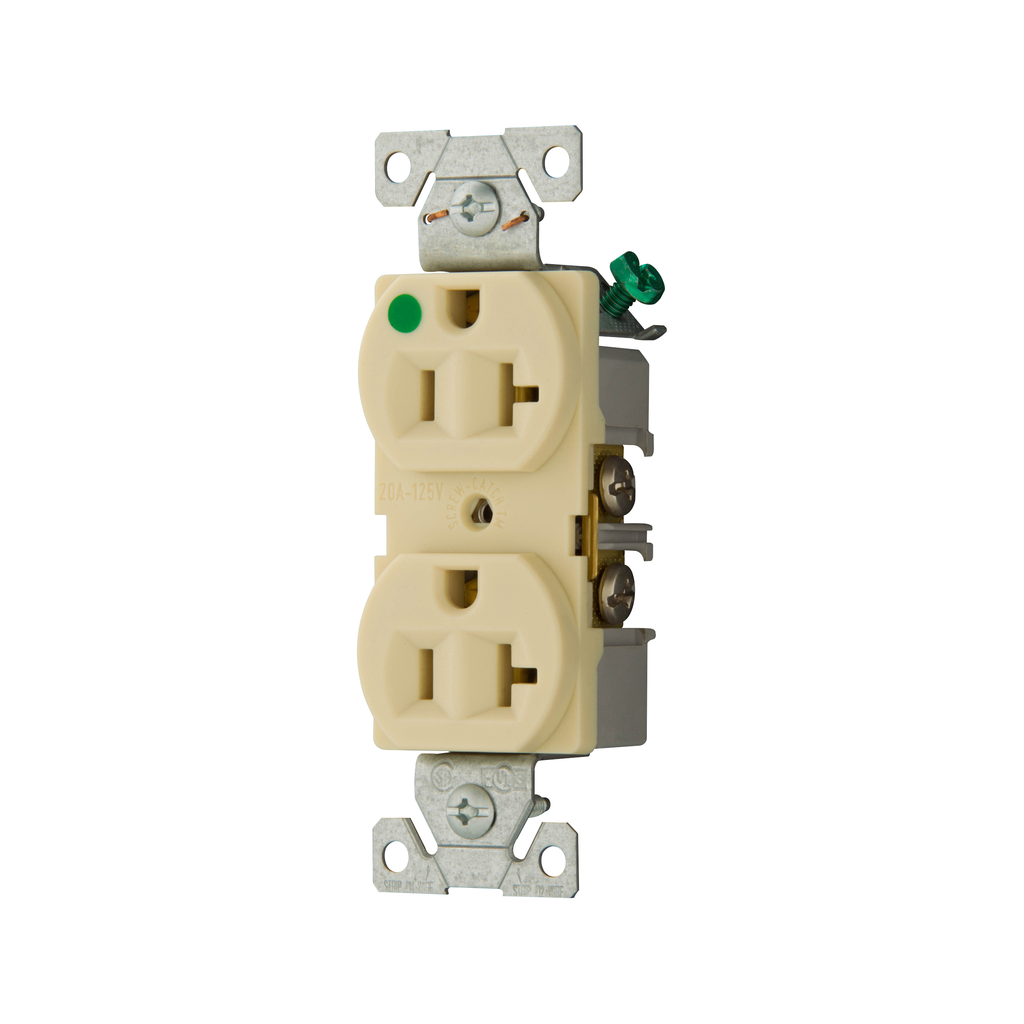

Arrow Hart Wiring 8300V 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R Ivory Straight Blade Duplex Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$26.78/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper Wiring Devices
Mfg Catalog # 8300V
North Coast Part # 66006

Specifications

  • Special Features: Auto-grounding, screw-catch
  • Mounting Type: Flush
  • Color: Ivory
  • Device Type: Receptacle
  • Face/Body Material: High-impact nylon face, PVC base
  • Wiring Method: Back and side
  • Material: Nylon, PVC
  • Allowable Wire Size: #14-10 AWG
  • Amperage Rating: 20A
  • Number Of Poles: Two-pole
  • Contact Material: Brass
  • Type: Duplex
  • Device Grade: Heavy duty hospital grade
  • Nema Configuration: 5-20R
  • Style Type: Standard
  • Design Type: Straight blade
  • Connection Type: Screw
  • Number Of Wires: Three-wire
  • Receptacle Type: Duplex
  • Voltage Rating: 125V
  • Application: Industrial

General

  • UPC: 032664705632
  • Product Length/Depth: 1.3 IN
  • Product Height: 4.19 IN
  • Product Width: .88 IN
  • Product Weight: .208 LB
  • Warranty: Refer to warranty document.
  • Certifications: UL

Overview

UPC 03266470563
Length 1.3 in
Width .88 in
Color Ivory
Voltage 125 Volt
Type Duplex
Material Nylon, PVC
Height 4.19 in
Family Brand Name Eaton
Amperage 20 Amp
Number of Poles 2 Pole
Number of Wires 3
GTiN 00032664705632
Size 0
Insulation Type Nylon
Applications INDUSTRIAL RECEPTACLES
Mounting Type Wall
Weight .208 lb
Wire Size #14 to 10 AWG
Connection Type Screw
Temperature Rating -20 To 90 C
NEMA 5-20R
Environmental Conditions -20 To 90 C
Sub Brand Eaton Wiring Devices
