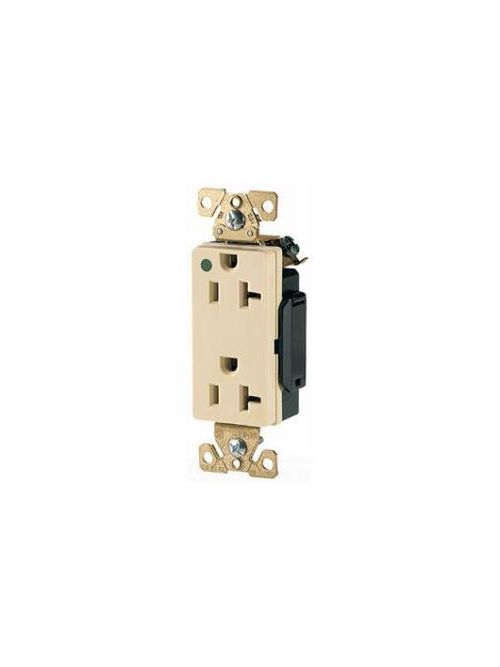

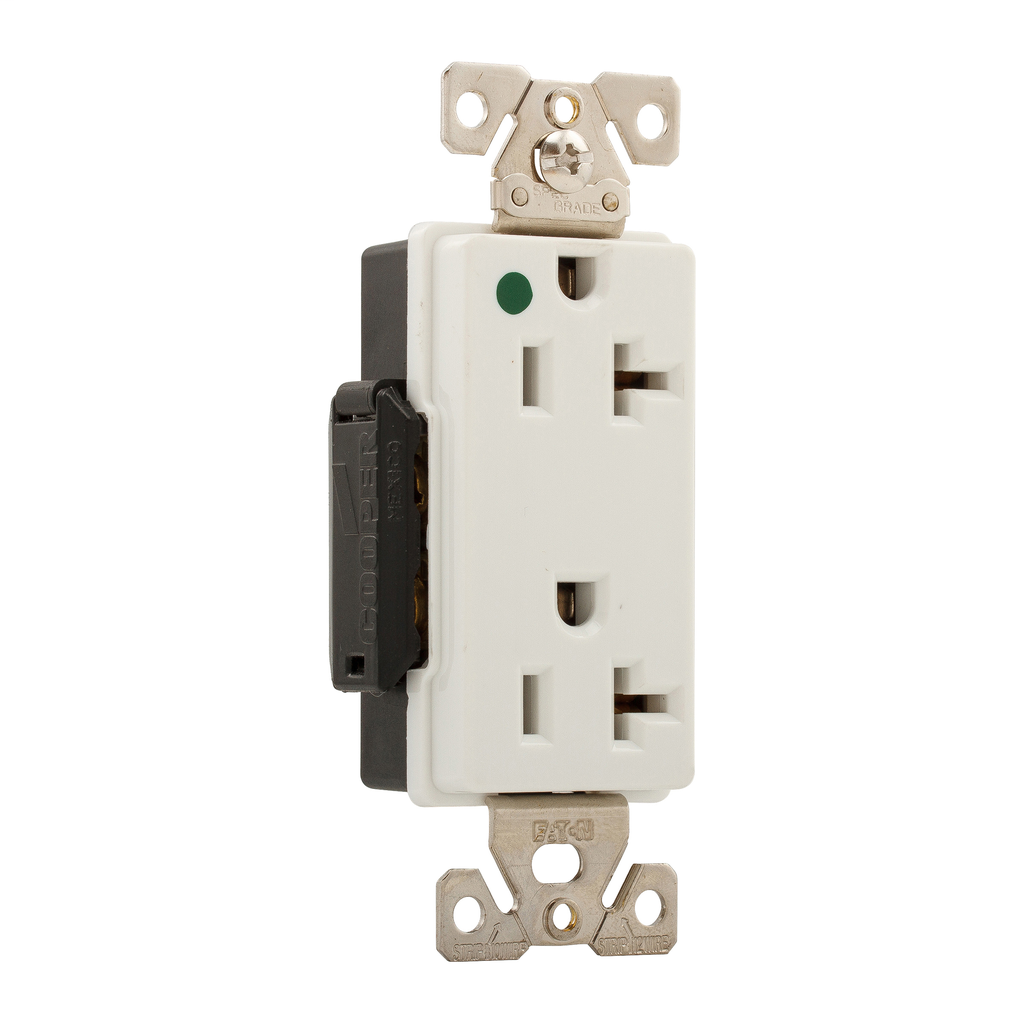

EWD 8362W Recp HG Deco Dup 20A125V
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$40.12/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper Wiring Devices
Mfg Catalog # 8362W
North Coast Part # 71398

Specifications

  • Height: 4.19 IN
  • Length: 1.32 IN
  • Width: .88 IN
  • Type: Duplex
  • Allowable Wire Size: #14 to 10 AWG
  • Amperage Rating: 20A
  • Mounting Type: Flush
  • Voltage Rating: 125V
  • Wiring Method: Back and side
  • Color: White
  • Contact Material: Brass
  • Design Type: Receptacle
  • Nema Configuration: 5-20R
  • Number Of Poles: Two-pole
  • Number Of Wires: Three-wire
  • Receptacle Type: Two-pole, three-wire, grounding
  • Style Type: Decorator
  • Connection Type: Screw
  • Material: Glass-filled nylon

Overview

UPC 03266451303
Length 1.32 in
Width .88 in
Color White
Voltage 125 Volt
Type Tamper-Resistant
Material PVC
Height 4.19 in
Family Brand Name Eaton Wiring Devices
Amperage 20 Amp
Number of Poles 2 Pole
Number of Wires 3
GTiN 00032664513039
Conductor Size 14-10 AWG
Applications For Industrial
Grade Hospital
Connection Type Back and Side
Temperature Rating -20 to 90 C
Grounding Grounding
Contact Material 0.030 in T Brass
Dielectric Strength 2000 V
Blade Dimensions 1.3 in W x 0.88 in D x 4.19 in H
Environmental Conditions UL 94 Requirements, V2 Rated Flammability
Sub Brand Eaton Wiring Devices
