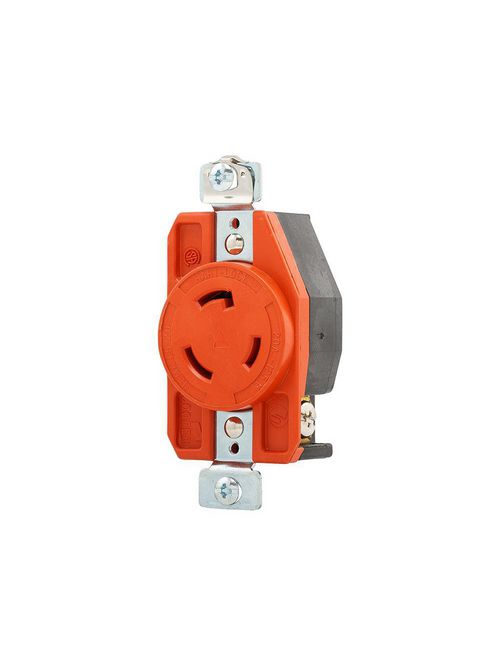

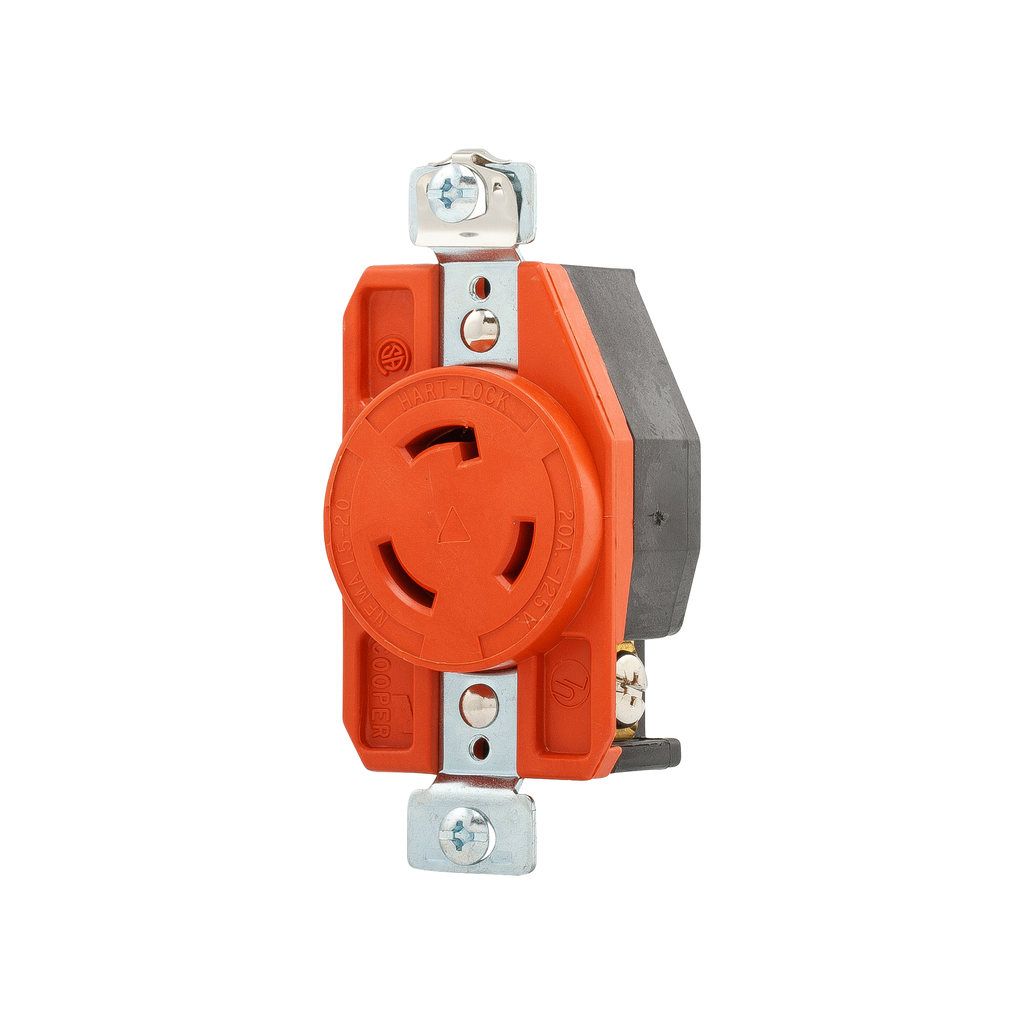

EWD AHIGL520R Recp Single IG 20A 12
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$39.39/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper Wiring Devices
Mfg Catalog # AHIGL520R
North Coast Part # 217821

Specifications

  • Special Features: Isolated ground
  • Color: Orange
  • Face/Body Material: Glass filled Nylon
  • Wiring Method: Back and side
  • Material: Glass-filled nylon
  • Allowable Wire Size: #14-8 AWG
  • Amperage Rating: 20A
  • Number Of Poles: Two-pole
  • Contact Material: Brass
  • Type: Locking receptacle
  • Device Grade: Extra heavy duty industrial specification grade
  • Nema Configuration: L5-20
  • Design Type: Single receptacle
  • Number Of Wires: Three-wire, grounding
  • Receptacle Type: Single, Isolated ground
  • Operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Voltage Rating: 125V
  • Application: Industrial

General

  • UPC: 040893676951
  • Product Length/Depth: 4.25 IN
  • Product Height: 1.75 IN
  • Product Width: 2 IN
  • Product Weight: .3 LB
  • Warranty: Refer to warranty document.
  • Compliances: RoHS Compliant
  • Certifications: UL

Categories

Overview

UPC 04089367695
Family Brand Name Arrow Hart Wiring
Item Long Description Eaton locking receptacle, #14-8 AWG, 20A, Industrial, 125V, Back and side wiring, Orange, Single, L5-20, Two-pole, Three-wire, Glass-filled nylon
GTiN 00040893676951
Length 4.25 in
Width 2 in
Color Orange
Operating Temperature -40 To 140 F
Voltage 125 Volt
Type Locking Receptacle
Material Glass-filled Nylon
Applications LOCKING DEVICES
Height 1.75 in
Weight .3 lb
Wire Size 14-8 AWG
Connection Type Screw
NEMA L5-20
Amperage 20 Amp
Environmental Conditions -40 To 70 C
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Eaton Wiring Devices
