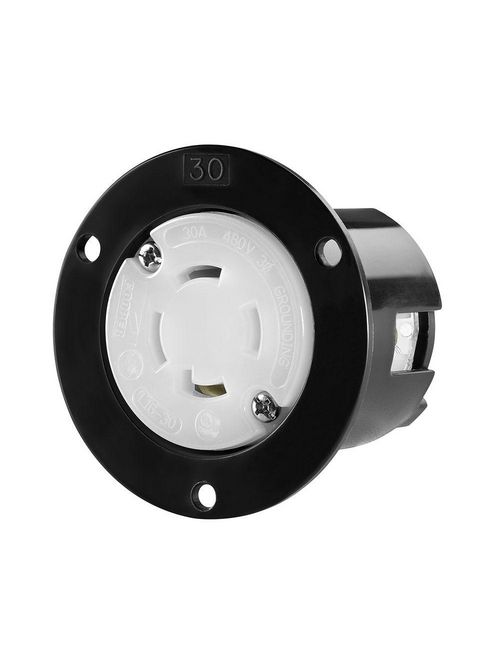

EWD AHL1630FO Flanged Outlet 30A 48
$112.04/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper Wiring Devices
Mfg Catalog # AHL1630FO
North Coast Part # 428468

Specifications

  • Special Features: Locking flanged inlet
  • Color: Black, white
  • Face/Body Material: Nylon
  • Wiring Method: Back
  • Material: Nylon
  • Allowable Wire Size: #14-8 AWG
  • Amperage Rating: 30A
  • Number Of Poles: Three-pole
  • Contact Material: Brass
  • Type: Locking flanged outlet
  • Device Grade: Extra heavy duty industrial specification grade
  • Nema Configuration: L16-30
  • Design Type: Flanged outlet
  • Number Of Wires: Four-wire, grounding
  • Operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Voltage Rating: 3Ø 480 V
  • Application: Industrial

General

  • UPC: 040893681054
  • Product Length/Depth: 3.06 IN
  • Product Height: 2.24 IN
  • Product Width: 3.06 IN
  • Product Weight: .7 LB
  • Warranty: Refer to warranty document.
  • Compliances: RoHS Compliant
  • Certifications: cULus Listed

Overview

UPC 04089368105
Family Brand Name Eaton
GTiN 00040893681054
Length 3.06 in
Color Black,White
Operating Temperature -40 To 140 F
Type Locking Flanged Outlet
Material Nylon
Applications LOCKING DEVICES
Weight .7 lb
Amperage 30 Amp
Number of Wires 4
Sub Brand Eaton Wiring Devices
Voltage 480 Volt
Wire Size 14-8 AWG
Cord Range 0.63 - 1.16 in
Connection Type Screw
NEMA L16-30
Number of Phases 3 Phase
Number of Poles 3 Pole
