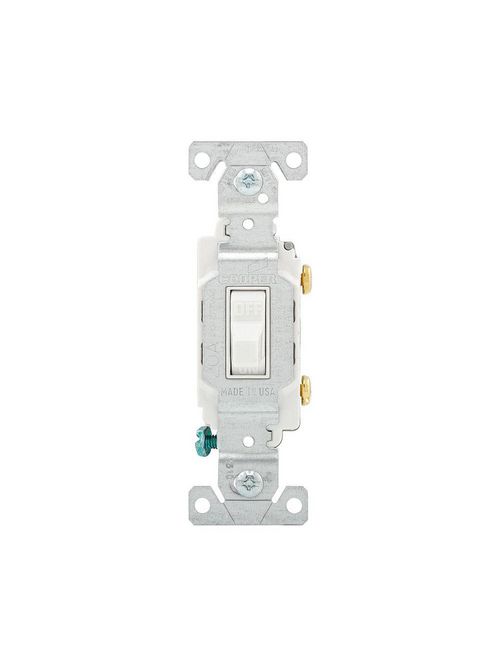

EWD CS120W Switch Toggle SP 20A 120
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$5.96/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper Wiring Devices
Mfg Catalog # CS120W
North Coast Part # 13537

Specifications

  • Height: 4.2 IN
  • Length: 1.3 IN
  • Width: .902 IN
  • Weight: .11 LB
  • Type: Toggle switch
  • Allowable Wire Size: #14-10 AWG
  • Amperage Rating: 20A
  • Application: Commercial
  • Mounting Type: Flush
  • Voltage Rating: 120/277V
  • Wiring Method: Side wire
  • Connector Type: Screw
  • Color: White
  • Load Type: Motor Control, Fan, LED, Incandescent, ELV, MLV, CFL, Flourescent, Halogen
  • Number Of Poles: Single-pole
  • Terminal Enclosure Material T: Brass
  • Material: PVC

Overview

UPC 03266448823
Length 1.3 in
Width .902 in
Color White
Voltage 120/277 Volt
Type General Purpose, Heavy Duty, 2-Position
Material PVC
Height 4.2 in
Weight .11 lb
Family Brand Name Eaton Wiring Devices
Amperage 20 Amp
Number of Poles 1 Pole
GTiN 00032664488238
Applications For High Quality in Low-Abuse Commercial Areas
Sub Brand Eaton Wiring Devices
Conductor Size 14-10 AWG
Grade Commercial
Actuator Toggle
Blade Dimensions 1.3 in W x 4.2 in H
Action Positive Snap
Operating Cycles 50000
