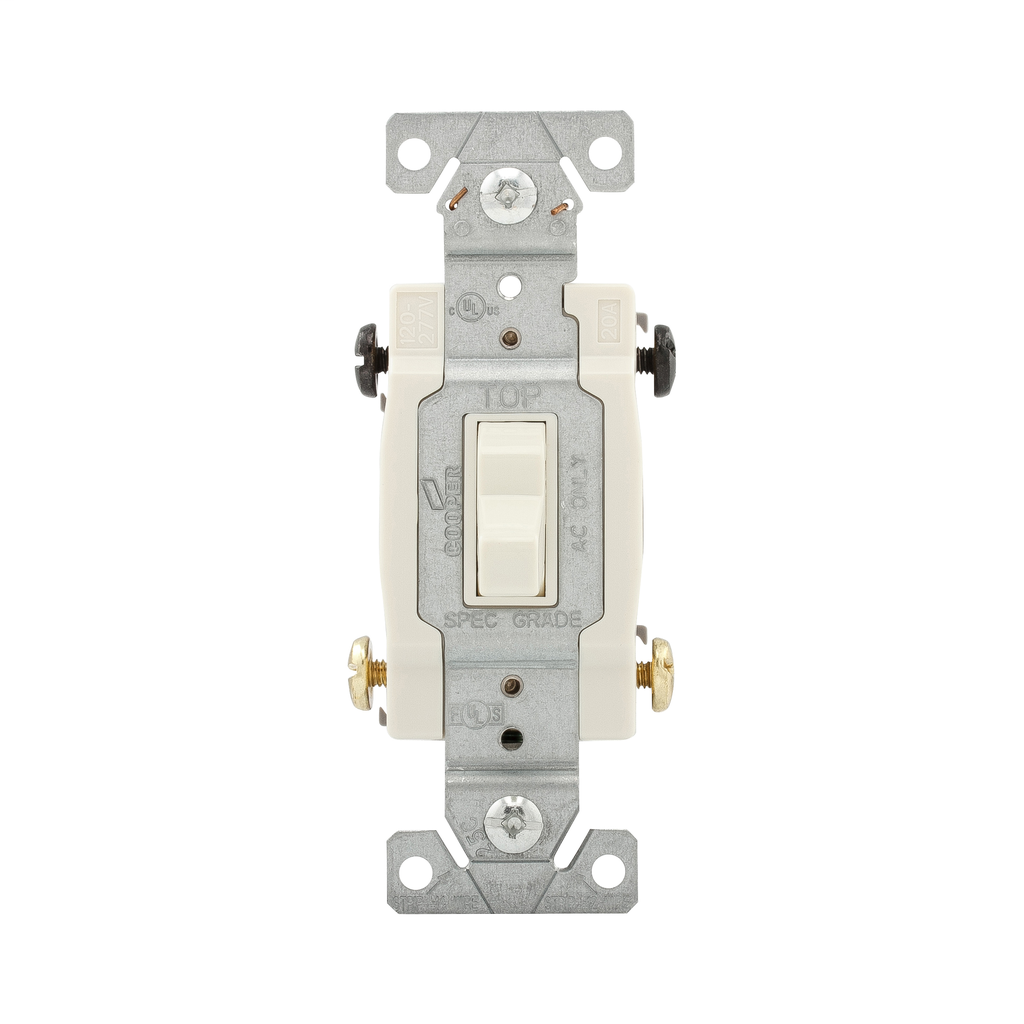

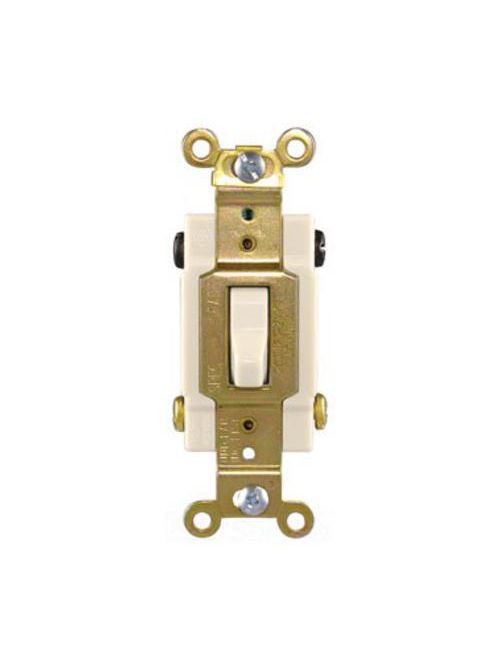

EWD CS420LA-BU SwitcSEE 03266473515
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$27.94/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper Wiring Devices
Mfg Catalog # CS420LA-BU
North Coast Part # 11791

Specifications

  • Height: 4.19 IN
  • Length: 1.3 IN
  • Width: 1.1 IN
  • Weight: .18 LB
  • Allowable Wire Size: #14-10 AWG
  • Application: Commercial
  • Mounting Type: Wall
  • Voltage Rating: 120/277V
  • Wiring Method: Side wire
  • Connector Type: Screw
  • Color: Light almond
  • Switch Type: Four-way
  • Terminal Enclosure Material T: Copper alloy
  • Terminals: 0.031 in

Categories

Overview

Length 1.3 in
Width 1.1 in
Color Light Almond
Voltage 120/277 Volt
Terminal Type 0.031 In
Height 4.19 in
Weight .18 lb
Family Brand Name EATON
Product UPC 03266458320
GTiN 00032664583209
Operating Temperature -40 to 65 C
Type Heavy Duty
Mounting Type Wall
Connection Type Screw
Actuator Compact Toggle
Contact Configuration Switches
Amperage 20 Amp
Size 0.87 In Depth X 1.13 In Width X 2.38 Back X 3.28 Screw to Screw
Applications Commercial
TC Connection Screw
Sub Brand ARROW HART
