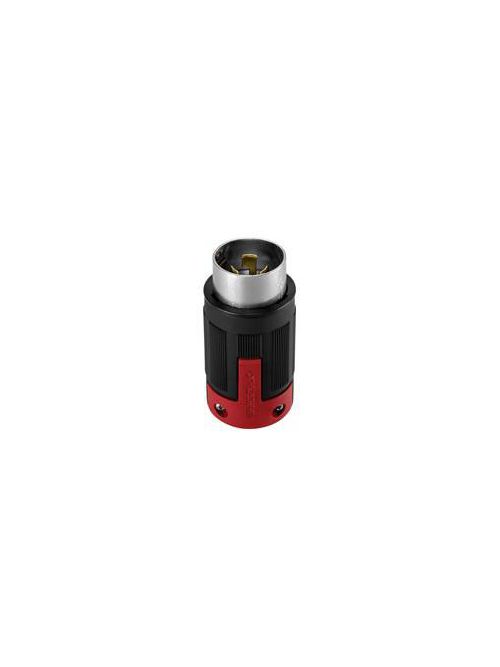

Arrow Hart Wiring CS8165EX 50 Amp 480 VAC 3-Phase 3-Pole 4-Wire Black and Red Nylon Non-NEMA Locking Plug
Product image thumbnail 0
Product image thumbnail 1
$90.39/ea
In Stock | 9 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper Wiring Devices
Mfg Catalog # CS8165EX
North Coast Part # 826853

Specifications

  • Special Features: Locking plug
  • Color: Red and black
  • Face/Body Material: Glass filled Nylon
  • Wiring Method: Back
  • Material: Nylon
  • Standard: California standard
  • Allowable Wire Size: #10-4 AWG
  • Amperage Rating: 50A
  • Number Of Poles: Three-pole
  • Contact Material: Zinc plated brass
  • Type: Locking plug
  • Device Grade: Extra Heavy-Duty
  • Nema Configuration: Non-NEMA
  • Design Type: Pro grip
  • Number Of Wires: Four-wire, grounding
  • Operating Temperature: -40°C to 105°C (-40°F to 221°F)
  • Voltage Rating: 3Ø 480 V
  • Cord Diameter: 0.44-1.06 in (11.1-26.0mm)
  • Application: Industrial

General

  • UPC: 032664663901
  • Product Length/Depth: 6.94 IN
  • Product Height: 3.38 IN
  • Product Width: 3.61 IN
  • Product Weight: 1.05 LB
  • Warranty: Refer to warranty document.
  • Certifications: cULus Listed

Categories

Overview

UPC 03266466390
Length 5.73 in
Width 3.1 in
Color Black,Red
Voltage 480 Volt
Material Nylon
Height 2.68 in
Weight 1.2 lb
Family Brand Name Eaton
Amperage 50 Amp
Number of Poles 3 Pole
Number of Wires 4
Item Long Description Eaton locking plug, #10-6 AWG, 50A, Industrial, 480V, Back wiring, Black, red, Non-NEMA, Three-pole, Four-wire, Nylon, 0.44 to 1.06 in, California standard
GTiN 00032664663901
Operating Temperature -40 To 105 C
Type Locking Plug
Applications LOCKING DEVICES
Wire Size 10-6 AWG
Number of Phases 3 Phase
Sub Brand Eaton Wiring Devices
