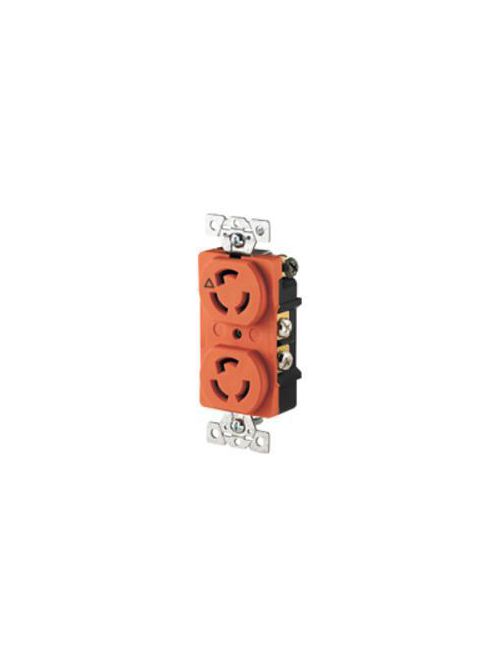

Arrow Hart Wiring IG4700 15 Amp 125 VAC 2-Pole 3-Wire NEMA L5-15R Orange Isolated Ground Locking Duplex Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$81.22/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Cooper Wiring Devices
Mfg Catalog # IG4700
North Coast Part # 605091

Specifications

  • Special Features: Isolated ground
  • Color: Orange
  • Face/Body Material: Glass filled Nylon
  • Wiring Method: Back and side
  • Material: Glass-filled Nylon
  • Allowable Wire Size: #14-10 AWG
  • Amperage Rating: 15A
  • Number Of Poles: Two-pole
  • Contact Material: Brass
  • Type: Locking receptacle
  • Device Grade: Extra heavy duty industrial specification grade
  • Nema Configuration: L5-15
  • Design Type: Isolated Ground duplex receptacle
  • Number Of Wires: Three-wire, grounding
  • Receptacle Type: Single, Isolated ground
  • Operating Temperature: -40°C to 115°C (-40°F to 239°F)
  • Voltage Rating: 125V
  • Application: Industrial

General

  • UPC: 032664547638
  • Product Length/Depth: 6.5 IN
  • Product Height: 1.5 IN
  • Product Width: 3.5 IN
  • Product Weight: .32 LB
  • Warranty: Refer to warranty document.
  • Compliances: RoHS Compliant
  • Certifications: UL Listed

Overview

UPC 03266454763
Length 1.61 in
Width 1.09 in
Color Orange
Voltage 125 Volt
Type Isolated Ground
Material Glass-filled Nylon
Height 3.64 in
Family Brand Name Eaton
Amperage 15 Amp
Number of Poles 2 Pole
Number of Wires 3
GTiN 00032664547638
Operating Temperature -40 To 115 C
Applications LOCKING DEVICES
Weight .32 lb
Sub Brand Eaton Wiring Devices
Wire Size 14-10 AWG
Connection Type Screw
Temperature Rating -40C To 70 C
NEMA L5-15
