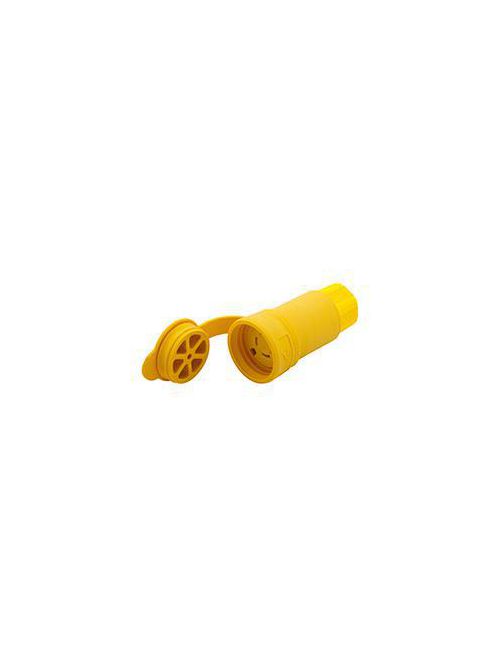

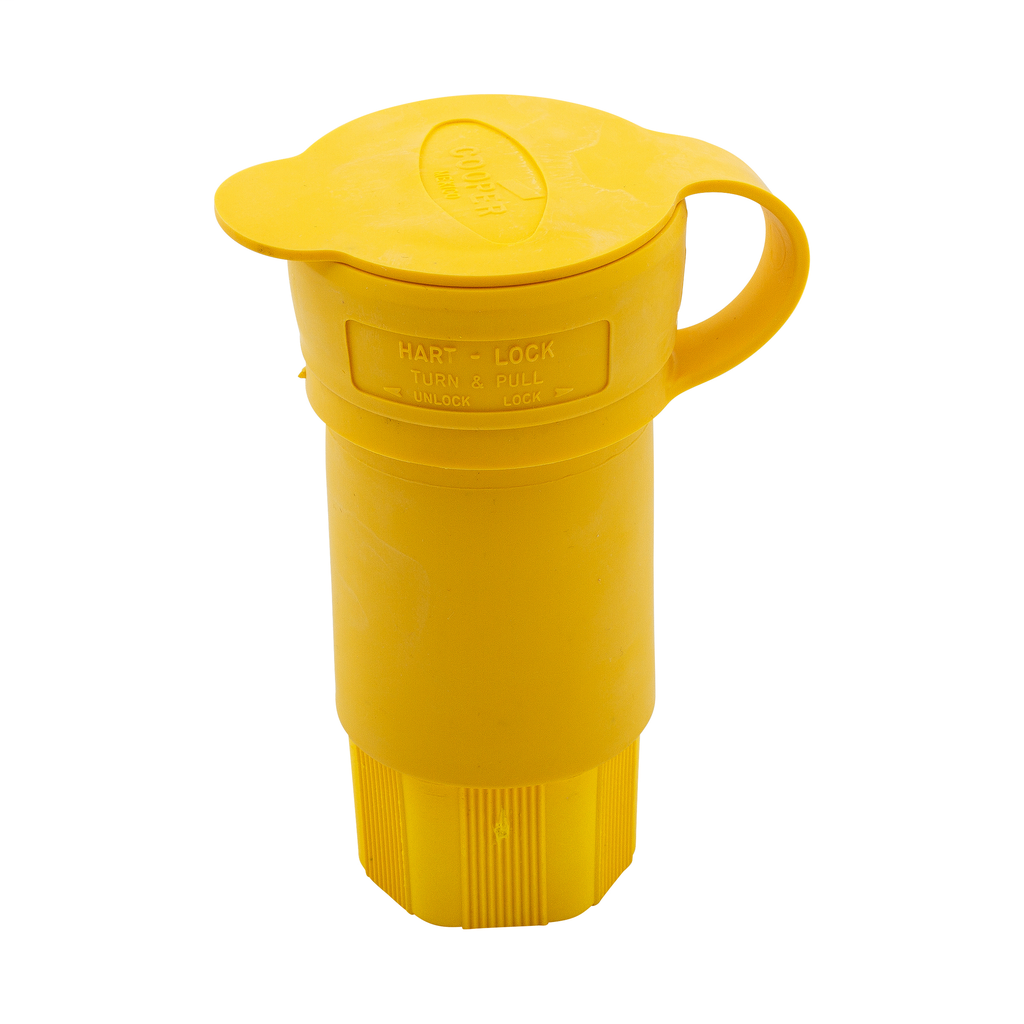

EWD L1430CW Conn WT 30A 125/250V 3P
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Cooper Wiring Devices
Mfg Catalog # L1430CW
North Coast Part # 548581


  • Special Features: Watertight
  • Color: Yellow
  • Face/Body Material: Nylon
  • Wiring Method: Back
  • Material: Santoprene thermoplastic elastomeric
  • Allowable Wire Size: #18-10 AWG
  • Amperage Rating: 30A
  • Number Of Poles: Three-pole
  • Contact Material: Nickel-plated brass
  • Type: Locking connector
  • Device Grade: Extra heavy duty industrial specification grade
  • Nema Configuration: L14-30
  • Design Type: Watertight locking connector
  • Environmental Resistance: NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, IP 67
  • Number Of Wires: Four-wire, grounding
  • Voltage Rating: 125/250 V
  • Cord Diameter: 0.43 to 1.15 in
  • Degree of Protection: IP67
  • Application: Industrial


  • UPC: 040893642093
  • Product Length/Depth: 6.75 IN
  • Product Height: 3.75 IN
  • Product Width: 4.25 IN
  • Product Weight: 1.025 LB
  • Warranty: Refer to warranty document.
  • Compliances: RoHS Compliant
  • Certifications: NOM


UPC 04089364209
Family Brand Name Eaton
Item Long Description Eaton Arrow Hart watertight locking connector, #18-10 AWG, 30A, Industrial, 125/250V, Back wiring, Yellow, Steel, Watertight, L14-30, Three-pole, Four-wire, Santoprene thermoplastic elastomeric, 0.43 to 1.15 in, IP67
GTiN 00040893642093
Length 6.75 in
Color Yellow
Voltage 125/250 Volt
Type Locking Connector
Material Santoprene Thermoplastic Elastomeric
Height 3.75 in
Weight 1.025 lb
Amperage 30 Amp
Number of Poles 3 Pole
Number of Wires 4
Sub Brand Eaton Wiring Devices
Wire Size 18-10 AWG
Cord Range 0.43 - 1.15 in
Connection Type Screw
NEMA L14-30
Environmental Conditions -40 To 75 C
