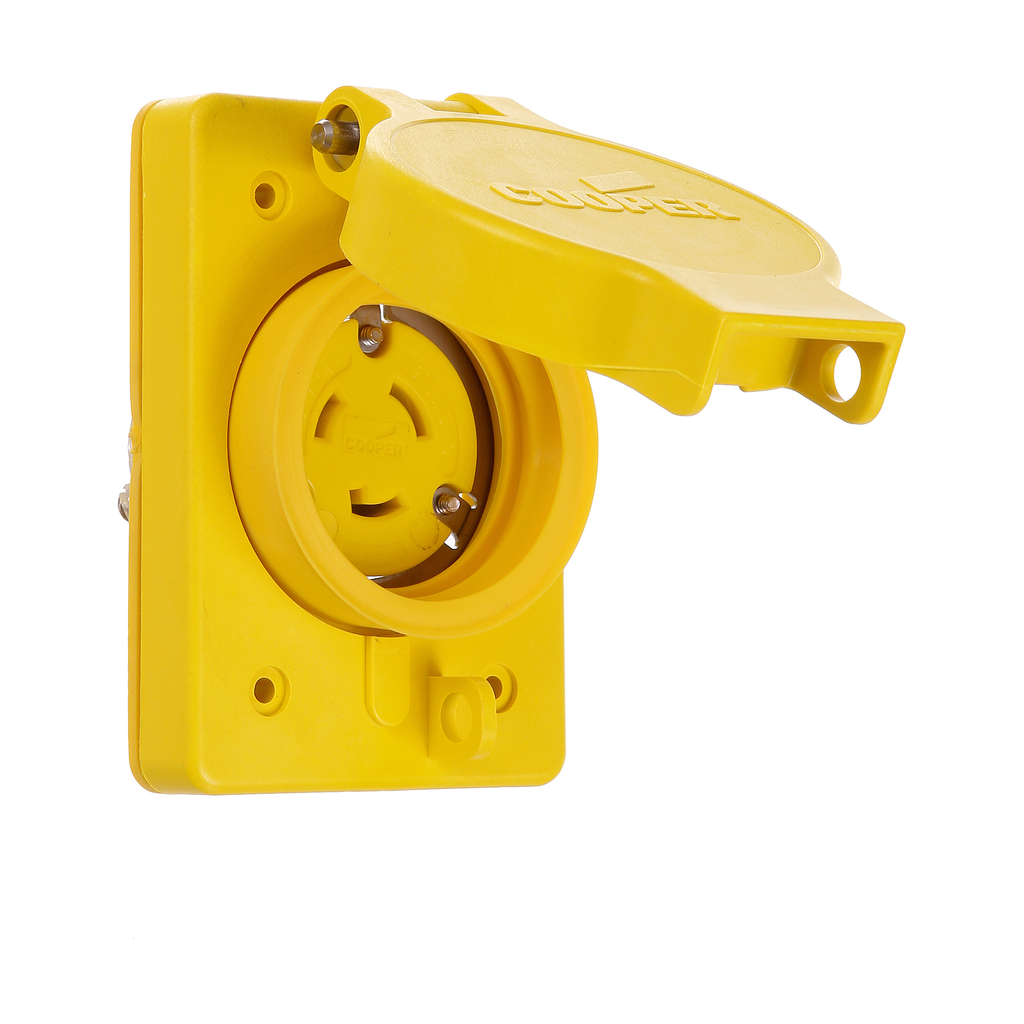

EWD L520RW Recp Single WT 20A 125V
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Cooper Wiring Devices
Mfg Catalog # L520RW
North Coast Part # 1164167


  • Special Features: Watertight
  • Color: Yellow
  • Face/Body Material: Glass filled Nylon
  • Wiring Method: Back
  • Material: Thermoplastic
  • Allowable Wire Size: #14-8 AWG
  • Amperage Rating: 20A
  • Number Of Poles: Two-pole
  • Contact Material: Nickel plated bronze
  • Type: Locking receptacle
  • Device Grade: Extra heavy duty industrial specification grade
  • Nema Configuration: L5-20
  • Design Type: Single receptacle
  • Environmental Resistance: NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, IP 66
  • Number Of Wires: Three-wire, grounding
  • Receptacle Type: Locking
  • Voltage Rating: 125V
  • Application: Industrial


  • UPC: 040893687612
  • Product Length/Depth: 6.75 IN
  • Product Height: 4 IN
  • Product Width: 4.25 IN
  • Product Weight: 1.025 LB
  • Warranty: Refer to warranty document.
  • Compliances: Federal Specifications Classification W-C375
  • Certifications: NOM


UPC 04089368761
Family Brand Name Eaton
Item Long Description Eaton Arrow Hart watertight locking receptacle, #14-8 AWG, 20A, Industrial, 125V, Back wiring, Yellow, Single, Watertight, L5-20, Two-pole, Three-wire, Thermoplastic
GTiN 00040893687612
Length 6.75 in
Width 4.25 in
Color Yellow
Voltage 125 Volt
Type Locking Receptacle
Material Thermoplastic
Height 4 in
Weight 1.025 lb
Wire Size 14-8 AWG
Connection Type Screw
NEMA L5-20
Amperage 20 Amp
Wiring Method Back
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Eaton Wiring Devices
