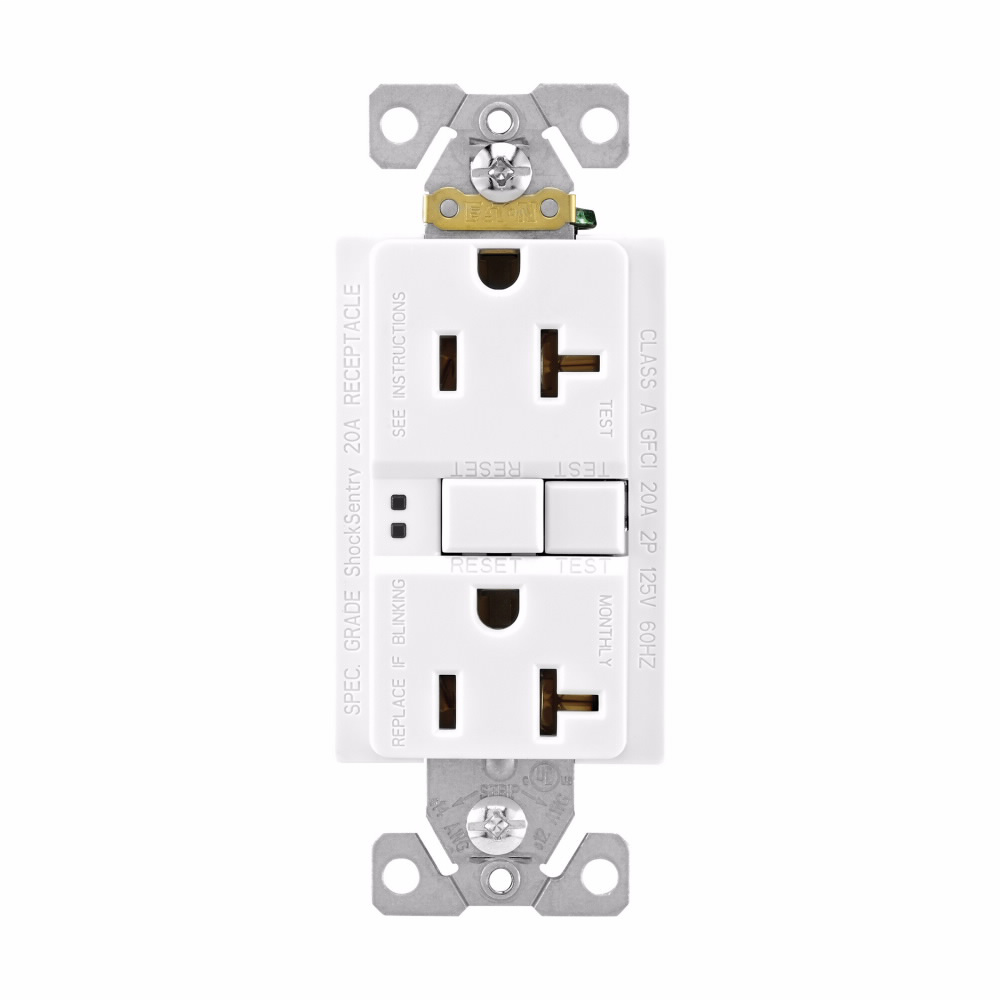

Eaton Wiring Devices SGF20W 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R White GFCI Duplex Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Already a Customer? Log in to view your pricing
Manufacturer Cooper Wiring Devices
Mfg Catalog # SGF20W
North Coast Part # 1165329


  • Circuit Interrupter Type: GFCI
  • Contact Material: Brass
  • Nema Configuration: 5-20R
  • Color: White
  • Device Type: Receptacle
  • Face/Body Material: PVC
  • Wiring Method: Back wire and side wire
  • Receptacle Type: Two-pole, three-wire, grounding
  • Voltage Rating: 125V
  • Amperage Rating: 20A


  • UPC: 032664742583
  • Product Length/Depth: 2.823 IN
  • Product Height: 4.635 IN
  • Product Width: 2.01 IN
  • Product Weight: .375 LB
  • Certifications: cULus Listed


UPC 03266474258
Family Brand Name Eaton Wiring Devices
Item Long Description Specification grade duplex ground fault circuit interrupter receptacle with back and side wire. ArrowHart line of self-test GFCI receptacle ensure electrical shock protection with periodical automatic testing. If no GFCI protection is present, the receptacle will render itself inoperable and a red indicator light will glow notifying the user there is no power and the device must be replaced.
GTiN 00032664742583
Length 2.823 in
Width 2.01 in
Color White
Voltage 125 Volt
Material Polypropylene Top, PVC Bottom
Conductor Size 14-10 AWG
Applications For Faulty Appliances or Tools, Wet or Damp Locations
Height 4.635 in
Grade Specification
Weight .375 lb
Connection Type Back and Side Wire
Temperature Rating -35 to 66 C
Grounding Self
Amperage 20 Amp
Dielectric Strength 2000 VAC
Blade Dimensions 1.3 in W x 1.65 in D x 4.19 in H
Environmental Conditions UL 94 Requirements, V2 Rated Flammability
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Arrow Hart
