Fluke Electronics FLK-3000FC 1000 VAC/VDC Wireless Multimeter

Features

Key Features

• Full featured multimeter that also reads results wirelessly from remote Fluke Connect® wireless modules
• Measures AC and DC voltage to 1000 V, AC and DC current, and temperature
• Shows up to four readings simultaneously on a bright white backlit display
• Sends measurement data to your smartphone
• Safety rated CAT III 1000 V, Cat IV 600 V; IP54

Product Overview

• The Fluke 3000 FC with Fluke Connect provides all the facts right in the field.
• With its precision, reliability, and ease of use, the Fluke 3000 FC Wireless Multimeter has all the essential electrical and electronic troubleshooting features professional technicians need. It gives you true-RMS voltage and current measurements, 6000-count resolution, manual and automatic ranging, plus a frequency, capacitance, resistance, continuity and diode measurements.
• Reduces arc flash risk
• Independently tested for safe use in CAT IV 600V/CAT III 1000 V environments, the Fluke 3000 FC DMM and Fluke Connect wireless modules put tools, not your body, near live electrical panels. Just de-energize the cabinet; open the panel while wearing PPE; and connect the remote modules—voltage modules, current clamps, flexible current loops or thermometers. Then read the results on the 3000 FC from a safe distance up to away. You can view the meter measurement, plus readings from up to three wireless modules all on the same screen. And by separating yourself from hazardous measurement situations you’ll reduce the risk of arc flash.
• Gives the full picture in real time.

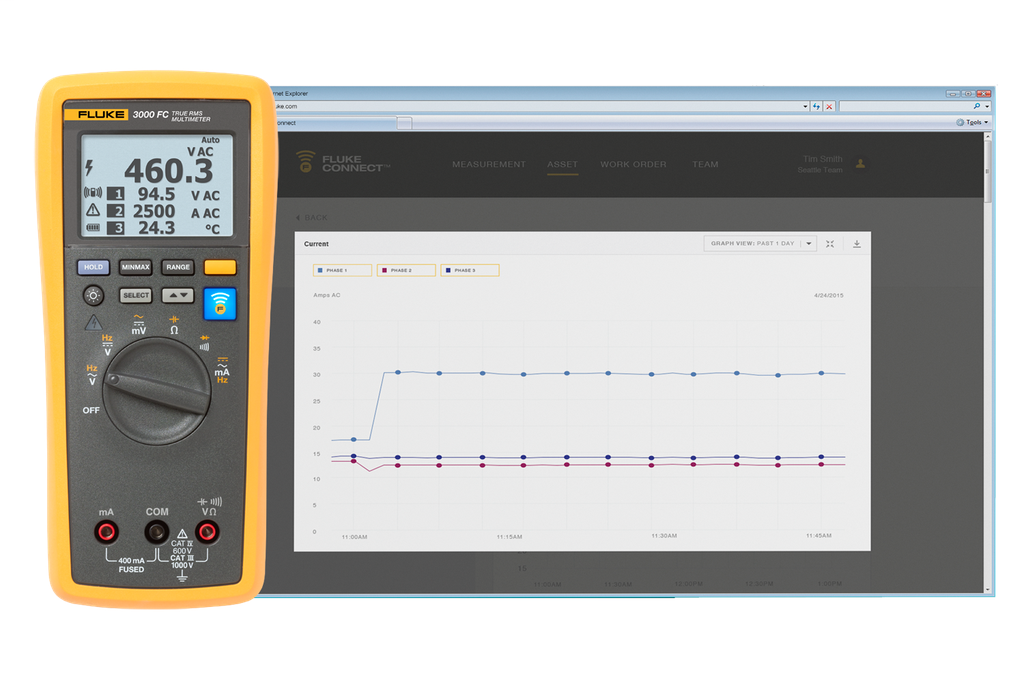

• With Fluke Connect-enabled tools you can connect multiple remote modules in different parts of the system and view the interaction between remote test points on a single screen, in real time. Create and email reports right from the field, or download the data to a PC for further analysis. The Fluke 3000 FC connects to your smartphone through Bluetooth so you can send measurement data from the meter to your phone and share it with your team anytime, from anywhere.
• Other useful capabilities:

Other Useful Features

• Record measurements over time and monitor changes live on your phone.
• Share the results using Fluke Cloud™ storage and ShareLive™ video call.
• Provides True-RMS voltage and current measurements with 6000-count resolution
• Share results with remote team members instantly with ShareLive™ video call
• Includes continuity, resistance, diode test, capacitance, and frequency tests, plus MIN/MAX recording
• Provides 0 09% basic accuracy
• Works with a standard amp clamp or with a flexible iFlex clamp
• Shows meter measurement and readings from up to three modules simultaneously
• Allows mixing and matching modules to meet your specific measurement needs
• Current, voltage and temperature modules are available separately or in Fluke Connect kits
• Runs on three AA Alkaline batteries, providing 250 hours minimum battery life
• Comes with three-year standard warranty

Additional Features

• 1. AC voltage ranges are specified from 1% of range to 100% of range.2. Crest factor of ≤ 3 at full scale up to 500 V, decreasing linearly to crest factor < 1.5 at 1000 V.3. For non-sinusoidial waveforms, add ± (2% of reading + 2% full scale) typical, for crest factor up to 3.4. Do not exceed 107 V-Hz.
• DC Voltage, Continuity, Resistance, Diode Test and Capacitance
• 1. In the 9999 μF range for measurements to 1000 μF, the measurement accuracy is 1.2% + 2.
• 1. All AC current ranges are specified from 5% of range to 100% of range.2. Input burden voltage (typical): 400 mA input 2 mV/mA.3. 400.0 mA accuracy specified up to 600 mA overload.
• 1. Frequency is specified up to 99.99 kHz in volts and up to 10 kHz in amps.

Includes

• True-RMS Wireless Multimeter
• TL175 Test Leads
• AC175 Alligator Clips

Specifications

AC Voltage

• Range¹ / resolution: 600.0 mV / 0.1 mV6.000 V / 0.001 V60.00 V / 0.01 V600.0 V / 0.1 V1000 V / 1 V
• Accuracy234: 45 Hz to 500 Hz: 1.0% + 3
• Accuracy: 500 Hz to 1 kHz: 2.0% + 3
• mV Range / resolution: 600.0 mV / 0.1 mV
• mV Accuracy: 0.09% + 2
• V Range / resolution: 6.000 V / 0.001 V60.00 V / 0.01 V600.0 V / 0.1 V1000 V / 1 V
• V Accuracy: 0.09% + 20.15% + 2
• ))) Range / resolution: 600 Ω / 1 Ω
• ))) Accuracy: Meter beeps at < 25 Ω, beeper detects opens or shorts of 250 μs or longer.
• Ω Range / resolution: 600.0 Ω / 0.1 Ω6.000 kΩ / 0.001 kΩ60.00 kΩ / 0.01 kΩ60.00 kΩ / 0.1 kΩ600.0 kΩ / 0.001 MΩ50.00 MΩ / 0.01 MΩ
• Ω Accuracy: 0.5% + 20.5% + 11.5% + 3
• Diode test Range / resolution: 2.000 V / 0.001 V
• Diode test Accuracy: 1% + 2
• µF Range / resolution: 1000 nF / 1 nF10.00 μF / 0.01 μF100.0 μF / 0.1 μF9999 μF1 / 1 μF
• µF Accuracy: 1.2% + 210% typical

AC and DC Current

• mA AC(45 Hz to 1 kHz) Range1 / resolution: 60.00 mA / 0.01 mA400.0 mA3 / 0.1 mA
• mA AC Accuracy: 1.5% + 3
• mA DC2 Range1 / resolution: 60.00 mA / 0.01 mA400.0 mA3 / 0.1 mA
• mA DC Accuracy: 0.5% + 3

Frequency

• Range / resolution: 99.99 Hz / 0.01 Hz999.9 Hz / 0.1 Hz9.999 kHz / 0.001 kHz99.99 kHz / 0.01 kHz
• Accuracy1: 0.1% + 1

mA Function

• Overload protection: Fused, 44/100 A, 1000 V FAST Fuse
• Overload: 600 mA overload for 2 minutes maximum, 10 minutes rest minimum

MIN/MAX Recording Accuracy

• DC functions: ± 12 counts for changes > 350 mS in duration.
• AC functions: ± 40 counts for changes > 900 mS in duration.

General Specifications

• Maximum voltage between any terminal and earth ground: 1000 V DC or AC RMS
• Ω fuse protection from A inputs: 0.44 A (44/100 A, 440 mA), 1000 V FAST Fuse, Fluke specified part only
• Display (LCD) Update rate: 4/sec
• Display (LCD): Volts, amps, ohms: 6000 counts
• Display (LCD) Frequency: 10,000 counts
• Capacitance: 1,000 counts
• Battery type: Three AA Alkaline batteries, NEDA 15A IEC LR6
• Battery life: 250 hours minimum
• RF communications: 2.4 GHZ ISM Band
• RF communication range Open air, unobstructed: Up to 20m
• RF communication range Obstructed, sheetrock wall: Up to 6.5m
• Obstructed, concrete wall, or steel electrical enclosure: Up to 3.5m
• Temperature: Operating: -10°C to 50°C
• Temperature Storage: -40°C to 60°C
• Temperature coefficient: 0.1 X (specified accuracy) / °C (< 18°C or > 28°C)
• Relative humidity: 0% to 90% (0°C to 35°C)0% to 75% (35°C to 40°C)0% to 45% (40°C to 50°C)
• Altitude: Operating: 2,000 m
• Altitude Storage: 12,000 m
• Electromagnetic compatibilityEMI, RFI, EMC, RF: EN 61326–1:2006, EN 61326–2–2:2006ETSI EN 300 328 V1.7.1:2006, ETSI EN 300 489V1.8.1:2008FCC Part 15 Subpart C Sections 15.207, 15.209, 15.249FCCID : FCC: T68–FDMMBLE IC: 6627A–FDMMBLE
• Safety compliance: ANSI / ISA 61010–1 / (82.02.01): 3rd editionCAN / CSA-C22.2 No 61010-1-12: 3rd editionUL 61010–1: 3rd editionIEC / EN 61010–1:2010
• Certifications: CSA, FCC, CE
• Ingress Protection (IP) rating: IP54
• Pollution Degree: 2
• Size (H x W x L): 4.75 x 9.3 x 20.7 cm (1.87 x 3.68 x 8.14 in)
• Weight: 340 g (12 oz)
• Warranty: Three years
