Fluke Electronics FLK-A3000FC KIT Wireless Essential Kit

Features

Key Features

• AC and DC voltage measurements to 1000V
• AC and DC current with 0.01 mA resolution
• Continuity, resistance, diode test, capacitance and frequency measurements
• MIN/MAX recording
• CAT III 1000 V, Cat IV 600 V; IP54
• True-RMS AC clamp meter
• Measure up to 400 A AC
• Use as a standalone meter or as part of the system
• Logging function for recording and saving up to 65,000 readings
• Inrush function
• The Fluke a3000 FC Wireless AC Current Clamp Kit provides measurement of many common electrical parameters
• The Fluke 3000 FC Series Wireless Multimeter with the Fluke Connect® app has all the essentials for convenient test and measurement troubleshooting:
• The Fluke a3000 FC Wireless AC Current Clamp Module has all the essentials for convenient test and measurement troubleshooting:

Product Overview

• The Fluke a3000 FC Wireless AC Current Clamp Kit is part of the Fluke Connect® team of wireless test tools
• Connect the a3000 FC Wireless AC Current Clamp Module to your test point, and view the results up to 20 meters away on the 3000 FC Wireless Digital Multimeter.
• You’ll save time, with less run-around collecting multiple measurements. Use multiple modules for measurements on three-phase systems, as a stand-alone measurement tool or combine with other Fluke Connect™ modules as a system for multiple measurements.
• From short distances, you can even view readings from modules through closed electrical panels. Plus no more writing down data as the FC Wireless AC Current Clamp Module captures up to 65,000 sets of time stamped min/max/avg readings, using the optional PC adapter. Fluke Connect wireless test tools also offer increased safety by letting you view readings in a separate location from the test point.
• Now you can take readings on moving machinery, with only the measurement module in harm’s way.

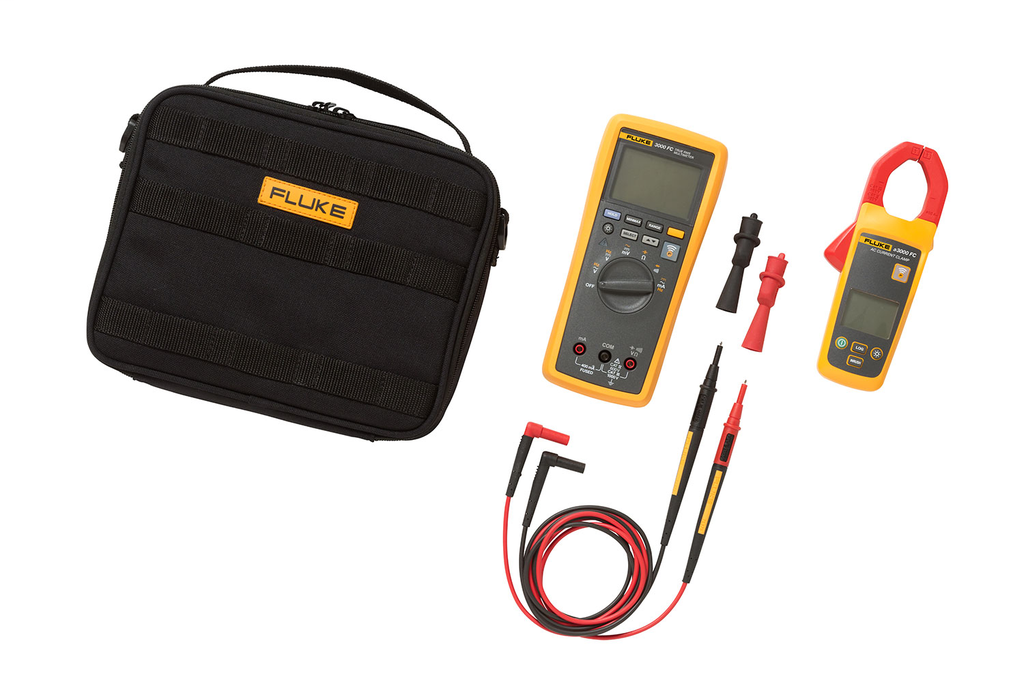

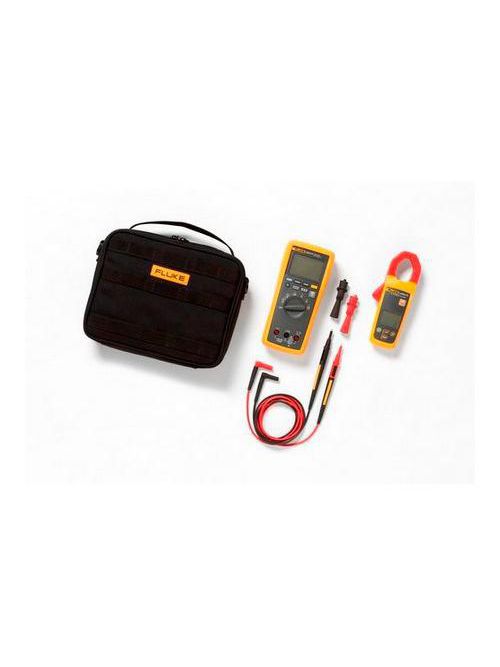

Includes

• Fluke 3000 FC Series Wireless Multimeter
• Fluke a3000 FC Wireless AC Current Clamp Module
• TL175 Test Leads
• AC175 Alligator Clips

Specifications

• Range: 0.5 A to 400.0 A
• Resolution: 0.1 A
• Accuracy: 400.0 A: 2% ±5 digits (10 Hz to 100 Hz), 2.5% ±5 digits (100 Hz to 500 Hz)
• Inrush: Max displayed reading: 999.9A
• Crest factor (50 Hz / 60 Hz): 3 at 500 A 2.5 at 600 A 1.42 at 1000 A Add 2% for C.F. > 2
• LCD w/backlight: 3 1/2 digits
• Log rate/interval: 1 sec minimum/adjustable by PC
• Battery type: 2 AA, NEDA 15 A, IEC LR6
• Battery life: 400 hours
• Memory: Record up to 65,000 readings
• RF communications: 2.4 GHZ ISM Band
• RF communication range Open air, unobstructed: Up to 20 m
• RF communication range Obstructed, sheetrock wall: Up to 6.5 m
• RF communication range Obstructed, concrete wall or steel electrical enclosure: Up to 3.5 m
• Operating temperature: -10°C to +50°C
• Storage temperature: -40°C to +60°C
• Temperature coefficient: Add 0.1 x (specified accuracy) / °C ( 28°C)
• Operating humidity: 90% at 35°C 75% at 40°C 45% at 50°C
• Altitude: Operating: 2,000 m
• Altitude Storage: 12,000 m
• EMC: EN 61326-1:2006
• Safety compliance: IEC 61010-1, 600 V CAT III, 3rd edition Pollution Degree 2
• Safety rating: CAT III 600 V
• Certifications: CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE
• Ingress Protection (IP) rating: IP30
• Pollution Degree: 2
• Jaw opening: 34 mm (1.33 in)
• Size (H x W x D): 20.3 x 7.49 x 3.55 cm (8 x 2.95 x 1.4 in)
• Weight: .22 kg (8 oz)
• Warranty: Three years
