Fluke Electronics FLK-A3001FC-KIT Wireless Essential Kit
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$469.99/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Fluke
Mfg Catalog # FLK-A3001FC-KIT
North Coast Part # 1009580

Features

Key Features

  • AC and DC voltage measurements to 1000V
  • AC and DC current with 0.01 mA resolution
  • Continuity, resistance, diode test, capacitance and frequency measurements
  • MIN/MAX recording
  • CAT III 1000 V, Cat IV 600 V; IP54
  • Measure up to 2500 A AC
  • Use as a standalone meter or as part of the system
  • Logging function for recording and saving up to 65,000 readings
  • Inrush function
  • The Fluke a3001 FC Wireless iFlex® AC Current Clamp Kit provides measurement of many common electrical parameters
  • The Fluke 3000 FC Series Wireless Multimeter with the Fluke Connect® app has all the essentials for convenient test and measurement troubleshooting:
  • The Fluke a3001 FC Wireless iFlex® AC Current Module allows you to measure around awkward sized conductors or get into tight spaces and makes wire access easier:

Product Overview

  • Fluke a3001 FC Wireless iFlex® AC Current Clamp Kit is part of the Fluke Connect® team of wireless test tools
  • Connect the a3001 FC Wireless AC Current Module and flexible current probe to your test point, and view the results up to 20 meters away on the 3000 FC Wireless Digital Multimeter.
  • You’ll save time, with less run-around collecting multiple measurements. Use multiple modules for measurements on three-phase systems, as a stand-alone measurement tool or combine with other Fluke Connect™ modules as a system for multiple measurements.
  • From short distances, you can even view readings from modules through closed electrical panels. Plus no more writing down data as the FC Wireless AC Current Module captures up to 65,000 sets of time stamped min/max/avg readings, using the optional PC adapter. Fluke Connect wireless test tools also offer increased safety by letting you view readings in a separate location from the test point.
  • Now you can take readings on moving machinery, with only the measurement module in harm’s way.

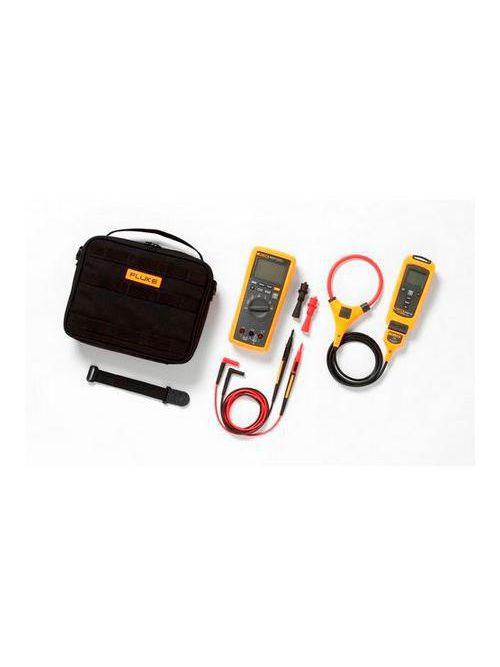

Includes

  • Fluke 3000 FC Series Wireless Multimeter
  • Fluke a3001 FC Wireless iFlex AC Current Module
  • TL175 Test Leads
  • AC175 Alligator Clips
  • iFlex i2500-10 Flexible Current Probe

Specifications

  • Range: 0.5 A to 2500 A AC
  • Resolution: 0.1 A
  • Accuracy: 3% ±5 digits (5 Hz to 500 Hz)
  • Crest factor (50 Hz / 60 Hz): 3.0 at 1100 A 2.5 at 1400 A 1.42 at 2500 A Add 2% for C.F. > 2
  • LCD w/ backlight: 3 1/2 digits
  • Log rate/interval: 1 sec minimum/adjustable by PC or front panel
  • Battery type: 2 AA, NEDA 15 A, IEC LR6
  • Battery life: 400 hours
  • Memory: Record up to 65,000 readings
  • RF communications: 2.4 GHZ ISM Band
  • RF communication range Open air, unobstructed: Up to 20 m
  • RF communication range Obstructed, sheetrock wall: Up to 6.5 m
  • RF communication range Obstructed, concrete wall or steel electrical enclosure: Up to 3.5 m
  • Operating temperature: -10°C to +50°C
  • Storage temperature: -40°C to +60°C
  • Temperature coefficient: Add 0.1 x (specified accuracy) / °C ( 28°C)
  • Operating humidity: 90% at 35°C 75% at 40°C 45% at 50°C
  • Altitude: Operating: 2,000 m
  • Altitude Storage: 12,000 m
  • EMC: EN 61326-1:2006
  • Safety compliance: IEC 61010-1, 600 V CAT IV/1000 V CAT III, 3rd edition
  • Safety rating: CAT IV 600 V, CAT III 1000 V
  • Certifications: CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE
  • Ingress Protection (IP) rating: IP42
  • Pollution Degree: 2
  • Jaw opening: 25.4 cm (10 in) coil
  • Size (H x W x D): 16.5 x 6.35 x 1.4 cm (6.5 x 2.5 x 1.4 in)
  • Weight: .22 kg (8 oz)
  • Warranty: Three years

Overview

UPC 09596972423
Item Long Description The Fluke 3000 FC Series Wireless Multimeter with the Fluke Connect app has all the essentials for convenient test and measurement troubleshooting AC and DC voltage measurements to 1000 V. AC and DC current with 0.01 mA resolution. Continuity, resistance, diode test, capacitance and frequency measurements. MIN/MAX recording. CAT III 1000 V, Cat IV 600 V, IP54. Includes Fluke 3000 FC Series Wireless Multimeter, Fluke a3001 FC Wireless iFlex AC Current Module, TL175 Test Leads, AC175 Alligator Clips, iFlex i2500-10 Flexible Current Probe.
GTiN 00095969724234
Warranty Length 3 yr
Operating Temperature -10 To 50 C
Voltage 1000 Volt
Type Multimeter
Battery Type 2 AA,IEC LR6,NEDA 15 A
Applications True-RMS Digital Multimeter for troubleshooting and repair of electrical and electronic systems
Weight 8 oz
Jaw Opening 10 in
Frequency 99.99 Hz
Family Brand Name Fluke
Safety Rated CAT III 1000 V,CAT IV 600 V
Amperage 400 Amp
Blade Dimensions 1.87 (H) in x 3.68 (W) in x 8.14 (L) in IN
Enclosure Material Hard Plastic
Accuracy 3 %
Enclosure Hard Plastic
Resistance 50 ohm
Storage Temperature -40 To 60 C
