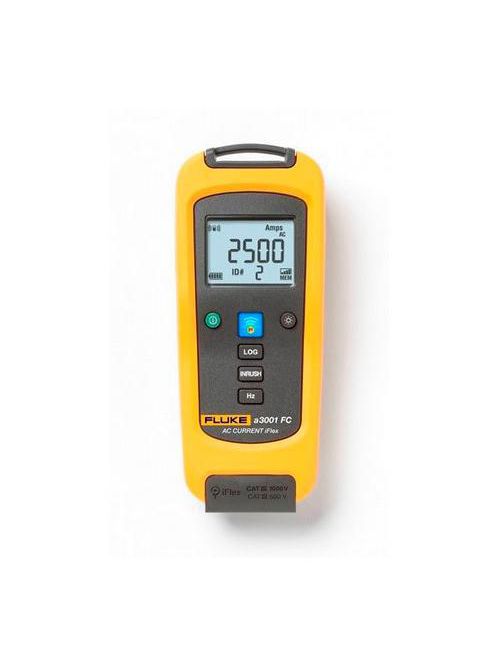

Fluke Electronics FLK-A3001FC FC Wireless AC Current Module
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$321.75/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Fluke
Mfg Catalog # FLK-A3001FC
North Coast Part # 1009596

Features

Key Features

  • Fluke 3000 FC DMM
  • Fluke Ti200/300/400Thermal Camera
  • PC via optional pc3000 FC Adapter
  • Fluke Connect Mobile app
  • Measure up to 2500 A AC
  • Use as a standalone meter or as part of the system
  • Logging function for recording and saving up to 65,000 readings
  • Inrush function
  • Magnetic hanging strap
  • The Fluke a3001 FC Wireless iFlex AC Current Module is a fully functional true-RMS current meter that wirelessly relays measurements to other Fluke Connect® enabled master units, listed below:
  • The iFlex® Wireless Current Module allows you to measure around awkward sized conductors or get into tight spaces and makes wire access easier:

Product Overview

  • See it. Save it. Share it.
  • All the facts, right in the field. The Fluke a3001 FC Wireless iFlex AC Current Module is one member of a family of wireless test tools that let you share test data using the Fluke Connect® app with ShareLive™ video call.
  • Fluke Connect Wireless Test Tools put tools, not your body, near live electrical panels. It's simple. Connect the a3001 FC current module, or any of the other Fluke Connect remote modules, and read the results on the Fluke Connect Wireless Multimeter or a portable PC from a safe distance.
  • Better still, the Fluke Connect test tools can send measurement data to your smartphone, so you can save and share measurements from the field with your team anytime, from anywhere.
  • Don't get bogged down while isolating intermittent electrical faults
  • Timing is everything when trying to find an intermittent problem and the hard part is, it doesn't always show up when you have your meter connected. We've solved that problem with Fluke Connect - leave your remote modules connected to log measurements and walk away to address other issues. You can then download the data for further analysis.
  • Work safely near electrical panels while wearing less PPE
  • Personal protective equipment (PPE) can save your life, but it's bulky, hot and hard to work in. With Fluke Connect, there's no need to work in front of live open panels or moving/hazardous machinery.
  • Picture having the ability to access live readings without being exposed to the live panel. It's easy. Just de-energize the cabinet, open the panel while wearing PPE and connect one or more a3001 FC modules. Close the cabinet, re-energize and let the Fluke Connect system work, reducing the risk of arc flash by separating yourself from hazardous measurement situations.
  • Testing 3-phase is now faster and cheaper
  • When your cabinet is de-energized, attach a Fluke a3001 FC Wireless iFlex AC Current Module to each phase. Close, re-energize and start taking readings. What used to take hours and use costly equipment can be done in minutes with an affordable Fluke Connect wireless system.
  • Take 3-phase measurements in 1/3 of the time. Add your laptop and go from logging to analysis and diagnosis.
  • You can solve problems faster by seeing live measurements from multiple test points on a single screen. Using a3001 FC current modules, you can:

Other Useful Features

  • Take 3-phase measurements in 1/3 the time of previous methods.

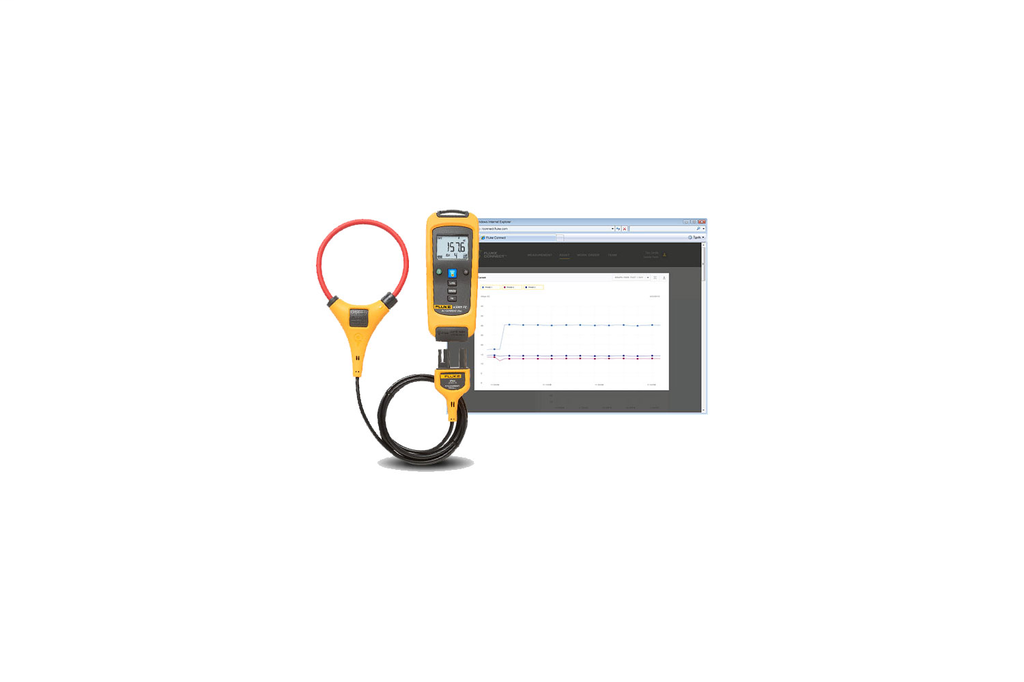

  • Send data to your laptop and go from logging to analysis and diagnosis.
  • Record over time to monitor circuit load changes for an hour, a shift or a week.
  • Use the Fluke Connect wireless USB adapter to collect logged data from remote modules by walking past a working module and downloading logged data.
  • Perform for analysis with your PC and share the results using Fluke Cloud™ storage and ShareLive™ video call. View data or graphs to get input from team members.

Additional Features

  • Note: Not compatible with Fluke CNX test tools

Includes

  • True-RMS flexible current meter
  • iFlex i2500-10 Flexible Current Probe

Specifications

  • Range: 0.5 A to 2500 A AC
  • Resolution: 0.1 A
  • Accuracy: 3% ± 5 digits (5 Hz to 500 Hz)
  • Crest factor (50 Hz/60 Hz): 3.0 at 1100 A2.5 at 1400 A1.42 at 2500 AAdd 2% for C.F. > 2
  • LCD w/backlight: 3 1/2 digits
  • Log rate/interval: 1 sec minimum/adjustable by PC or front panel
  • Battery type: 2 AA, NEDA 15 A, IEC LR6
  • Battery life: 400 hours
  • Memory: Record up to 65,000 readings
  • RF communications: 2.4 GHZ ISM Band
  • RF communication range Open air, unobstructed: Up to 20 m
  • RF communication range Obstructed, sheetrock wall: Up to 6.5 m
  • RF communication range Obstructed, concrete wall or steel electrical enclosure: Up to 3.5 m
  • Operating temperature: -10°C to +50°C
  • Storage temperature: -40°C to +60°C
  • Temperature coefficient: Add 0.1 X (specified accuracy) / °C (< 18°C or > 28°C)
  • Operating humidity: 90% at 35°C75% at 40°C45% at 50°C
  • Altitude: Operating: 2,000 m
  • Altitude Storage: 12,000 m
  • EMC: EN 61326-1:2006
  • Safety compliance: IEC 61010-1, 600 V CAT IV/1000 V CAT III, 3rd edition
  • Safety rating: CAT IV 600 V, CAT III 1000 V
  • Certifications: CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE
  • Ingress Protection (IP) rating: IP42
  • Pollution Degree: 2
  • Jaw opening: 25.4 cm (10 in) coil
  • Size (HxWxD): 16.5 cm x 6.35 cm x 1.4 cm (6.5 in x 2.5 in x 1.4 in)
  • Weight: .22 kg (8 oz)
  • Warranty: Three years

Overview

UPC 09596972356
GTiN 00095969723565
Warranty Length 3 yr
Operating Temperature -10 To 50 C
Type Current Clamp Meter
Battery Type IEC LR6,2 AA,NEDA 15 A
Applications True-RMS current clamp meter that wirelessly relays measurements to other Fluke Connect enabled master units
Weight 8 oz
Jaw Opening 10 in
Family Brand Name Fluke
Safety Rated CAT IV 600 V,CAT III 1000 V
Amperage 2500 Amp
Blade Dimensions 6.5 (H) x 2.5 (W) x 1.4 (D) IN
Enclosure Material Hard Plastic
Accuracy 3 %
Enclosure Hard Plastic
Storage Temperature -40 To 60 C
