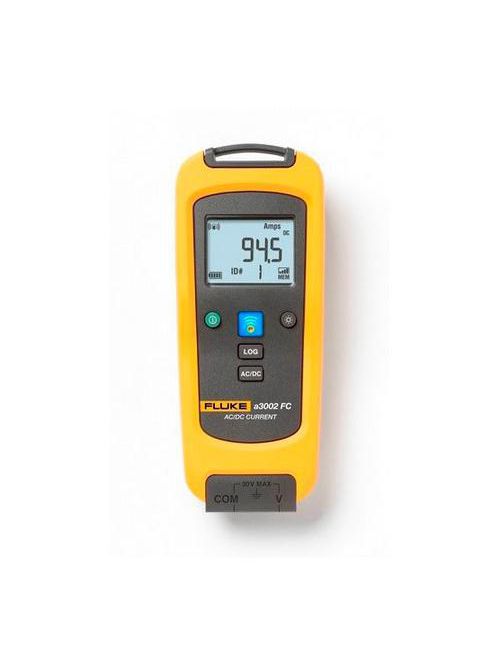

Fluke Electronics FLK-A3002FC Wireless Current Module
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$167.30/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Fluke
Mfg Catalog # FLK-A3002FC
North Coast Part # 1009571

Features

Key Features

  • Fluke 3000 FC DMM
  • Fluke Ti200/300/400Thermal Camera
  • PC via optional pc3000 FC Adapter
  • Fluke Connect Mobile app
  • Measure up to 400 AAC or 400 ADC with i410 (sold separately)
  • Measure up to 600 AAC or 1000 ADC with i1010 (sold separately)
  • Use as a standalone meter or as part of the system
  • Logging function for recording and saving up to 65,000 readings
  • The Fluke a3002 FC Wireless AC/DC Current Clamp Module is designed to be used with the i410 or i1010 AC/DC current clamps (not included with module). The a3002 FC AC/DC current module wirelessly relays measurements to other Fluke Connect® enabled master units, listed below:
  • The Fluke a3002 FC main features include:

Product Overview

  • See it. Save it. Share it.
  • All the facts, right in the field. The Fluke a3002 FC Wireless AC/DC Current Module is one member of a family of wireless test tools that let you share test data using the Fluke Connect® app with ShareLive™ video call.
  • Fluke Connect Wireless Test Tools put tools, not your body, near live electrical panels. It's simple. Connect the a3002 FC current module, or any of the other Fluke Connect remote modules, and read the results on the Fluke Connect Wireless Multimeter or a portable PC from a safe distance.
  • Better still, the Fluke Connect test tools can send measurement data to your smartphone, so you can save and share measurements from the field with your team anytime, from anywhere.
  • Don't get bogged down while isolating intermittent electrical faults
  • Timing is everything when trying to find an intermittent problem and the hard part is, it doesn't always show up when you have your meter connected. We've solved that problem with Fluke Connect - leave your remote modules connected to log measurements and walk away to address other issues. You can then download the data for further analysis.
  • Work safely near electrical panels while wearing less PPE
  • Personal protective equipment (PPE) can save your life, but it's bulky, hot and hard to work in. With Fluke Connect, there's no need to work in front of live open panels or moving/hazardous machinery.
  • Picture having the ability to access live readings without being exposed to the live panel. It's easy. Just de-energize the cabinet, open the panel while wearing PPE and connect one or more a3002 FC modules. Close the cabinet, re-energize and let the Fluke Connect system work, reducing the risk of arc flash by separating yourself from hazardous measurement situations.
  • Testing 3-phase is now faster and cheaper
  • When your cabinet is de-energized, attach a Fluke Connect current clamp to each phase. Close, re-energize and start taking readings. What used to take hours and use costly equipment can be done in minutes with an affordable Fluke Connect wireless system.
  • Take 3-phase measurements in 1/3 of the time. Add your laptop and go from logging to analysis and diagnosis.
  • You can solve problems faster by seeing live measurements from multiple test points on a single screen. Using a3002 FC current clamp modules with either Fluke i410 or i1010 AC/DC current clamps (not included with module), you can:

Other Useful Features

  • Take 3-phase measurements in 1/3 the time of previous methods.

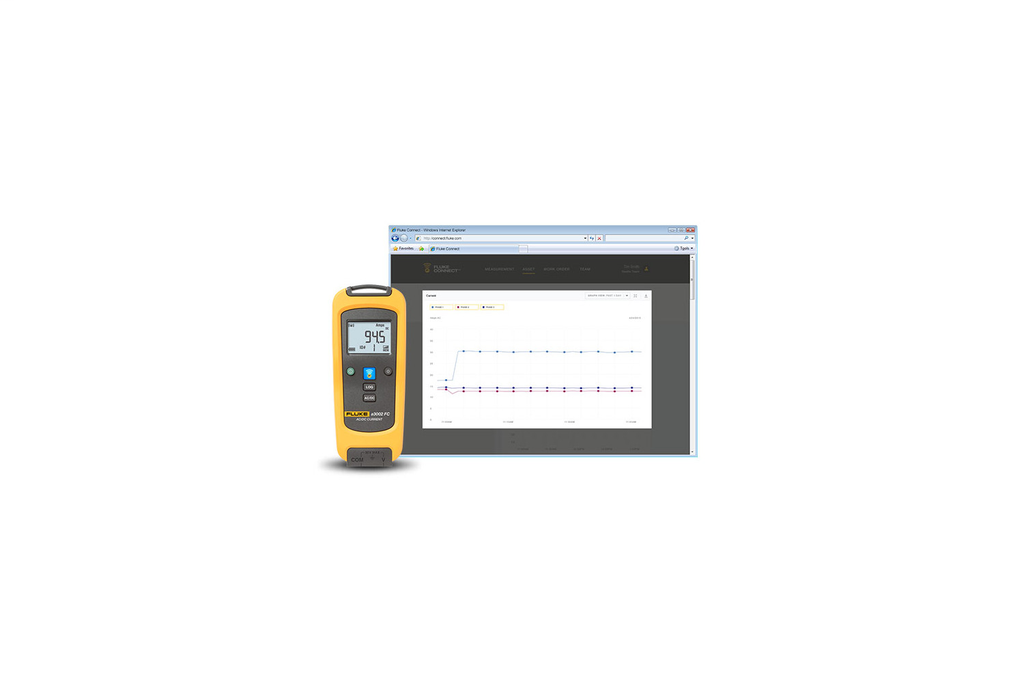

  • Send data to your laptop and go from logging to analysis and diagnosis.
  • Record over time to monitor circuit load changes for an hour, a shift or a week.
  • Use the Fluke Connect wireless USB adapter to collect logged data from remote modules by walking past a working module and downloading logged data.
  • Perform for analysis with your PC and share the results using Fluke Cloud™ storage and ShareLive™ video call. View data or graphs to get input from team members.

Additional Features

  • 1. AC accuracy is specified from 45 Hz to 1000 Hz

Includes

  • True-RMS AC/DC Current Module
  • Magnetic hanging strap

Specifications

  • Maximum voltage between terminal and earth ground (module): 30 V DC or AC RMS
  • LCD w/backlight: 3 1/2 digits, 6000 counts, 4/sec update rate
  • Log rate/Interval: Adjustable by PC from 1 sec to 1 hr, default 1 min
  • Battery type: 2 AA Alkaline batteries, NEDA 15A, IEC LR6
  • Battery life: 400 hours minimum
  • Memory: Record up to 65,000 readings
  • RF communications: 2.4 GHz ISM Band
  • RF communication range Open air, unobstructed: Up to 20 m
  • RF communication range Obstructed, sheetrock wall: Up to 6.5 m
  • RF communication range Obstructed, concrete wall or steel electrical enclosure: Up to 3.5 m
  • Operating temperature: -10°C to +50°C
  • Storage temperature: -40°C to +60°C
  • Temperature coefficient: 0.1 X (specified accuracy) / °C (< 18°C or > 28°C)
  • Relative humidity: 0% to 90% (0°C to 35°C)0% to 75% (35°C to 40°C)0% to 45% (40°C to 50°C)
  • EMC: IEC 61236-1, Portable
  • Safety compliance: Protected to IEC 61010-1, 600 V CAT IV / 1000 V CAT III, 3rd edition Pollution Degree 2
  • Certifications: CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE
  • Ingress Protection (IP) rating: IP42
  • Size (HxWxD): 160 x 66 x 38 mm (6.3 x 2.6 x 1.5 in)
  • Weight: 0.255 kg (9 oz)
  • Warranty: Three years

AC/DC Current Function

  • A DC Range / resolution: 1000 A / 0.1 A
  • A DC Accuracy1: (0.5% + 3)
  • A AC Range / resolution: 600.0 A / 0.1 A
  • A AC Accuracy1: (1.0% + 3)

Overview

UPC 09596972357
GTiN 00095969723572
Warranty Length 3 yr
Operating Temperature -10 To 50 C
Type Current Meter
Battery Type NEDA 15A,2 AA Alkaline Batteries,IEC LR6
Applications AC/DC current module that wirelessly relays measurements from the i410 or i1010 clamp accessory to other Fluke Connect enabled master units
Weight 9 oz
Family Brand Name Fluke
Amperage 1000 Amp
Blade Dimensions 6.3 (H) x 2.6 (W) x 1.5 (D) IN
Enclosure Material Hard Plastic
Accuracy 1 %
Enclosure Hard Plastic
Storage Temperature -40 To 60 C
