FLK FLK-V3000FC-KIT WIRELESS ESSENT
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$566.30/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Fluke
Mfg Catalog # FLK-V3000FC-KIT
North Coast Part # 1009582

Features

Key Features

  • AC and DC voltage measurements to 1000 V
  • AC and DC current with 0.01 mA resolution
  • Continuity, resistance, diode test, capacitance and frequency measurements
  • MIN/MAX recording
  • CAT III 1000 V, Cat IV 600 V; IP54
  • Measure up to 1000 V True-RMS AC
  • Use as a standalone meter or as part of the system
  • Use the logging function for recording and saving up to 65,000 readings
  • The Fluke FC Wireless v3000 Voltage Kit provides measurement of many common electrical parameters
  • The Fluke 3000 FC Series Wireless Multimeter with the Fluke Connect® app has all the essentials for convenient test and measurement troubleshooting:
  • With the Fluke v3000 FC Wireless AC Voltage Module you can:

Product Overview

  • The Fluke v3000
  • FC Wireless
  • Voltage Kit is part of the Fluke Connect team of wireless test tools
  • Connect the v3000 FC Wireless AC Voltage Module to your test point, and view the results up to 20 meters away on the 3000 FC Wireless Digital Multimeter.
  • You'll save time, with less run-around collecting multiple measurements. Use multiple modules for measurements on three-phase systems, as a stand-alone measurement tool or combine with other Fluke Connect® modules as a system for multiple measurements.
  • From short distances, you can even view readings from modules through closed electrical panels. Plus no more writing down data as the FC Wireless Temperature Module captures up to 65,000 sets of time stamped min/max/avg readings, using the optional PC adapter. Fluke Connect wireless test tools also offer increased safety by letting you view readings in a separate location from the test point.
  • Now you can take readings on moving machinery, with only the measurement module in harm's way.

Additional Features

  • 1. All AC voltage ranges are specified from 1% of range to 100% of range.2. Crest factor of ≤ 3 at full scale up to 500 V, decreasing linearly to crest factor < 1.5 at 1000 V.3. For non-sinusoidial waveforms, add ±(2% of reading + 2% full scale) typical, for crest factor up to 3.4. Do not exceed 107 V-Hz.

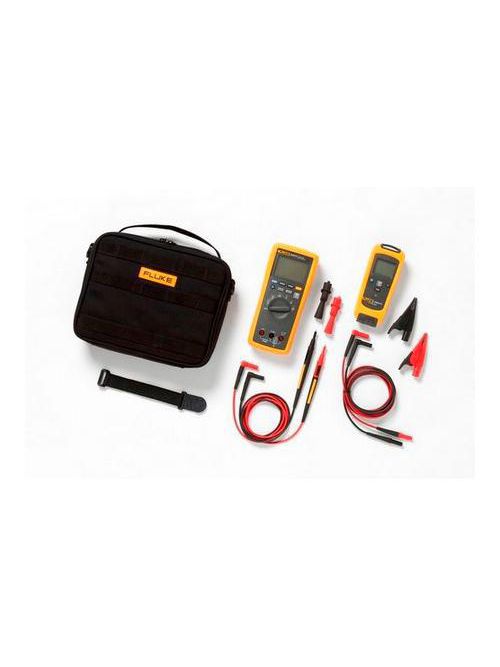

Includes

  • Fluke 3000 FC Series Wireless Multimeter
  • Fluke v3000 AC Voltage Module
  • TL175 Test Leads
  • TL224 Test Leads
  • AC175 Alligator Clips
  • AC285 Alligator Clips
  • Magnetic hanging strap

Specifications

  • Range ¹ / Resolution: 6.000 V / 0.001 V60.00 V / 0.01 V600.0 V / 0.1 V1000 V / 1 V
  • Accuracy 234: 45 Hz to 500 Hz: 1.0% + 3
  • Accuracy: 500 Hz to 1 kHz: 2.0% + 3

General Specifications

  • LCD w/ backlight: 3 1/2 digits, 6000 counts, updates 4/sec
  • Battery type: 2 AA, NEDA 15 A, IEC LR6
  • Battery life: 400 Hours
  • Memory: Record up to 65000 readings
  • RF communications: 2.4 GHZ ISM Band
  • RF communication range Open air, unobstructed: Up to 20 m
  • RF communication range Obstructed, sheetrock wall: Up to 6.5 m
  • RF communication range Obstructed, concrete wall or steel electrical enclosure: Up to 3.5 m
  • Operating temperature: -10°C to +50°C
  • Storage temperature: -40°C to +60°C
  • Temperature coefficient: 0.1 x (specified accuracy) / °C (< 18°C or > 28°C)
  • Operating humidity: 90% at 35°C, 45% at 40°C, 45% at 50°C
  • Altitude: Operating: 2,000 m
  • Altitude Storage: 12,000 m
  • EMC: EN 61326-1:2006
  • Safety compliance ANSI/ISA 61010-1 / (82.02.01): 3rd edition
  • Safety compliance CAN/CSA-C22.2 No 61010-1-12: 3rd edition
  • Safety compliance UL 61010-1: 3rd edition
  • Safety compliance IEC/EN 61010-1: 2010
  • Safety rating: CAT IV 600 V, CAT III 1000 V
  • Certifications: CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE
  • Ingress Protection (IP) rating: IP42
  • Pollution Degree: 2
  • Size (H x W x D): 16.5 x 6.35 x 1.4 cm (6.5 x 2.5 x 1.4 in)
  • Weight: .22 kg (8 oz)
  • Warranty: Three years

Overview

UPC 09596972421
GTiN 00095969724210
Warranty Length 3 yr
Operating Temperature -10 To 50 C
Voltage 1000 Volt
Type Multimeter
Battery Type 2 AA,IEC LR6,NEDA 15 A
Applications True-RMS Digital Multimeter for troubleshooting and repair of electrical and electronic systems
Weight 8 oz
Frequency 99.99 Hz
Family Brand Name Fluke
Safety Rated CAT III 1000 V,CAT IV 600 V
Amperage 400 Amp
Blade Dimensions 1.87 (H) in x 3.68 (W) in x 8.14 (L) in IN
Enclosure Material Hard Plastic
Accuracy 500 Hz
Enclosure Hard Plastic
Resistance 50 ohm
Storage Temperature -40 To 60 C
