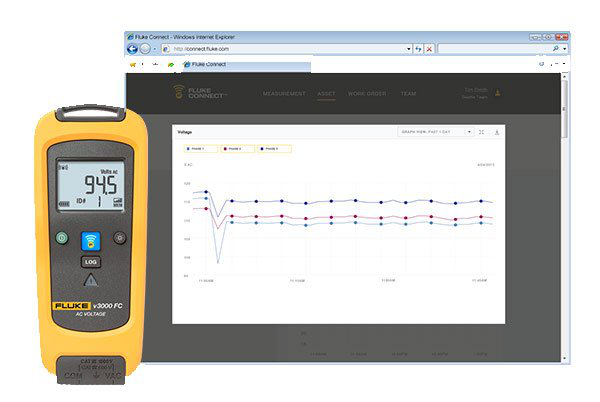

Fluke Electronics FLK-V3000FC Wireless AC Voltage Module
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$263.83/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Fluke
Mfg Catalog # FLK-V3000FC
North Coast Part # 1009573

Features

Key Features

  • Fluke 3000 FC DMM
  • Fluke Ti200/300/400 Infrared Camera
  • PC via optional pc3000 FC Adapter
  • Fluke Connect Mobile app
  • Measure up to 1000 V True-RMS AC
  • Use as a standalone meter or as part of the system
  • Use the logging function for recording and saving up to 65,000 readings
  • The Fluke v3000 FC Wireless AC Voltage Module is fully functional AC voltage meter that wirelessly relays AC voltage measurements to other Fluke Connect® enabled master units, listed below:
  • With the Fluke v3000 FC Wireless AC Voltage Module you can:

Product Overview

  • See it. Save it. Share it.
  • All the facts, right in the field. The Fluke v3000 FC Wireless AC Voltage Module is one member of a family of wireless test tools that let you share test data using the Fluke Connect® app with ShareLive™ video call.
  • Fluke Connect Wireless Test Tools put tools, not your body, near live electrical panels. It's simple. Connect the v3000 FC wireless AC voltage module, or any of the other Fluke Connect remote modules, and read the results on the Fluke Connect Wireless Multimeter or a portable PC from a safe distance.
  • Better still, the Fluke Connect test tools can send measurement data to your smartphone, so you can save and share measurements from the field with your team anytime, from anywhere.
  • Don't get bogged down while isolating intermittent electrical faults
  • Timing is everything when trying to find an intermittent problem and the hard part is, it doesn't always show up when you have your meter connected. We've solved that problem with Fluke Connect – leave your remote modules connected to log measurements and walk away to address other issues. You can then download the data for further analysis.
  • Work safely near electrical panels while wearing less PPE
  • Personal protective equipment (PPE) can save your life, but it's bulky, hot and hard to work in. With Fluke Connect, there's no need to work in front of live open panels or moving/hazardous machinery.
  • Picture having the ability to access live readings without being exposed to the live panel. It's easy. Just de-energize the cabinet, open the panel while wearing PPE and connect one or more v3000 FC modules. Close the cabinet, re-energize and let the Fluke Connect system work, reducing the risk of arc flash by separating yourself from hazardous measurement situations.
  • Testing 3-phase is now faster and cheaper
  • When your cabinet is de-energized, attach a Fluke Connect voltage module to each phase. Close, re-energize and start taking readings. What used to take hours and use costly equipment can be done in minutes with an affordable Fluke Connect wireless system.
  • Take 3-phase measurements in 1/3 the time. Add your laptop and go from logging to analysis and diagnosis.
  • You can solve problems faster by seeing live measurements from multiple test points on a single screen. Using v3000 FC AC voltage modules, you can:

Other Useful Features

  • Take 3-phase measurements in 1/3 the time of previous methods.
  • Send data to your laptop and go from logging to analysis and diagnosis.
  • Record over time to monitor circuit load changes for an hour, a shift or a week.
  • Use the Fluke Connect wireless USB adapter to collect logged data from remote modules by walking past a working module and downloading logged data.
  • Perform for analysis with your PC and share the results using Fluke Cloud™ storage and ShareLive™ video call. View data or graphs to get input from team members.

Additional Features

  • Accuracy is specified as ± ([% of reading] + [number of least significant digits]). All ranges are autoranging.Accuracy is specified from 5% to 100% of the range obtained by autoranging, from 18°C to 28°C.1. All AC voltage ranges are specified from 1% of range to 100% of range.2. Crest factor of ≤ 3 at full scale up to 500 V, decreasing linearly to crest factor < 1.5 at 1000 V.3. For non-sinusoidial waveforms, add ± (2% of reading + 2% full scale) typical, for crest factor up to 3.4. Do not exceed 107 V-Hz.
  • Note: Not compatible with Fluke CNX test tools

Includes

  • Fluke v3000 Voltage Module
  • TL224 Test Leads
  • AC285 Alligator Clips
  • Magnetic hanging strap

Specifications

  • Range¹ / Resolution: 6.000 V / 0.001 V60.00 V / 0.01 V600.0 V / 0.1 V1000 V / 1 V
  • Accuracy234: 45 Hz to 500 Hz: 1.0% + 3
  • Accuracy: 500 Hz to 1 kHz: 2.0% + 3

General Specifications

  • LCD w/backlight: 3 1/2 digits, 6000 counts, updates 4/sec
  • Battery type: 2 AA, NEDA 15 A, IEC LR6
  • Battery life: 400 Hours
  • Memory: Record up to 65000 readings
  • RF communications: 2.4 GHZ ISM Band
  • RF communication range Open air, unobstructed: Up to 20 m
  • RF communication range Obstructed, sheetrock wall: Up to 6.5 m
  • RF communication range Obstructed, concrete wall or steel electrical enclosure: Up to 3.5 m
  • Operating temperature: -10°C to +50°C
  • Storage temperature: -40°C to +60°C
  • Temperature coefficient: 0.1 X (specified accuracy)/°C (< 18°C or > 28°C)
  • Operating humidity: 90% at 35°C, 45% at 40°C, 45% at 50°C
  • Altitude: Operating: 2,000 m
  • Altitude Storage: 12,000 m
  • EMC: EN 61326–1:2006
  • Safety compliance ANSI/ISA 61010–1 / (82.02.01): 3rd edition
  • Safety compliance CAN / CSA–C22.2 No 61010–1–12: 3rd edition
  • Safety compliance UL 61010–1: 3rd edition
  • Safety compliance IEC/EN 61010–1: 2010
  • Safety rating: CAT IV 600 V, CAT III 1000 V
  • Certifications: CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE
  • Ingress Protection (IP) rating: IP42
  • Pollution Degree: 2
  • Size (HxWxD): 16.5 x 6.35 x 1.4 cm (6.5 x 2.5 x 1.4 in)
  • Weight: .22 kg (8 oz)
  • Warranty: Three years

Overview

UPC 09596969201
GTiN 00095969692014
Warranty Length 3 yr
Operating Temperature -10 To 50 C
Voltage 1000 Volt
Type Voltage Meter
Battery Type 2 AA,NEDA 15 A,IEC LR6
Applications True-RMS voltage meter that wirelessly relays ac voltage measurements to other Fluke Connect enabled master units
Weight 8 oz
Family Brand Name Fluke
Safety Rated CAT III 1000 V,CAT IV 600 V
Blade Dimensions 6.5 (H) x 2.5 (W) x 1.4 (D) IN
Enclosure Material Hard Plastic
Accuracy 500 Hz
Enclosure Hard Plastic
Storage Temperature -40 To 60 C
