FLK FLK-V3001FC-KIT WIRELESS ESSENT
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$566.30/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Fluke
Mfg Catalog # FLK-V3001FC-KIT
North Coast Part # 1009581

Features

Key Features

  • AC and DC voltage measurements to 1000 V
  • AC and DC current with 0.01 mA resolution
  • Continuity, resistance, diode test, capacitance and frequency measurements
  • MIN/MAX recording
  • CAT III 1000 V, Cat IV 600 V; IP54
  • Measure up to 1000 VDC
  • Use as a standalone meter or as part of the system
  • Use the logging function for recording and saving up to 65,000 readings
  • The Fluke FC Wireless v3001 Voltage Kit provides measurement of many common electrical parameters
  • The Fluke 3000 FC Series Wireless Multimeter with the Fluke Connect® app has all the essentials for convenient test and measurement troubleshooting:
  • The Fluke v3001 FC Wireless DC Voltage Module lets you:

Product Overview

  • The Fluke FC Wireless v3001 Voltage Kit is part of the Fluke Connect team of wireless test tools
  • Connect the v3001 FC Wireless DC Voltage Module to your test point, and view the results up to 20 meters away on the 3000 FC Wireless Digital Multimeter.
  • You’ll save time, with less run-around collecting multiple measurements. Use multiple modules for measurements on three-phase systems, as a stand-alone measurement tool or combine with other Fluke Connect® modules as a system for multiple measurements.
  • From short distances, you can even view readings from modules through closed electrical panels. Plus no more writing down data as the FC Wireless DC Voltage Module captures up to 65,000 sets of time stamped min/max/avg readings, using the optional PC adapter. Fluke Connect wireless test tools also offer increased safety by letting you view readings in a separate location from the test point.
  • Now you can take readings on moving machinery, with only the measurement module in harm’s way.

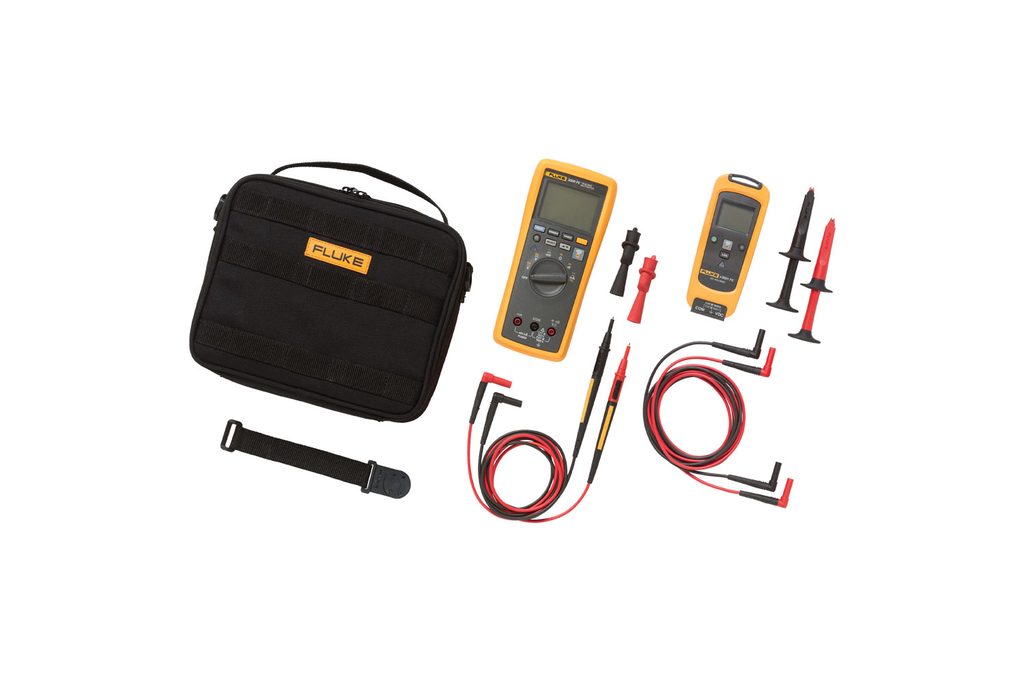

Includes

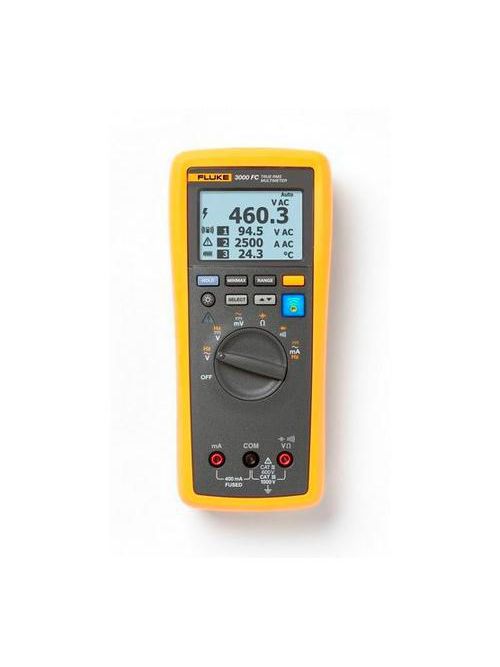

  • Fluke 3000 FC Series Wireless Multimeter
  • Fluke v3001 DC Voltage Module
  • TL175 Test Leads
  • TL222 Test Leads
  • AC175 Alligator Clips
  • AC220 Alligator Clips
  • Magnetic hanging strap

Specifications

Function

  • mVDC Range ¹ / Resolution: 600.0 mV / 0.1 mV
  • mVDC Accuracy: 0.09% + 3
  • VDC Range ¹ / Resolution: 6.000 V / 0.001 V60.00 V / 0.01 V600.0 V / 0.1 V || 1000 V / 1 V
  • VDC Accuracy: 0.09% + 3 || 0.15% + 2

General Specifications

  • LCD w/ backlight: 3 1/2 digits, 6000 counts, 4/sec update rate
  • Battery type: 2 AA Alkaline batteries, NEDA 15A, IEC LR6
  • Log rate/interval: Adjustable by PC from 1 sec to 1 hr, default 1 min
  • Battery life: 400 hours minimum
  • Memory: Record up to 65,000 readings
  • RF communications: 2.4 GHz ISM Band
  • RF communication range Open air, unobstructed: Up to 20 m
  • RF communication range Obstructed, sheetrock wall: Up to 6.5 m
  • RF communication range Obstructed, concrete wall or steel electrical enclosure: Up to 3.5 m
  • Operating temperature: -10°C to +50°C
  • Storage temperature: -40°C to +60°C
  • Temperature coefficient: 0.1 x (specified accuracy)/ °C (< 18°C or > 28°C)
  • Relative humidity: 0% to 90% (0°C to 35°C), 0% to 75% (35°C to 40°C),0% to 45% (40°C to 50°C)
  • EMC: IEC 61236-1, Portable
  • Safety compliance: IEC 61010-1, 600 V CAT IV / 1000 V CAT III, 3rd edition, Pollution Degree 2
  • Certifications: CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE
  • Ingress Protection (IP) rating: IP42
  • Size (H x W x D): 160 x 66 x 38 mm (6.3 x 2.6 x 1.5 in)
  • Weight: 0.255 kg (9 oz)

Overview

UPC 09596972457
GTiN 00095969724579
Operating Temperature -10 To 50 C
Voltage 600 mV
Type Voltage Meter
Battery Type 2 AA Alkaline Batteries,IEC LR6,NEDA 15A
Applications DC voltage meter that wirelessly relays dc voltage measurements to other Fluke Connect enabled master units
Weight 9 oz
Family Brand Name Fluke
Blade Dimensions 6.3 (H) x 2.6 (W) x 1.5 (D) IN
Enclosure Material Hard Plastic
Accuracy 0.09 %
Enclosure Hard Plastic
Storage Temperature -40 To 60 C
