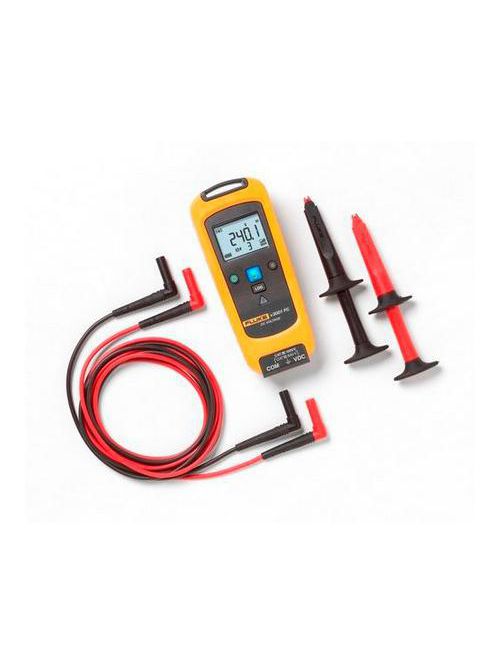

Fluke Electronics FLK-V3001FC Wireless DC Voltage Module
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$263.83/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Fluke
Mfg Catalog # FLK-V3001FC
North Coast Part # 1009576

Features

Key Features

  • Fluke 3000 FC DMM
  • Fluke Ti200/300/400 Infrared Camera
  • PC via optional pc3000 FC Adapter
  • Fluke Connect Mobile app
  • Measure up to 1000 VDC
  • Use as a standalone meter or as part of the system
  • Use the logging function for recording and saving up to 65,000 readings
  • The Fluke v3001 FC Wireless DC Voltage Module is fully functional DC voltage meter that wirelessly relays DC voltage measurements to other Fluke Connect® enabled master units, listed below:
  • With the Fluke v3001 FC Wireless DC Voltage Module you can:

Product Overview

  • See it. Save it. Share it.
  • All the facts, right in the field. The Fluke v3001 FC Wireless DC Voltage Module is one member of a family of wireless test tools that let you share test data using the Fluke Connect® app with ShareLive™ video call.
  • Fluke Connect Wireless Test Tools put tools, not your body, near live electrical panels. It's simple. Connect the v3001 FC wireless DC voltage module, or any of the other Fluke Connect remote modules, and read the results on the Fluke Connect Wireless Multimeter or a portable PC from a safe distance.
  • Better still, the Fluke Connect test tools can send measurement data to your smartphone, so you can save and share measurements from the field with your team anytime, from anywhere.
  • Don't get bogged down while isolating intermittent electrical faults
  • Timing is everything when trying to find an intermittent problem and the hard part is, it doesn't always show up when you have your meter connected. We've solved that problem with Fluke Connect – leave your remote modules connected to log measurements and walk away to address other issues. You can then download the data for further analysis.
  • Work safely near electrical panels while wearing less PPE
  • Personal protective equipment (PPE) can save your life, but it's bulky, hot and hard to work in. With Fluke Connect, there's no need to work in front of live open panels or moving/hazardous machinery.
  • Picture having the ability to access live readings without being exposed to the live panel. It's easy. Just de-energize the cabinet, open the panel while wearing PPE and connect one or more v3001 FC modules. Close the cabinet, re-energize and let the Fluke Connect system work, reducing the risk of arc flash by separating yourself from hazardous measurement situations.

Additional Features

  • Accuracy is specified for 1 year after calibration, at operating temperatures of 18°C to 28°C, with relative humidity at 0% to 90%. Accuracy specifications take the form of ±([% of Reading] + [Number of least significant digits]).All ranges are autoranging. Accuracy is specified from the range obtained by autoranging, from 18°C to 28°C.

Includes

  • Fluke v3001 Voltage Module
  • TL222 Test Leads
  • AC220 Alligator Clips
  • Magnetic hanging strap

Specifications

Function

  • mV DC Range¹ / resolution: 600.0 mV / 0.1 mV
  • mV DC Accuracy: 0.09% + 3
  • VDC Range¹ / resolution: 6.000 V / 0.001 V60.00 V / 0.01 V600.0 V / 0.1 V || 1000 V / 1 V
  • VDC Accuracy: 0.09% + 3 || 0.15% + 2

General Specifications

  • LCD w/ backlight: 3 1/2 digits, 6000 counts, 4/sec update rate
  • Battery type: 2 AA Alkaline batteries, NEDA 15A, IEC LR6
  • Log rate/interval: Adjustable by PC from 1 sec to 1 hr, default 1 min
  • Battery life: 400 hours minimum
  • Memory: Record up to 65,000 readings
  • RF communications: 2.4 GHz ISM Band
  • RF communication range Open air, unobstructed: Up to 20 m
  • RF communication range Obstructed, sheetrock wall: Up to 6.5 m
  • RF communication range Obstructed, concrete wall or steel electrical enclosure: Up to 3.5 m
  • Operating temperature: -10°C to +50°C
  • Storage temperature: -40°C to +60°C
  • Temperature coefficient: 0.1 x (specified accuracy) / °C (< 18°C or > 28°C)
  • Relative humidity: 0% to 90% (0°C to 35°C), 0% to 75% (35°C to 40°C),0% to 45% (40°C to 50°C)
  • EMC: IEC 61236–1, Portable
  • Safety compliance: IEC 61010–1, 600 V CAT IV / 1000 V CAT III, 3rd edition, Pollution Degree 2
  • Certifications: CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE
  • Ingress Protection (IP) rating: IP42
  • Size (H x W x D): 160 x 66 x 38 mm (6.3 x 2.6 x 1.5 in)
  • Weight: 0.255 kg (9 oz)
  • Warranty: Three years

Categories

Overview

UPC 09596972355
GTiN 00095969723558
Warranty Length 3 yr
Operating Temperature -10 To 50 C
Voltage 1000 Volt
Type Multimeter
Battery Type 2 AA Alkaline Batteries,IEC LR6,NEDA 15A
Applications True-RMS Digital Multimeter for troubleshooting and repair of electrical and electronic systems
Weight 9 oz
Frequency 99.99 Hz
Family Brand Name Fluke
Amperage 400 Amp
Blade Dimensions 1.87 (H) in x 3.68 (W) in x 8.14 (L) in IN
Enclosure Material Hard Plastic
Accuracy 1 %
Enclosure Hard Plastic
Resistance 50 ohm
Storage Temperature -40 To 60 C
