Manufacturer Fluke
Mfg Catalog # FLK2AC/90-1000V
North Coast Part # 821947

Features

Key Features

  • Voltage detection from 90 to 1000 V AC, suitable for a wide range of residential, commercial and industrial needs
  • Always on, using special low power circuitry to sustain battery life and ensure your 2AC is always ready
  • Innovative 'Battery Check' button function ensures battery is in good condition*
  • CAT IV 1000 V overvoltage rated product for best in class user protection
  • Expanded range: 90 V AC to 1000 V AC
  • Integrated clip design, optimized for pocket storage
  • Powered by 2x AAA batteries (included)
  • Fluke ruggedness and reliability
  • Two-year warranty
  • Use of Battery Check function is optional and for convenience only, it is not intended as a substitute for checking the unit on a known live source before and after use.

Product Overview

  • Always on for faster, safer voltage testing

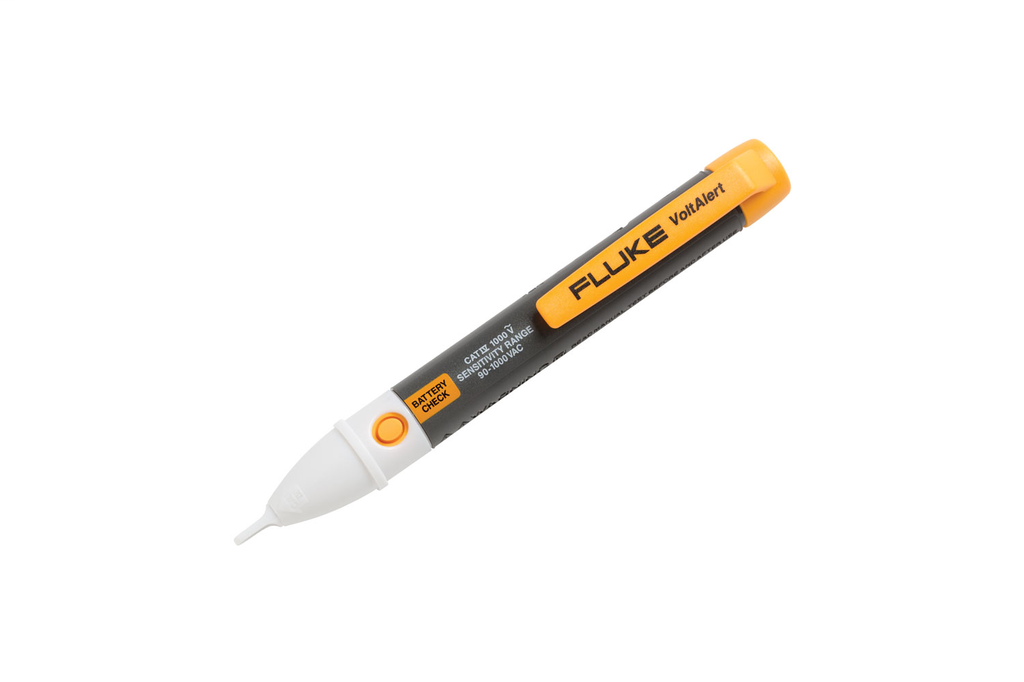

  • 2AC is the latest addition to the VoltAlert™ AC non-contact voltage tester family from Fluke and is designed to be pocket-sized and easy to use. The 2AC tests for energized circuits and defective grounds, whether it's for an electrician on the factory floor or the do-it-yourselfer around the house. The tip of the pocket-sized tester will glow red when within close proximity of an outlet, terminal strip, or power cord where voltage is present.

Specifications

  • Operating Principles: Senses the steady state electrostatic field produced by AC voltage through insulation without requiring contact to the bare conductor. A red glow at the tip indicates the presence of voltage.
  • Safety Compliance: Meets IEC 61010-1:2001, UL 61010-1 (2nd ed.), CAN/CSA-C22.2 No. 61010-1-04, and ISA-82.02.01 Pollution Degree 2
  • EMC Compliance: Meets IEC 61326-1:2006
  • Operating: 90 V AC to 1000 V AC, CAT IV 1000 V rated
  • Temperature (Operating and Storage): -10°C to 50°C (-14°F to 122°F)
  • Operating Humidity Ranges: 0% to 45% (40°C to 55°C)
  • Altitude: 2000 m (CAT IV 1000 V)
  • Cleaning: Clean with damp cloth
  • Battery Life: Typical battery life of greater than one year
  • Warranty Period: Two years

Categories

Overview

UPC 09596956443
GTiN 00095969564434
Operating Temperature -10 To 50 C
Voltage 1000 Volt
Type Electrical Tester
Applications Voltage tester
Family Brand Name Fluke
Blade Dimensions 10.24 x 29.99 x 1.57 IN
Enclosure Material Hard Plastic
Enclosure Hard plastic, pen shape
