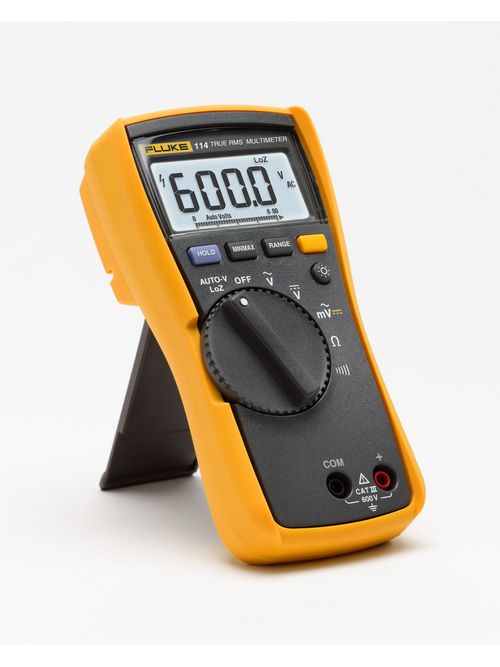

Fluke Electronics FLUKE-114 600 VAC/VDC Digital Multimeter
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$218.79/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Fluke
Mfg Catalog # FLUKE-114
North Coast Part # 348453

Features

Key Features

  • Ideal Digital Multimeter for “go/no-go” testing
  • Features AutoVolt automatic AC/DC voltage selection
  • Includes low input impedance to help prevent false readings due to ghost voltage
  • Presents a large white LED backlight for working in poorly lit areas
  • Measures resistance, continuity, frequency, and capacitance
  • Provides Min/Max/Average with elapsed time to record signal fluctuations

Product Overview

  • Fluke 114 digital multimeter is the ideal choice for go/no-go testing
  • Designed for easy one-handed operation, the compact Fluke 114 True RMS digital multimeter is the perfect troubleshooting tool for go/no go testing. Its AutoVolt capability automatically switches to measure AC or DC voltage, whichever is present. And you can use the LoZ function to identify so-called ghost voltage and prevent false readings.
  • The Fluke 114 displays True-RMS voltage and current readings with 6000 count resolution, and tests frequency, continuity and resistance. A large white LED backlight aids work in poorly lit areas. And its easy-open battery access door makes battery changes easy.
  • A great choice for everyday troubleshooting, the Fluke 114 Electrical Multimeter is CAT III 600 V safety rated and is a compact True-RMS meter.
  • Fluke 114 multimeters are independently tested for safe use in CAT III 600V environments

Other Useful Features

  • Features a compact ergonomic design for one-handed operation
  • Comes with an holster with probe holders for easy storage
  • Features manual and automatic ranging
  • Safety rates CAT III 600 V
  • Fits into optional ToolPak™ magnetic hanger for hands-free operation

Additional Features

  • 1. All ac voltage ranges except Auto-V/LoZ are specified from 1% to 100% of range. Auto-V/LoZ is specified from 0.0 V.2. Temperature uncertainty (accuracy) does not include the error of the thermocouple probe.2. Frequency is ac coupled, 5 Hz to 50 kHz for ac voltage. Frequency is dc coupled, 45 Hz to 5 kHz for ac current.2. Temperature Range/Resolution: -40°F to 752°F / 0.2°F.

Includes

  • Holster
  • Installed 9 V battery
  • Test leads
  • User manual

Specifications

  • Maximum voltage between any terminal and earth ground: 600 V
  • Surge protection: 6 kV peak per IEC 61010-1 600 VCAT III, Pollution Degree 2
  • Display: Digital: 6,000 counts, updates 4 per second
  • Bar graph: 33 segments, updates 32 per second
  • Operating temperature: -10°C to + 50°C
  • Storage temperature: -40°C to + 60°C
  • Battery type: 9 volt Alkaline, NEDA 1604A / IEC 6LR61
  • Battery life: 400 hours typical, without backlight

Accuracy specifications

  • DC millivolts Range/resolution: 600.0 mV / 0.1 mV
  • DC millivolts Accuracy: ± ([% of reading] + [counts]): 0.5% + 2
  • DC volts Range/resolution: 6.000 V / 0.001V60.00 V / 0.01V600.00 V / 0.1 V
  • DC volts Accuracy: ± ([% of reading] + [counts]): 0.5% + 2
  • Auto volts Range/resolution: 600.0 V / 0.1 V
  • Auto volts Accuracy: 2.0% + 3 (DC, 45 Hz to 500 Hz)4.0% + 3 (500 Hz to 1 kHz)
  • AC millivolts1 True RMS Range/resolution: 600.0 mV / 0.1 mV
  • AC millivolts Accuracy: 1.0% + 3 (DC, 45 Hz to 500 Hz)2.0% + 3 (500 Hz to 1 kHz)
  • AC volts1 True RMS Range/resolution: 6.000 V / 0.001V60.00 V / 0.01V600.0 V / 0.1 V
  • AC volts Accuracy: 1.0% + 3 (DC, 45 Hz to 500 Hz)2.0% + 3 (500 Hz to 1 kHz)
  • Continuity Range/resolution: 600 Ω / 1 Ω
  • Continuity Accuracy: Beeper on < 20 Ω, off > 250 Ω detects opens or shorts of500 μs or longer.
  • Ohms Range/resolution: 600.0 Ω / 0.1 Ω6.000 kΩ / 0.001 kΩ60.00 kΩ / 0.01 kΩ600.0 kΩ / 0.1 kΩ6.000 MΩ / 0.001 MΩ || 40.00 MΩ / 0.01 MΩ
  • Ohms Accuracy: 0.9% + 1 || 5% + 2

Mechanical & General Specifications

  • Size: 167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in)
  • Weight: 550 g
  • Warranty: 3 years

Overview

UPC 09596932417
GTiN 00095969324175
Warranty Length 3 yr
Operating Temperature -10 To 50 C
Type Digital Multimeter
Battery Type 9 Volt Alkaline,NEDA 1604A / IEC 6LR61
Applications Compact true-rms meter for everyday electrical troubleshooting
Weight 550 g
Temperature Rating -10 to 50 C
Family Brand Name Fluke
Display Type Digital
Blade Dimensions 6.58 x 3.35 x 1.81 IN
Accuracy 0.5 % + 2 V
Enclosure Hard plastic
Resistance 0.1 O to 40 MO Ohm
Storage Temperature -40 To 60 C
Voltage 6/60/600 Volt
