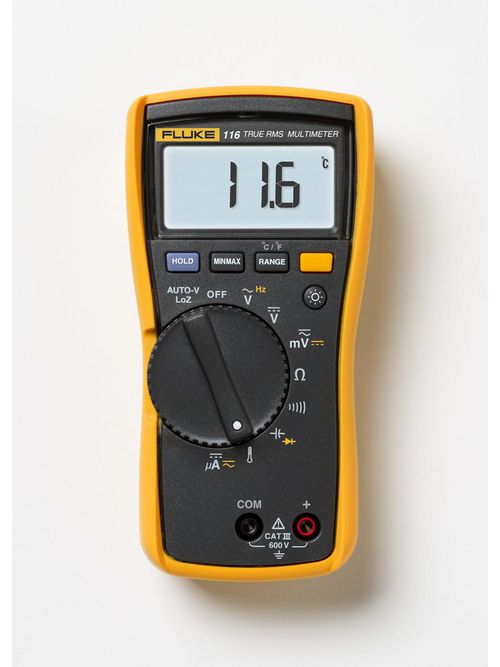

Fluke Electronics FLUKE-116 600 VAC/VDC Digital Multimeter

Features

Key Features

• Digital multimeter designed specifically for HVAC professionals
• Includes built-in thermometer to measure temperature from -40°C to 400°C (-40°F to 752°F)
• Provides microamps to test flame sensors
• Features low input impedance to helps prevent false readings due to ghost voltage
• Presents a large white LED backlight for working in poorly lit areas

Product Overview

• The Fluke 116 DMM provides the features you need to quickly troubleshoot HVAC equipment
• The Fluke 116 was specifically designed for HVAC professionals. It has everything you need to quickly troubleshoot problems with HVAC equipment and flame sensors, including a built-in thermometer to measure temperatures up to 400°C (752°F) and microamps to test flame sensors. The Fluke 116 also measures resistance, continuity, frequency, and capacitance. And the large white LED backlight makes it easy to see results even in poorly lit areas.
• Fluke 116 multimeters are independently tested for safe use in CAT III 600 V environments.

Other Useful Features

• Measures resistance, continuity, frequency, and capacitance
• Provides Min/Max/Average to record signal fluctuations
• Comes with a holster with probe holders for easy storage
• Features a compact ergonomic design for one-handed operation
• Fits into optional ToolPak™ magnetic hanger for hands-free operation
• CAT III 600 V safety rated

Additional Features

• 1. All AC voltage ranges except Auto-V/LoZ are specified from 1% to 100% of range. Auto-V/LoZ is specified from 0.0 V.2. Temperature uncertainty (accuracy) does not include the error of the thermocouple probe.3. Frequency is AC coupled, 5 Hz to 50 kHz for AC voltage. Frequency is DC coupled, 45 Hz to 5 kHz for AC current.4. Temperature Range/Resolution: -40°F to 752°F / 0.2°F.

Includes

• 4 mm silicone test lead set
• 80BK Integrated Temperature probe
• Holster
• Installed 9 V battery
• User manual

Specifications

• Maximum voltage between any terminal and earth ground: 600 V
• Surge protection: 6 kV peak per IEC 61010–1 600 VCAT III, Pollution Degree 2
• Display: Digital: 6,000 counts, updates 4 per second
• Bar graph: 33 segments, updates 32 per second
• Operating temperature: -10°C to + 50°C
• Storage temperature: -40°C to + 60°C
• Battery type: 9 volt Alkaline, NEDA 1604A/ IEC 6LR61
• Battery life: 400 hours typical, without backlight

Accuracy Specifications

• DC millivolts Range/resolution: 600.0 mV / 0.1 mV
• DC millivolts Accuracy: ±([% of reading] + [counts]): 0.5% + 2
• DC volts Range/resolution: 6.000 V / 0.001 V60.00 V / 0.01 V600.00 V / 0.1 V
• DC volts Accuracy: ±([% of reading] + [counts]): 0.5% + 2
• Auto volts Range/resolution: 600.0 V / 0.1 V
• Auto volts Accuracy: 2.0% + 3 (DC, 45 Hz to 500 Hz)4.0% + 3 (500 Hz to 1 kHz)
• AC millivolts1 True RMS Range/resolution: 600.0 mV / 0.1 mV
• AC millivolts Accuracy: 1.0% + 3 (DC, 45 Hz to 500 Hz)2.0% + 3 (500 Hz to 1 kHz)
• AC volts1 True RMS Range/resolution: 6.000 V / 0.001 V60.00 V / 0.01 V600.0 V / 0.1 V
• AC volts Accuracy: 1.0% + 3 (DC, 45 Hz to 500 Hz)2.0% + 3 (500 Hz to 1 kHz)
• Continuity Range/resolution: 600 Ω / 1 Ω
• Continuity Accuracy: Beeper on < 20 Ω, off > 250 Ω detects opens or shorts of500 μs or longer.
• Ohms Range/resolution: 600.0 Ω / 0.1 Ω6.000 kΩ / 0.001 kΩ60.00 kΩ / 0.01 kΩ600.0 kΩ / 0.1 kΩ6.000 MΩ / 0.001 MΩ
• Ohms Accuracy: 0.9% + 1 || 5% + 2
• Ohms Range/Resolution: 40.00 MΩ / 0.01 MΩ
• Diode Test Range/resolution: 2.00 V / 0.001 V
• Diode Test Accuracy: 0.9% + 2
• Capacitance Range/resolution: 1000 nF / 1 nF10.00 μF / 0.01 μF100.0 μF / 0.1 μF9999 μF / 1 μF100 μF to 1000 μF || > 1000 μF
• Capacitance Accuracy: 1.9% + 2 || 5% + 20%
• Lo-Z Capacitance Range: 1 nF to 500 μF
• Lo-Z Capacitance Accuracy: 10% + 2 typical
• Temperature²(Type-K thermocouple) Range/resolution: -40°C to 400°C / 0.1°C
• Temperature² Accuracy: 1% + 10² || 1% + 18²
• Temperature² Range/resolution: -40°F to 752°F / 0.2°F
• AC μA true-rms (45 Hz to 500 Hz) Range/resolution: 600.0 μA / 0.1 μA
• AC μA true-rms (45 Hz to 500 Hz) Accuracy: 1.5% + 3
• DC μamps Range/resolution: 600.0 μA / 0.1 μA
• DC μamps Accuracy: 1.0% + 2
• Hz (V or A input)² Range/resolution: 99.99 Hz / 0.01 Hz999.9 Hz / 0.1 Hz9.999 kHz / 0.001 Hz50.00 kHz / 0.01 Hz
• Hz (V or A input)² Accuracy: 0.1% + 2

Mechanical and General Specifications

• Size: 167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in)
• Weight: 550 g
• Warranty: 3 years
