FLK FLUKE-1550C/KIT 5KV INSULATION
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$6,692.78/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Fluke
Mfg Catalog # FLUKE-1550C/KIT
North Coast Part # 755931

Features

Key Features

  • Quickly configure, start and stop tests on the 1550C remotely, a safe distance away from any operating, energized equipment, using
  • and a smart phone
  • Real time trending gives you easy-to-see visual cues, rather than hard to read, rapidly changing values
  • Report creation using
  • saves time and makes test results easier to understand
  • saves test results to the cloud for analysis and preventive maintenance

Product Overview

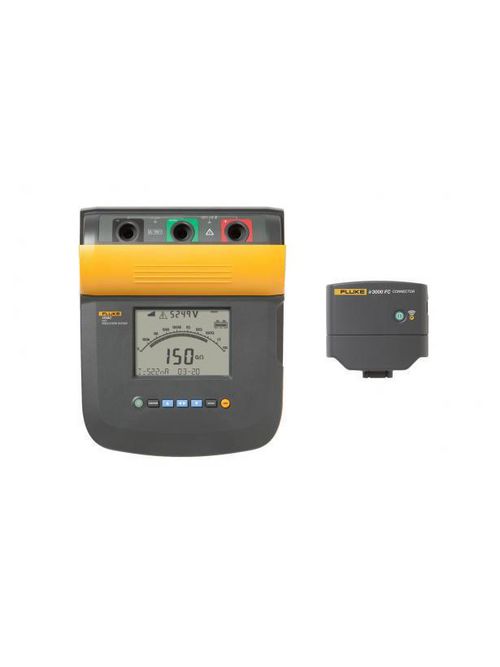

  • Fluke 1550C 5 kV Insulation Tester Kit makes data collection from insulation tests easy
  • The Fluke 1550C performs digital insulation testing up to 5 kV, and makes data collection easy through the Fluke Connect™ wireless app. Remote operation lets you spend as little time as possible in potentially hazardous zones. Real-time trending shows a live graph on your phone, rather than a hard-to-read set of changing values. And you can create reports quickly, using pre-designed templates that you can customize with company logos. It’s the perfect tool for preventive or predictive maintenance programs designed to identify potential equipment failures before they occur. And it comes with a three-year warranty and CAT IV 600 V safety rating.
  • Learn more >>
  • Additional product capabilities will become available throughout 2018 and beyond.

Other Useful Features

  • Automatic calculation of Dielectric Absorption (DAR) and Polarization Index (PI) with no additional setup
  • Guard system eliminates the effect of surface leakage current on high-resistance measurements
  • Selectable test voltages in 50 V steps from 250 V to 1000 V, and 100 V steps above 1000 V
  • CAT III 1000 V, CAT IV 600 V safety rating
  • Warning function alerts the user that line voltage is present and gives the voltage reading up to 600 V AC or DC for increased user safety
  • Measurements can be stored in up to 99 memory locations, with each location assigned a unique, user defined, label for easy recall
  • Long battery life gives the user over 750 tests between charges
  • Large digital/analog LCD for easy viewing
  • Capacitance and leakage current measurement
  • Ramp function for breakdown testing
  • Resistance measurements up to 2 TΩ
  • Timer settings up to 99 minutes for timed tests
  • 3-year warranty

Additional Features

  • The tester's accuracy is specified for one year after calibration at operating temperatures of 0°C to 35°C. For operating temperatures outside the range (-20°C to 0°C and 35°C to 50°C), add ± .25% per °C, except on the 20% bands add ± 1% per °C.
  • This Class II (double insulated) instrument is supplied with a Class 1 (grounded) power cord. The protective earth terminal (ground pin) is not connected internally. The extra pin is for added plug retention only.

Includes

  • Test cables with alligator clips (red, black, green)
  • Infrared adapter with interface cable
  • AC power cord
  • IP67 Hard Case
  • Certificate of Calibration
  • English manual
  • User's manual on CD-ROM
  • Quick reference card
  • Software license agreement
  • Registration card
  • USB-IR cable installation guide
  • Heavy duty alligator clip leads

Specifications

Test voltage (DC)

  • 250 V Range: < 250 kΩ,250 kΩ to 5 GΩ5 GΩ to 50 GΩ> 50 GΩ
  • 250 V: Accuracy (± reading): Unspecified5%20%Unspecified
  • 500 V Range: < 500 kΩ500 kΩ to 10 GΩ10 GΩ to 100 GΩ> 100 GΩ
  • 500 V: Accuracy (± reading): Unspecified5%20%Unspecified
  • 1000 V Range: < 1 MΩ1 MΩ to 20 GΩ20 GΩ to 200 GΩ> 200 GΩ
  • 1000 V: Accuracy (± reading): Unspecified5%20%Unspecified
  • 2500 V Range: < 2.5 MΩ2.5 MΩ to 50 GΩ50 GΩ to 500 GΩ> 500 GΩ
  • 2500 V: Accuracy (± reading): Unspecified5%20%Unspecified
  • 5000 V Range: < 5 MΩ5 MΩ to 100 GΩ100 GΩ to 1 TΩ> 1 TΩ
  • 5000 V: Accuracy (± reading): Unspecified5%20%Unspecified
  • Bar graph range: 0 to 1 TΩ (1550C) - 0 to 2 TΩ (1555)
  • Insulation test voltage accuracy: -0%, +10% at 1 mA load current
  • Induced AC mains current rejection: 2 mA maximum
  • Charging rate for capacitive load: 5 seconds per μF
  • Discharge rate for capacitive load: 1.5 s/μF
  • Leakage current measurement Range: 1 nA to 2 mA
  • Leakage current measurement Accuracy: ±(5% + 2 nA)
  • Capacitance measurement Range: 0.01 μF to 15.00 μF
  • Capacitance measurement Accuracy: ±(15% rdg + 0.03 μF)
  • Timer Range: 0 to 99 minutes
  • Timer: Resolution setting: 1 minute || Resolution indication: 1 second
  • Live circuit warning: Warning range: 30 V to 660 V AC/DC, 50/60 Hz || Voltage accuracy: ±(15% + 2 V)
  • Software specifications: FlukeView Forms™ basic software requires a PC running Windows XP, Windows Vista , Windows 7 or Windows 8.

General Specifications

  • Display: 75 x 105 mm
  • Power: 12 V lead-acid rechargeable battery, Yuasa NP2.8-12
  • Charger Input (AC): 85 V to 250 V AC 50/60 Hz 20 VA
  • Dimensions: 269 x 277 x 160 mm (10.6 x 10.9 x 6.3 in)
  • Weight: 3.7 kg (8.2 lb)
  • Temperature (operating): -20°C to 50°C (-4°F to 122°F)
  • Temperature (storage): -20°C to 65°C (-4°F to 149°F)
  • Humidity: 80% to 31°C decreasing linearly to 50% at 50°C
  • Altitude: 2000 m
  • Enclosure sealing: IP40
  • Input overload protection: 1000 V AC
  • Electromagnetic compatibility: EN 61326
  • Safety compliance: IEC 61010-1: Overvoltage category II, Pollution Degree 2.IEC 61010-2-030: Measurement 600V CAT IV / 1000V CAT IIIIEC 61557-1, IEC 61557-2

Overview

UPC 09596955098
GTiN 00095969550987
Type Insulation Resistance Tester
Applications Validate general circuits, such as switchgear, motors, and cables
Weight 8.2 lb
Family Brand Name Fluke
Display Type 75 X 105 Mm
Blade Dimensions 13 x 9.5 x 6.7 IN
Accuracy (15 % + 2 V) V
Enclosure Hard Plastic
Voltage 10,000 Volt
