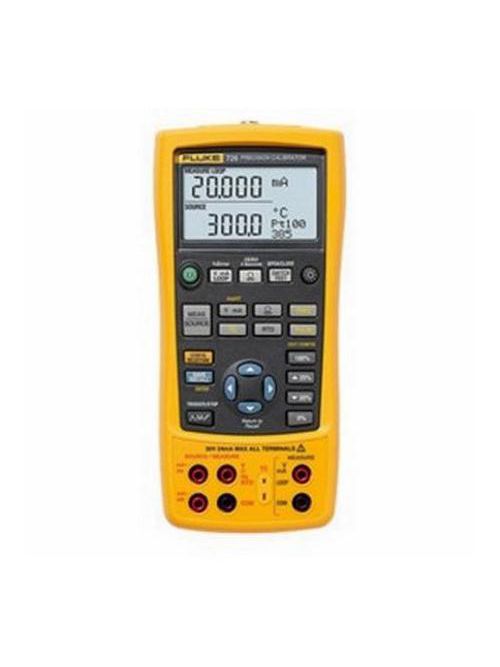

Fluke Electronics FLUKE-725 US 30 VDC 24 mA DC Multi-Function Process Calibrator
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$3,059.99/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Fluke
Mfg Catalog # FLUKE-725-US
North Coast Part # 334664
725 Series Multifunction Process Calibrator, Measuring Range: 30 V, 100 MIL V, -10 to 75 MIL V For DC Voltage, 24 MILAMP For DC Current, 0 - 3200 OHM For Resistance, Resolution: 0.1 DEG C, Accuracy: 0.02 PCT Plus 2 Counts For Voltage And Current, 0.1 OHM For Resistance , 0.05 PCT Plus 1 Count For Frequency, 10 PCT For Loop Power, Functions: Voltage, Current, Resistance, Frequency, Temperature For Ramp And Step, Loop Power: 24 VDC, Maximum Voltage: 30 V, Power Source: 4 AA Alkaline, Dimensions: 236 MM Length X 130 MM Width X 61 MM Height, Environmental Conditions: Operating Temperature: -10 To 55 DEG C, Storage Temperature: -20 To 71 DEG C, Operating Altitude: 3,000 MR, Weight: 0.65 KG, Includes: TL75 Test Leads, AC70A Test Clips, One Pair Of Stackable Test Leads, Users Manuals, CE, CSA Certified, EN 61010-1:1993, ANSI/ISA S82.01-1994, CAN/CSA C22.2 No 1010.1:1992

Categories

Overview

UPC 09596906350
Item Long Description 725 Series Multifunction Process Calibrator, Measuring Range: 30 V, 100 MIL V, -10 to 75 MIL V For DC Voltage, 24 MILAMP For DC Current, 0 - 3200 OHM For Resistance, Resolution: 0.1 DEG C, Accuracy: 0.02 PCT Plus 2 Counts For Voltage And Current, 0.1 OHM For Resistance , 0.05 PCT Plus 1 Count For Frequency, 10 PCT For Loop Power, Functions: Voltage, Current, Resistance, Frequency, Temperature For Ramp And Step, Loop Power: 24 VDC, Maximum Voltage: 30 V, Power Source: 4 AA Alkaline, Dimensions: 236 MM Length X 130 MM Width X 61 MM Height, Environmental Conditions: Operating Temperature: -10 To 55 DEG C, Storage Temperature: -20 To 71 DEG C, Operating Altitude: 3,000 MR, Weight: 0.65 KG, Includes: TL75 Test Leads, AC70A Test Clips, One Pair Of Stackable Test Leads, Users Manuals, CE, CSA Certified, EN 61010-1:1993, ANSI/ISA S82.01-1994, CAN/CSA C22.2 No 1010.1:1992
GTiN 00095969063500
Type Calibrator
Applications Measure volts, mA, RTDs, thermocouples, frequency, and ohms to test sensors and transmitters
Family Brand Name Fluke
Sub Brand Fluke
