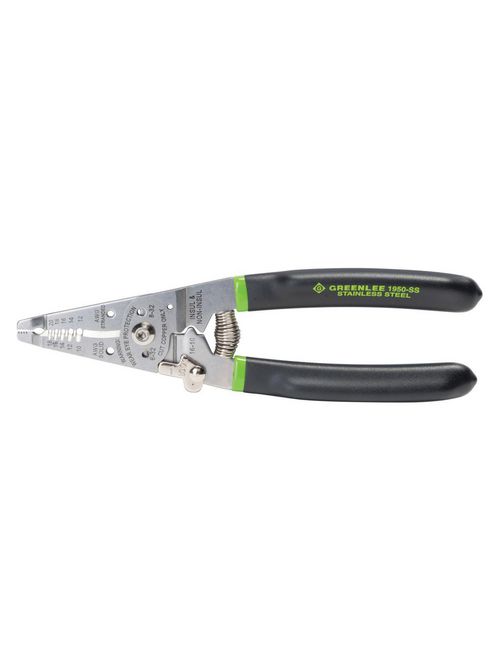

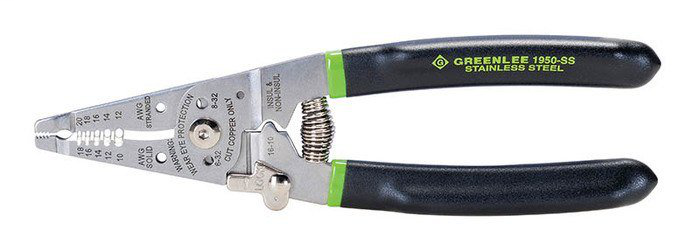

Greenlee 1950-SS 18 to 10 AWG Black Stainless Steel Spring Return Wire Stripper/Cutter/Crimper
Product image thumbnail 0
Product image thumbnail 1
$28.01/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Greenlee
Mfg Catalog # 1950-SS
North Coast Part # 1010221

Features

  • High grade stainless steel lasts 5X longer
  • Precision ground stripping holes offer easy, consistent jacket removal
  • Strips 10-18 AWG Solid and 12-20 AWG Stranded conductors
  • Cleanly shears 6 - 32 and 8 - 32 bolts
  • Crimps 16 - 10 insulated and non-insulated terminals
  • Multiple functions include plier nose, strippers, cutter, looping holes, crimper, bolt re-thread/shear and spring back with low profile lock
  • High grade knives resist chipping and marring
  • Looping holes and serrated nose for bending, pulling and shaping wires
  • Long-life spring and low-profile lock for quick, repetitive stripping and cutting
  • Vinyl cushion grip resists slipping and has an ergonomic fit

Specifications

  • Application: Stripping, Cutting and Crimping Wire Conductors
  • Capacity: 10-18 AWG Solid, 12-20 AWG Stranded
  • Finish: Laser etched and stamped feature indicators
  • Handle Type: Extended Straight Vinyl Cushoin Grip
  • Jaw Type: Plier-type nose with precision ground stripping holes and cutter
  • Material: High Grade Stainless Steel
  • Overall Length: 7.5" (195mm)
  • Package Type: Hanging Clamshell
  • Type: Manual Fixed Hole Stripper/Cutter/Crimper w/ Spring and Lock
  • Weight: 0.3oz (8.5g)

Documents

Overview

UPC 78331002241
GTiN 00783310022411
Finish Laser Etched And Stamped Feature Indicators
Type Manual Fixed Hole, Spring and Lock
Material High Grade Stainless Steel
Applications For Stripping, Cutting and Crimping Wire Conductors
Weight 0.3 oz
Handle Type Extended, Straight, Vinyl Cushion Grip
Capacity 10-18 AWG Solid, 12-20 AWG Stranded
Family Brand Name Greenlee
Overall Length 7-1/2 in
Jaw Type Plier-type nose with precision ground stripping holes and cutter
Wire Size 10-18 AWG Solid, 12-20 AWG Stranded
