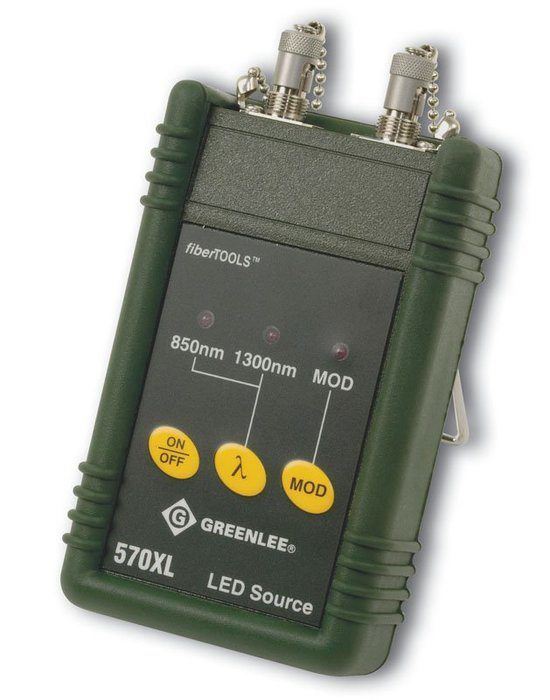

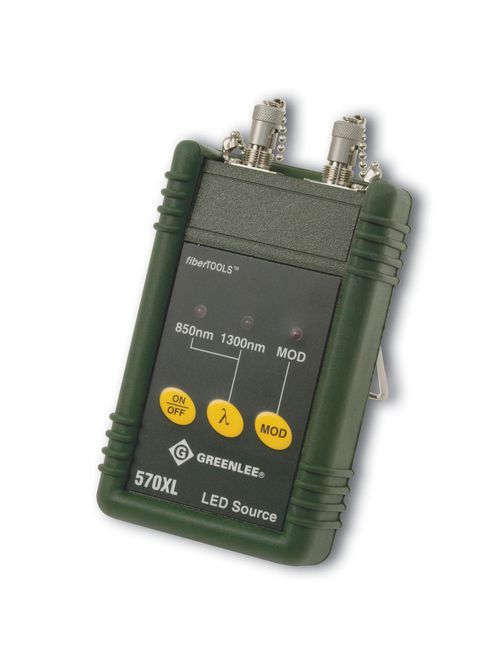

GRN 570XL-SC LED SOURCE (850/1300nm

Features

• 850/1300 nm wavelengths
• Stable calibrated output.
• Easy to use
• Continuous wave and modulated output
• Fixed connector interface FC, SC or ST
• Long battery life - approx. 80 hours
• User selectable auto shut-off
• Rugged and splash-proof
• Economically priced

Specifications

• Connector interface: FC, SC Or ST
• Dimensions: 2.800 IN (7.200 CM) X 5.600 IN (14.200 CM) X 1.400 IN (3.500 CM)
• Humidity: 0 To 95% Non-Condensing
• Max Spectral Width: 55 nm, 150 nm
• Measuring Range: 840 nm To 880 nm, 1270 nm To 1345 nm
• Modulation Frequency: 270 kHz, 1 kHz And 2 kHz
• Power Supply: Two AA Size 1.5 V Batteries
• Stability: Plus Or Minus 0.05 dB For 1 HR
• Wavelength: 850 nm Center, 1300 nm Center
• Wavelength: 850 nm Center, 1300 nm Center
• Weight: 241.000 G (8.500 OZ)

Standard

• EN61010
• EN50081-1: 1992
• EN55011, Group 1, Class A EN50082-1: 1992 IEC 801-2, -3, -4

Typical Power Output 9125

• -13 dBm, -20 dBm For 100/140 um, -13 dBm, -20 dBm For 62.5/125 um
• -14 dBm, -21 dBm For 50/125 um
