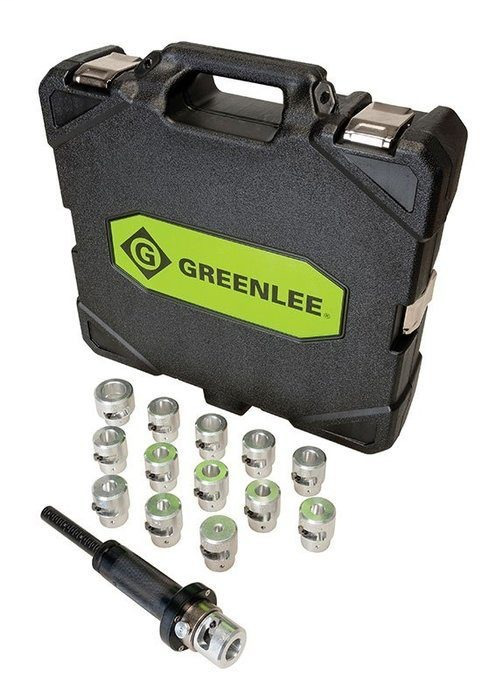

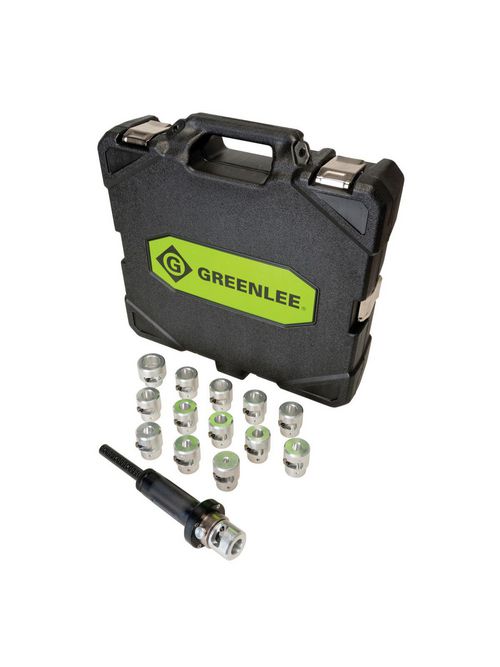

Greenlee GTS-THHN Copper Cable Stripper Bushing Kit
Product image thumbnail 0
Product image thumbnail 1
$971.70/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Greenlee
Mfg Catalog # GTS-THHN
North Coast Part # 1024989

Features

  • 14 bushing kit ranging from #6 AWG - 500 MCM THHN copper conductor
  • One way ratchet handle – allows user to maintain control of the cutback throughout the stripping process, ensuring blade does not come into contact with the conductor
  • Tension grip depth stop –Self contained 4” laser etched depth stop for precise articulation of cut back depth, no additional tools needed for depth stop set up
  • Spring loaded retention pin – Quick attachment method of cable specific bushings, no additional tools needed for bushing attachment
  • Safety factor – Replaces the need to use blades when stripping cable. Blade lacerations comprise approximately 40% of all recordable injuries on the jobsite.

Specifications

  • Application: THHN Copper Cable End Stripping
  • Capacity: THHN Copper Conductor #6 AWG - 500 MCM
  • Finish: Black Anodized
  • Handle Type: Knurled one way bearing
  • Material: Aluminum, Steel
  • Overall Length: '6.5'''' with bushing''
  • Replacement Part: GTS-RDS - Replacement Depth Stop
  • Short Description: GTS-THHN
  • Weight: 5 lbs

Overview

UPC 78331002735
GTiN 00783310027355
Finish Black Anodized
Material Aluminum,Steel
Applications THHN Copper Cable End Stripping
Weight 5 lb
Handle Type Knurled one way bearing
Capacity THHN Copper Conductor #6 AWG - 500 MCM
Family Brand Name Greenlee
Overall Length 6.5 in
