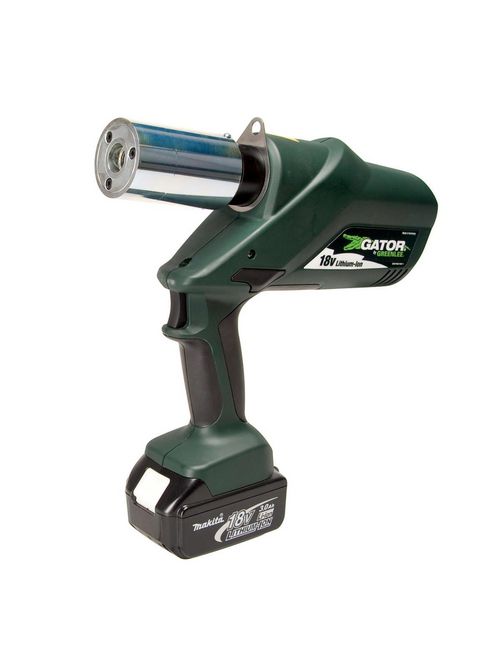

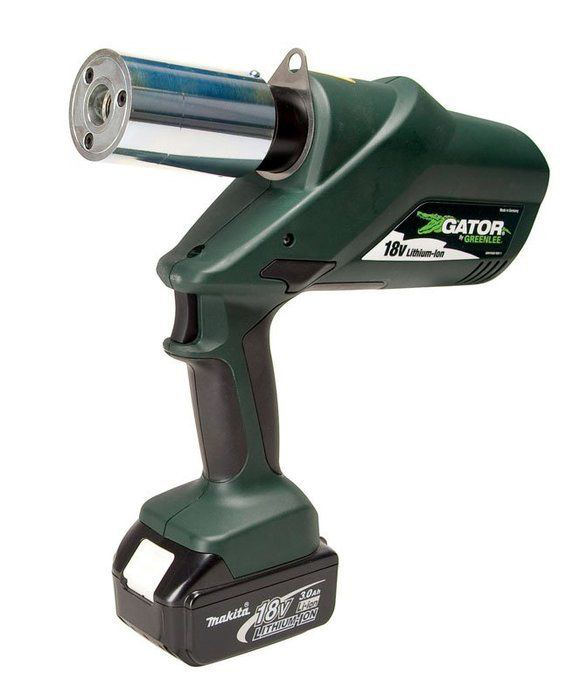

GRN LS60LA11 DRIVER, PUNCH LS60LA 1

Features

• State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times
• LED light provides the operator with the battery charge and tool maintenance status
• Forward handle position improves tool balance
• One trigger controls all tool functions
• Punching cycle stops automatically when hole is complete to prevent damage to punch
• Overmolded tacky grip areas make gripping the tool easier and more comfortable
• LED work light illuminatesdark work areas
• Greenlee battery-powered crimping tools now use bio-degradable oil
• Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life
• Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger

Specifications

• Battery: 18 V, 3.0 AMP-HR Lithium-Ion
• Battery Charge Time: 1 HR
• Charger Voltage: 120 V
• Height: 12.500 IN (318.000 MM)
• Includes: 1614SS Draw Stud 3/8" x 2-13/16", 31872 Draw Stud 3/4" x 4-1/8", 1924AA Spacer-Short, 33967 Stud Adapter 3/8", 01686 Metal Case, MKLS60 Case for LS60
• Maximum Punch Force: 6.7 TON (60 KN)
• Maximum Ram Travel: 0.870 IN (22.000 MM)
• Maximum Rectangular Punch Size: 1.378 X 2.559 IN (35.000 X 65.000 MM)
• Maximum Round Punch Size: 2.420 IN Diameter (61.500 MM)
• Maximum Square Punch Size: 2-11/16 X 2-11/16 IN (68.000 X 68.000 MM)
• Overall Length Ram Retracted: 11.500 IN (292.000 MM)
• Type: Battery Powered, Knockout Punch
• Weight: 8.800 LB (4.000 KG)
