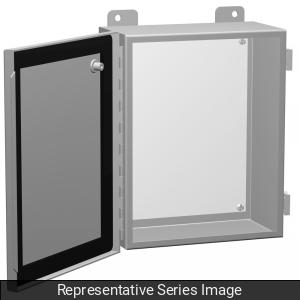

Hammond Manufacturing 1414PHE 6 x 4 x 6 Inch NEMA 12/13 Gray 16/14 Gauge Steel Enclosure with Panel
$97.68/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hammond Manufacturing
Mfg Catalog # 1414PHE
North Coast Part # 1886414

Specifications

  • Weight (lbs): 4.63
  • Height: 6
  • Width: 6
  • Depth: 4
  • Country of Origin: CA
  • Standards: csa, ul, ce
  • Panel: Included
  • IP Rating: 54
  • Type Rating: type-12, type-13
  • Web Series Alias: 1414PH
  • Product Class: 005 - 1414PH JIC W/PIANO HINGE

Certifications

  • USMCA Compliant: Yes
  • RoHS Compliant: Yes
  • REACH Compliant: Yes

Categories

Overview

UPC 62398034840
GTiN 00623980348407
Size 6.00 in x 6.00 in x 4.00 in
Color Gray
Type Gangable, Single Door, Two Lock
Material Mild Steel
Applications For Use as Instrument Enclosures, Electric, Hydraulic Or Pneumatic Control Housings, Electrical Junction Boxes or Terminal Wiring Enclosures, Provides a Degree of Protection From Falling Dirt, Dust, Oil and Water
Family Brand Name Hammond Manufacturing
Sub Brand 1414 PH Series
Width 152 mm
Depth 102 mm
Height 152 mm
Weight 4.63 lb
Country of Origin Canada
IP Rating IP54
Finish Powder Coated
Mounting Type Wall
Gauge 14/16
Cover Type Continuous Hinged
