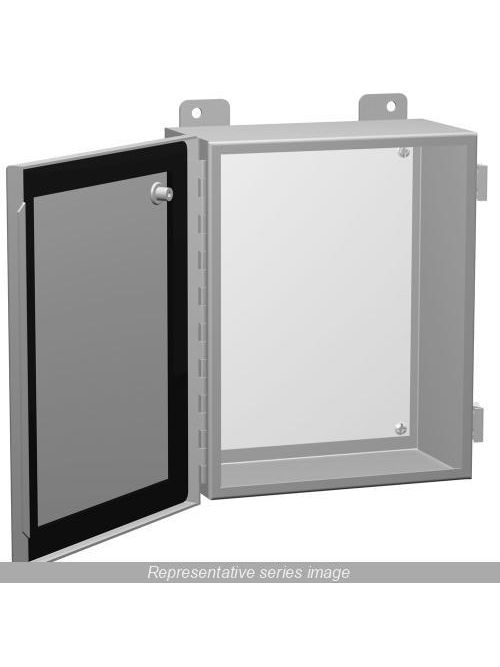

Hammond Manufacturing 1414PHH4 8 x 4 x 8 Inch NEMA 12/13 Gray 16/14 Gauge Steel Enclosure with Panel
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Hammond Manufacturing
Mfg Catalog # 1414PHH4
North Coast Part # 1886413


  • Weight (lbs): 8
  • Height: 8
  • Width: 8
  • Depth: 4
  • Country of Origin: CA
  • Standards: csa, ul, ce
  • Panel: Included
  • IP Rating: 54
  • Type Rating: type-12, type-13
  • Web Series Alias: 1414PH
  • Product Class: 005 - 1414PH JIC W/PIANO HINGE


  • USMCA Compliant: Yes
  • RoHS Compliant: Yes
  • REACH Compliant: Yes


UPC 62398034930
Item Long Description N12 J Box, Hinge Cover w/panel - 8 x 8 x 4 - Steel/Gray
GTiN 00623980349305
Size 8.00 in x 8.00 in x 4.00 in
Color Gray
Type Gangable, Single Door, Two Lock
Material Mild Steel
Applications For Use as Instrument Enclosures, Electric, Hydraulic Or Pneumatic Control Housings, Electrical Junction Boxes or Terminal Wiring Enclosures, Provides a Degree of Protection From Falling Dirt, Dust, Oil and Water
Family Brand Name Hammond Manufacturing
Sub Brand 1414 PH Series
Width 203 mm
Depth 102 mm
Height 203 mm
Weight 8 lb
Country of Origin Canada
IP Rating IP54
Finish Powder Coated
Mounting Type Wall
Gauge 14/16
Cover Type Continuous Hinged
